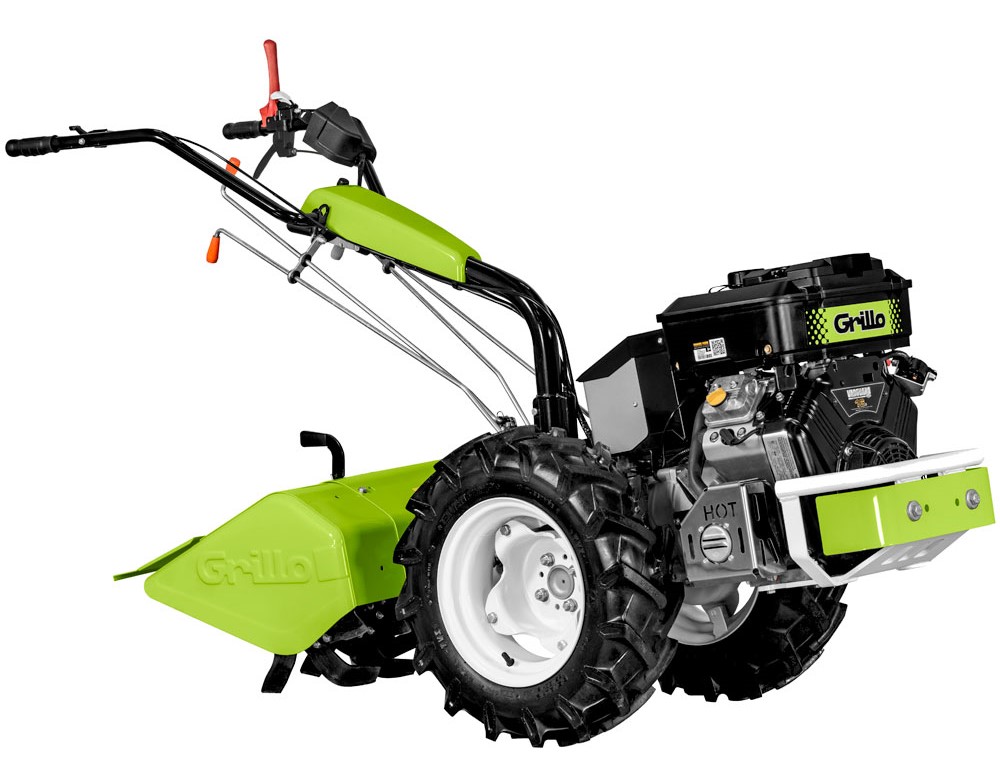

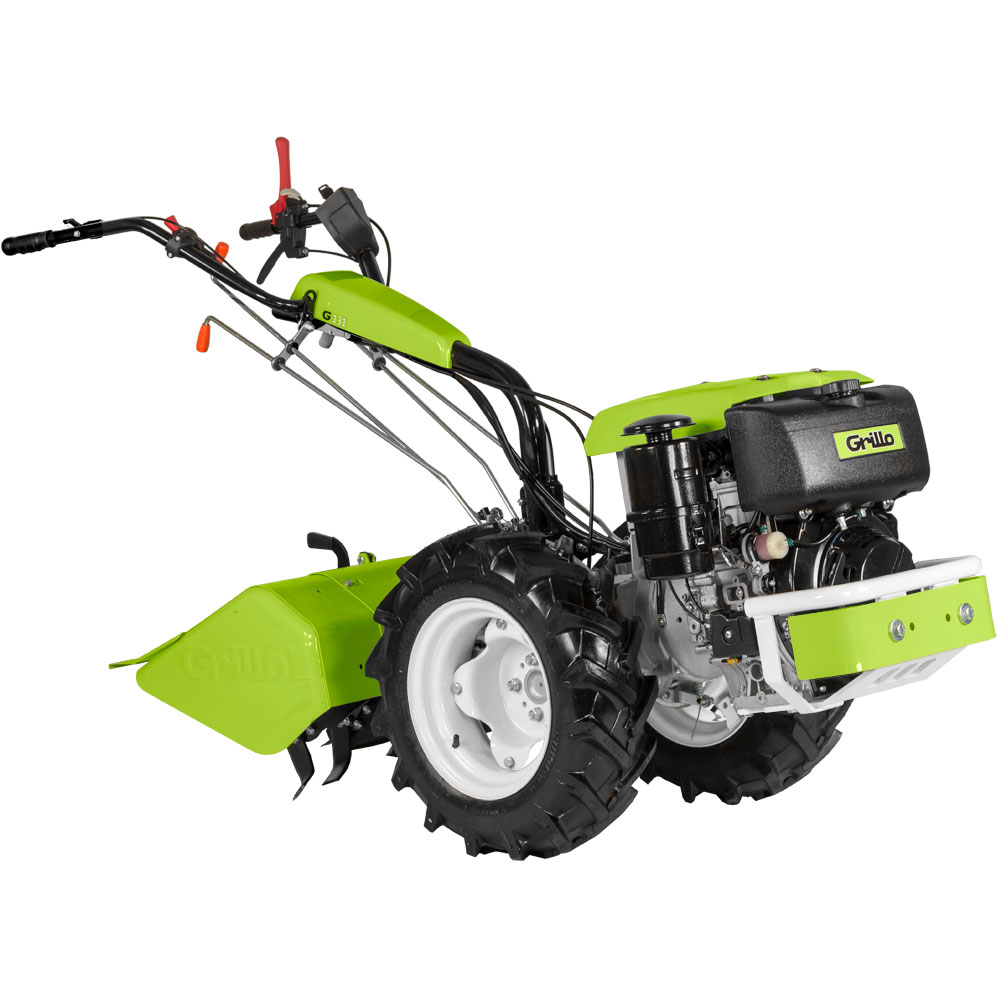

G 131 - G131 BC
Strength and outstanding performance!

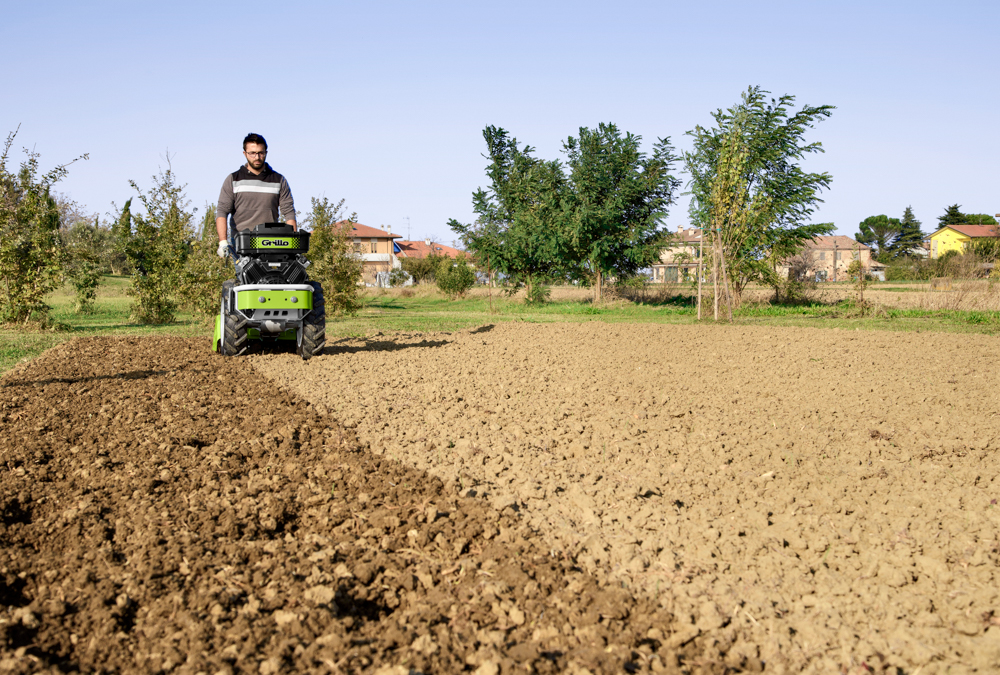

The G 131 is an ideal walking tractor for working in large areas in agriculture, horticulture, and in vegetable gardens.
It is a well-balanced machine, fitted with a 6-speed gearbox in oil-bath with 4 forward gears + 2 reverse gears.
Due to the possibility to reverse the handlebar, several front and rear implements can be mounted to this machine, such as: rotary tiller, sickle bar, all purpose flail, snow thrower, power harrow etc.
They can be connected via a flanged coupling. An optional plough kit containing large wheels, wheel extensions, turn-wrest plough and wheel weights.
To make transport easier when the engine is turned off, you can disengage the wheel axle.
A greater stability can be achieved by widening the wheel track from 12 to 24 cm using the appropriate Grillo wheel extensions.
|
Engine |
Briggs & Stratton 16 Vanguard V-Twin OHV Start electric, with 12 V battery Supply fuel Displacement 479 cc, 2 Cylinders Power 14 HP (10.3 kW) - Gross power 16 HP Air cooled Dry air filter with interchangeable filter cartridges |
| Engine |
Kohler KD15 440 Start recoil starter and electric with 12V battery Supply diesel Displacement 441 cc, 1 Cylinder Power 11 HP (8.1 kW) Air cooled Oil bath air filter |
|
|
Fuel tank capacity | 8.5 L (Vanguard 16) - 5 L. (KD15 440) |
|
Transmission | with oil bath gears |
| Gearbox | With clutch engagement. The walking tractor version has 4 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears | |
| Clutch | single dry disc with manual control | |
|
Standard rotary tiller | Adjustable rotary tiller with x 4 tines Working width 700 mm |
| Hoes system diametre | 32 cm (tiller x 4) - 36 cm (tiller x 6) | |
| Working width | Adjustable at 550 and 700 mm (850 mm with extension kit cod. 930312) | |
| Working depth | 18 cm | |
| Item no. standard rotary tiller | 989011 | |
| P.T.O. | a higher one (upon request) synchronised with the gearbox; one lower at 1028 rpm in clockwise rotation with engine at 3000 rpm | |
|
Differential locking | Differential with locking device by lever on the handlebar |
|
Available tyres | Tractor 5.00-12 wheels (adjustable disks) and 6.5/80-12 wheels (adjustable disks). Wide steel wheels having diametre 46 x 12 cm |
| Speed | In the walking tractor version with 5.00-12 wheels 1st gear 1,2 km/h, 2nd gear 2,4 km/h, 3rd gear 3,4 km/h, 4th gear 7,1 km/h, 1st reverse gear 1,7 km/h, 2nd reverse gear 3,5 km/h. In the sickle bar version with 5.00-12 wheels 1st gear 1,7 km/h, 2nd gear 3,5 km/h , 1st reverse gear 1,2 km/h, 2nd reverse gear 2,4 km/h | |

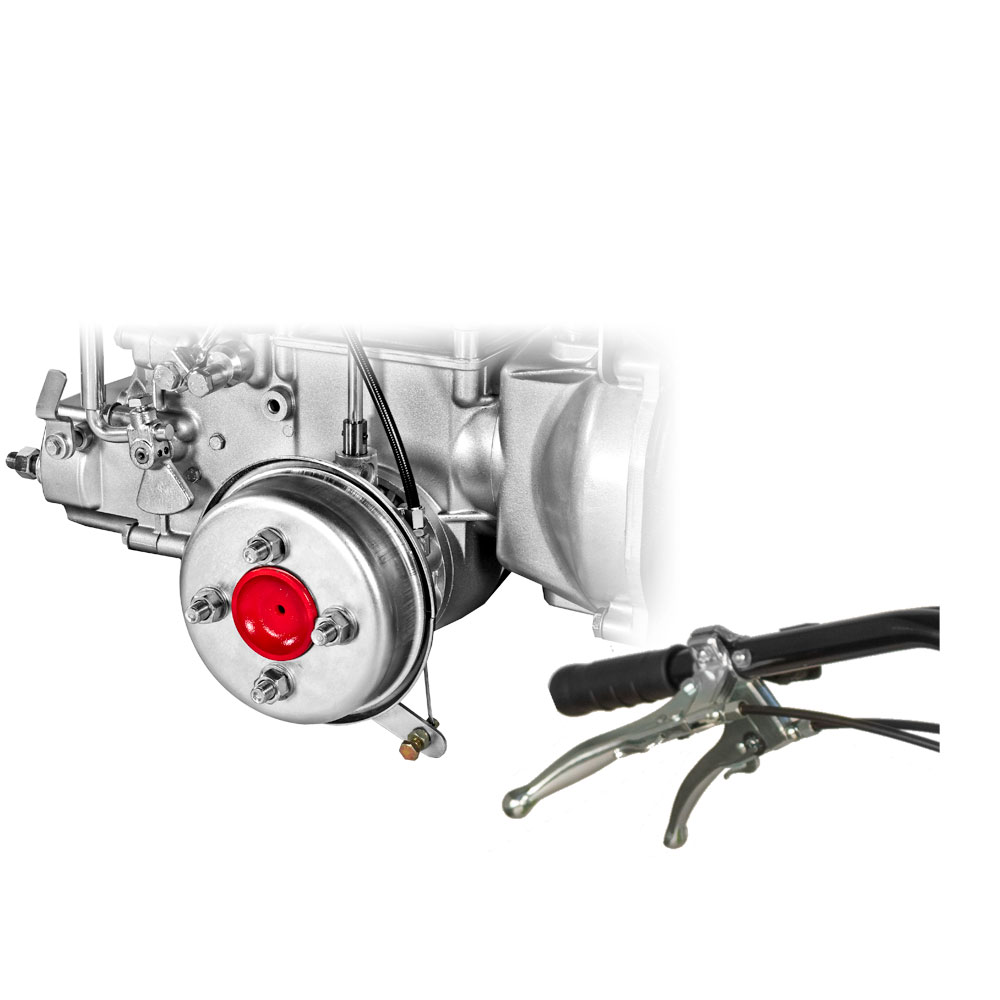

| Service brake | Brake drum (kit upon request cod. 978611) | |
| Handlebar | height and side adjustment, reversible | |
|
External sizes of the wheels | 55, 60, 70 or 75 cm with 5.00-12 wheels |
|
Weight | 195 kg (with Vanguard 16) - 192 kg (with KD15 440) |
Pneumatic tractor wheels 5.00-12 (adjustable disks) for plough (pair)
![Pair pneumatic "Tractor" wheels 5.00-12 [adjustable discs] - COD. 902512](/data/img_prodotti/A638.jpg "Pair pneumatic \"Tractor\" wheels 5.00-12 [adjustable discs] - COD. 902512")
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 902512
weight: 25 kg

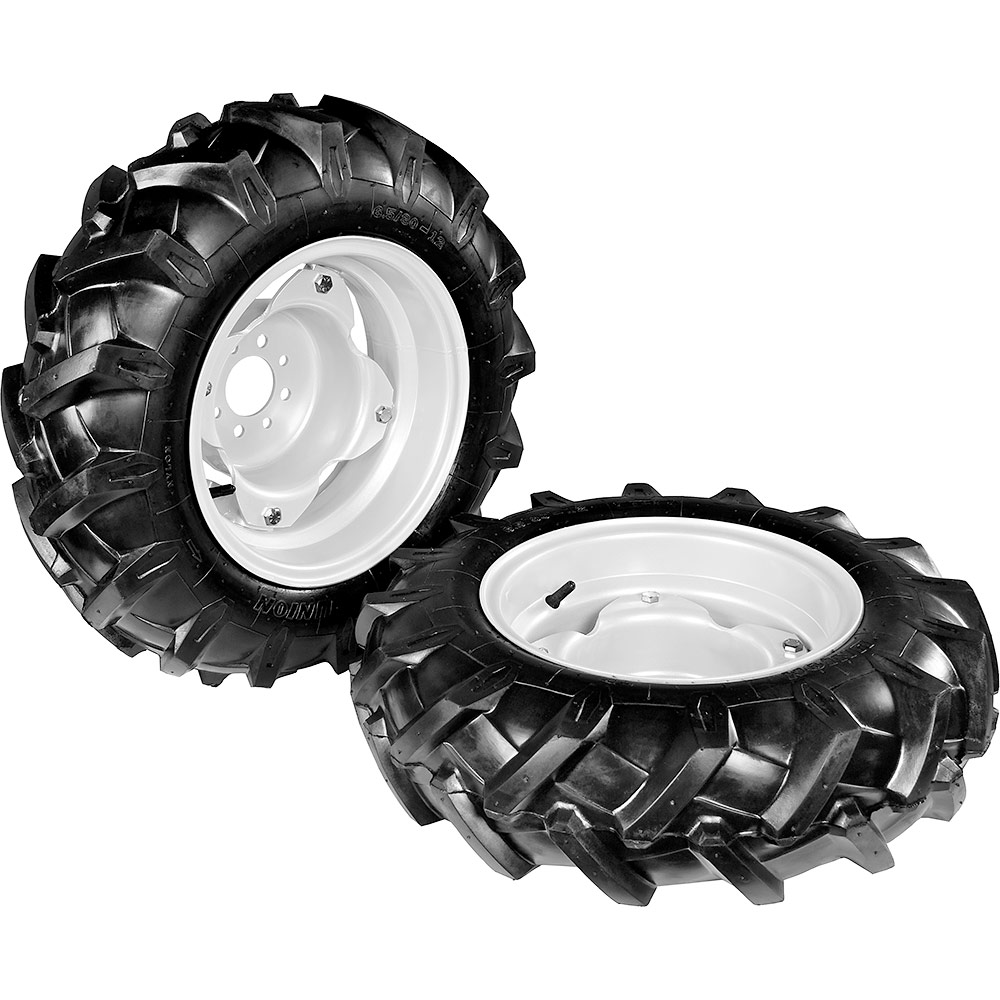

Pneumatic tractor wheels 6.5/80-12 (adjustable disks) pair
to be applied on G 131 - G131 BC
item no.: 901212
weight: 28 kg

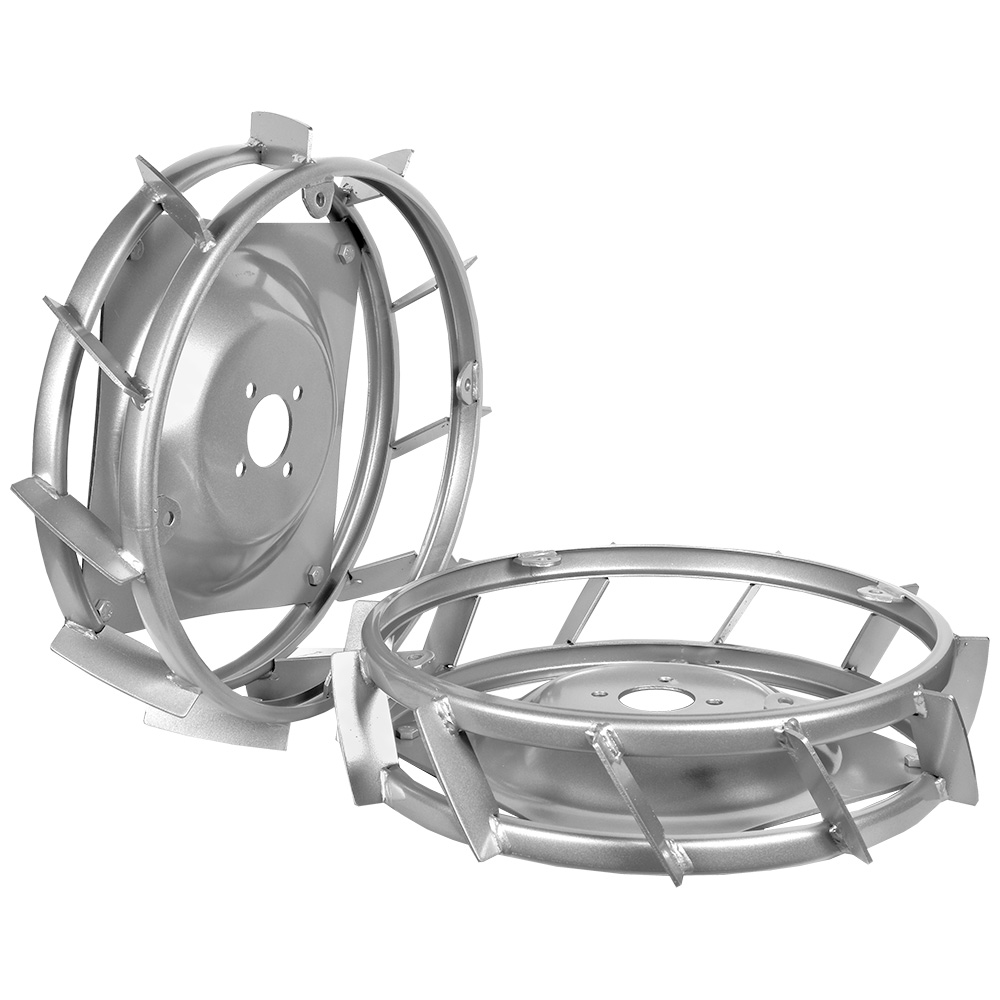

Wide steel wheels Ø 46 x 12 cm (pair)
to be applied on G 131 - G131 BC
item no.: 922212
weight: 21 kg

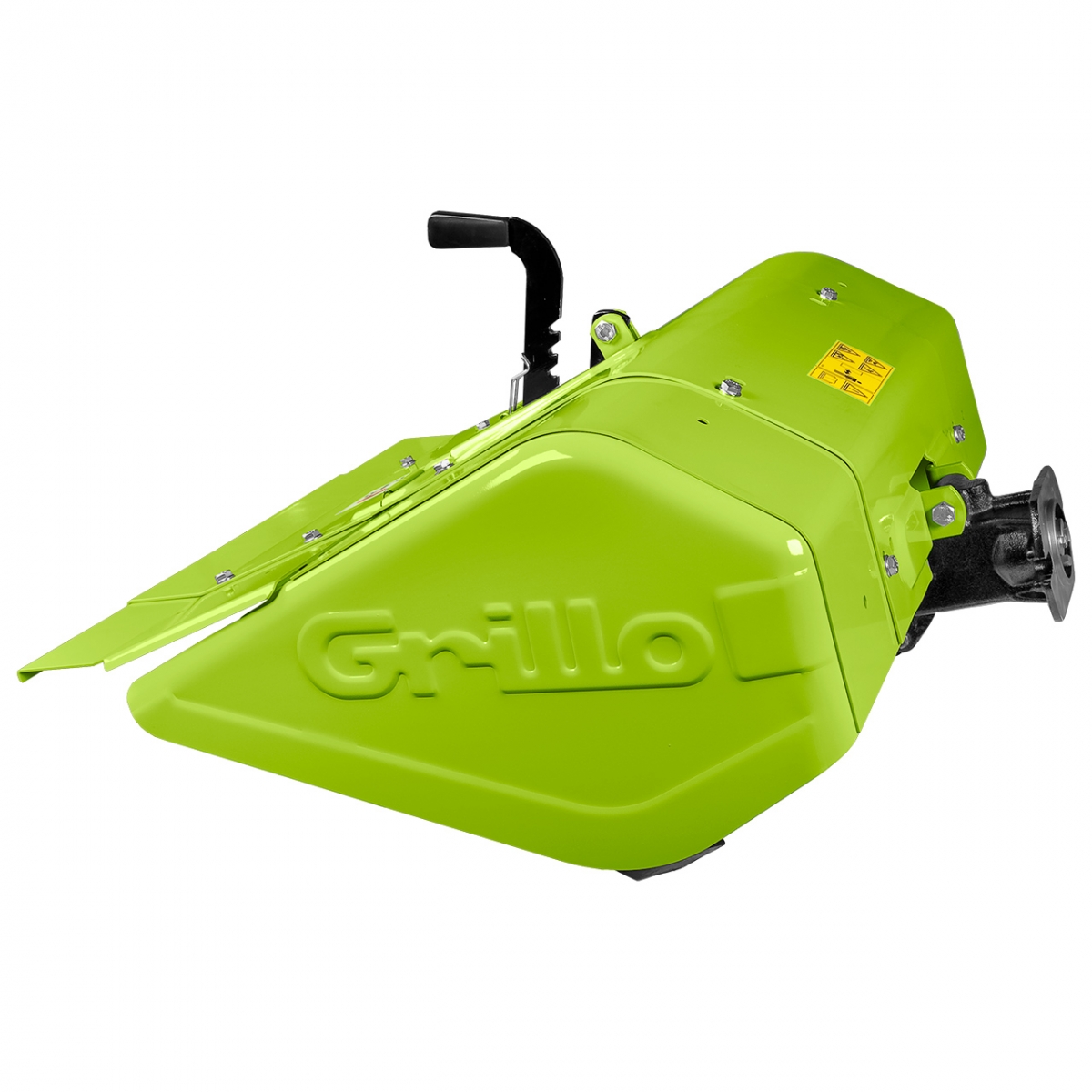

Adjustable rotary tiller 70 cm (x4 tines)
![Adjustable rotary tiller 70 cm [x4 tines] - COD. 989011](/data/img_prodotti/A329.jpg "Adjustable rotary tiller 70 cm [x4 tines] - COD. 989011")
to be applied on G 131 - G131 BC
item no.: 989011
weight: 50 kg

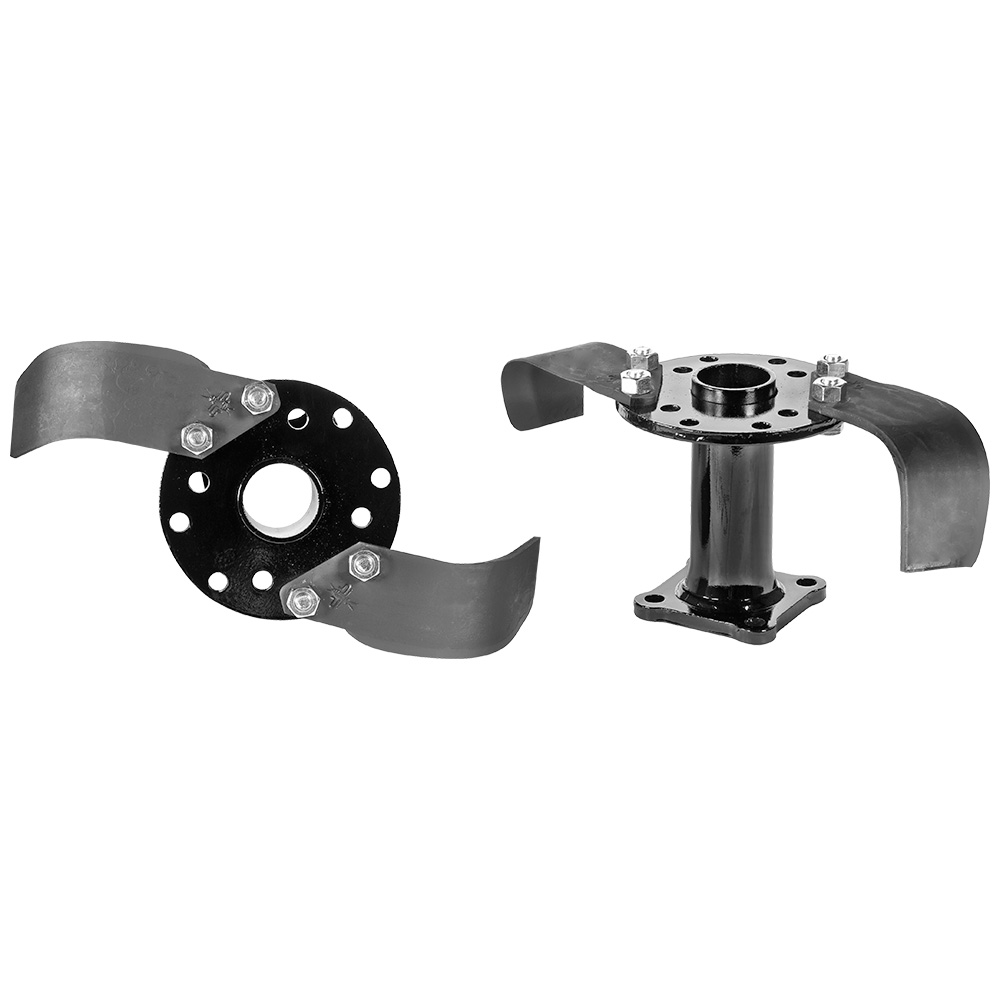

Rotary tiller extension cod. 989011 to 85 cm
to be applied on G 131 - G131 BC
item no.: 930312
weight: 5 kg

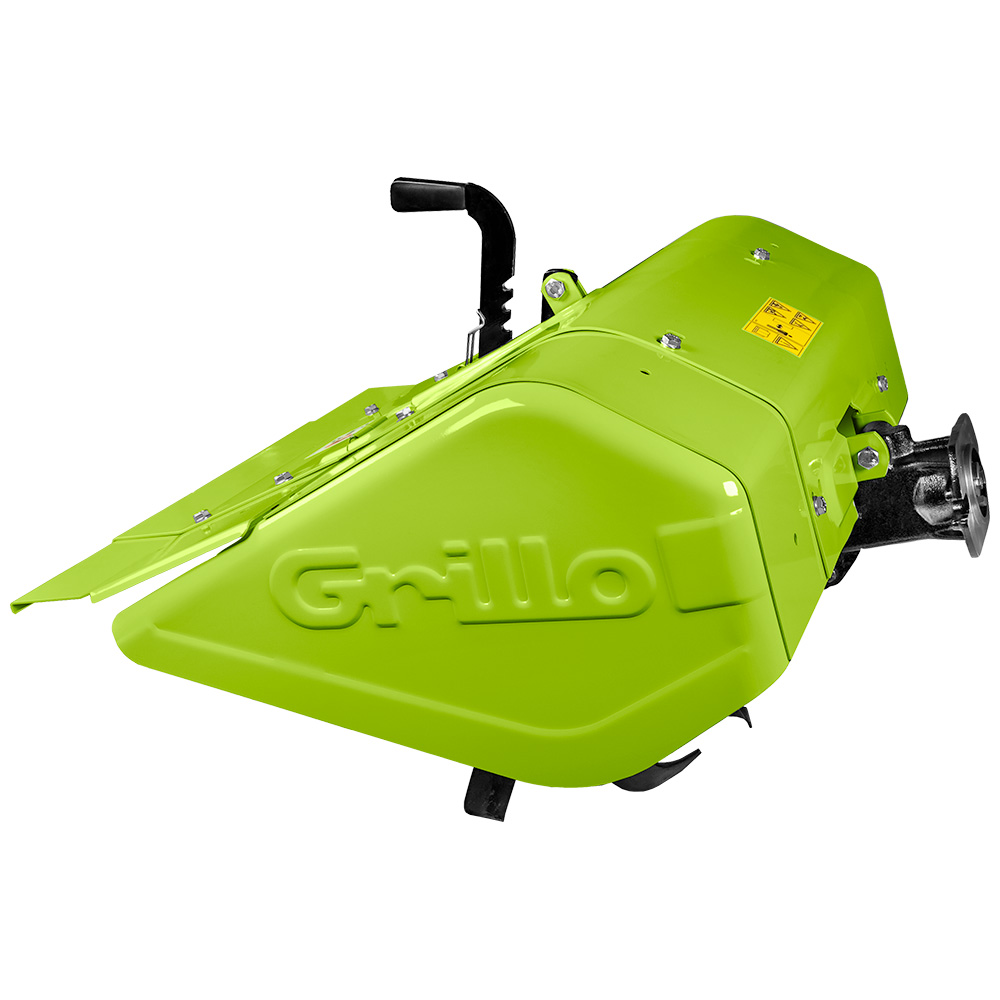

Adjustable rotary tiller 70 cm (x 6 tines)
![Adjustable rotary tiller 70 cm [X6 tines] - COD. 989111](/data/img_prodotti/A380.jpg "Adjustable rotary tiller 70 cm [X6 tines] - COD. 989111")
to be applied on G 131 - G131 BC
item no.: 989111
weight: 54 kg
Rotary tiller extension cod. 989111 to 70 cm
to be applied on G 131 - G131 BC
item no.: 930212
weight: 7 kg
Rotary tiller support wheel
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO
item no.: 9C7012
weight: 2 kg

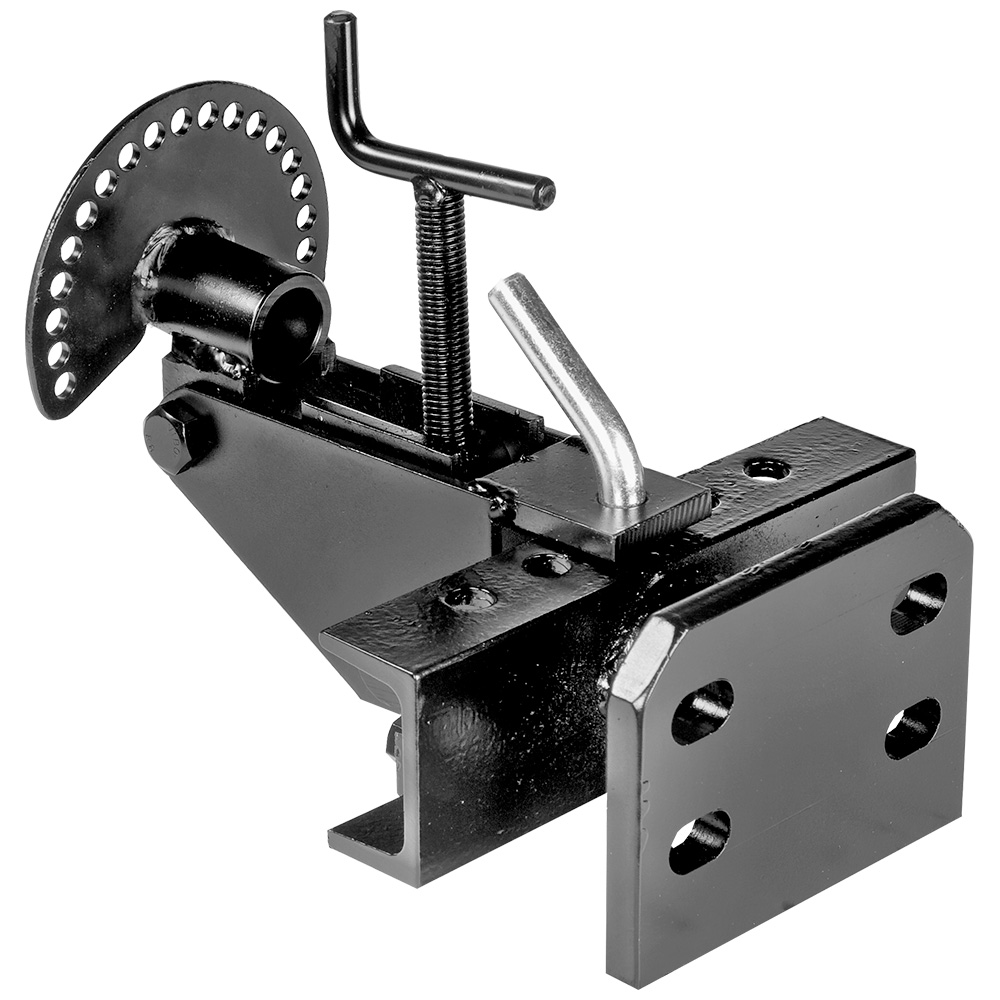

Frame for attachments
to be applied on G 131 - G131 BC
item no.: 948522
weight: 10 kg

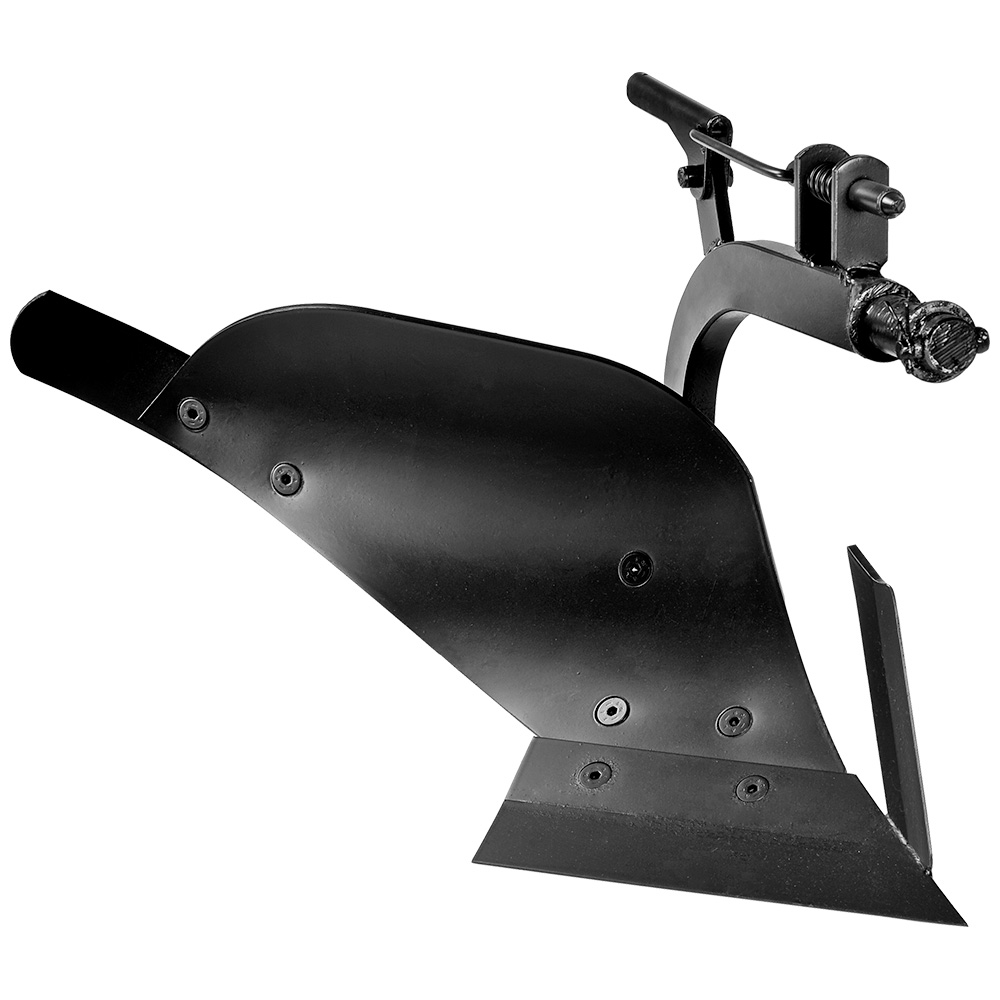

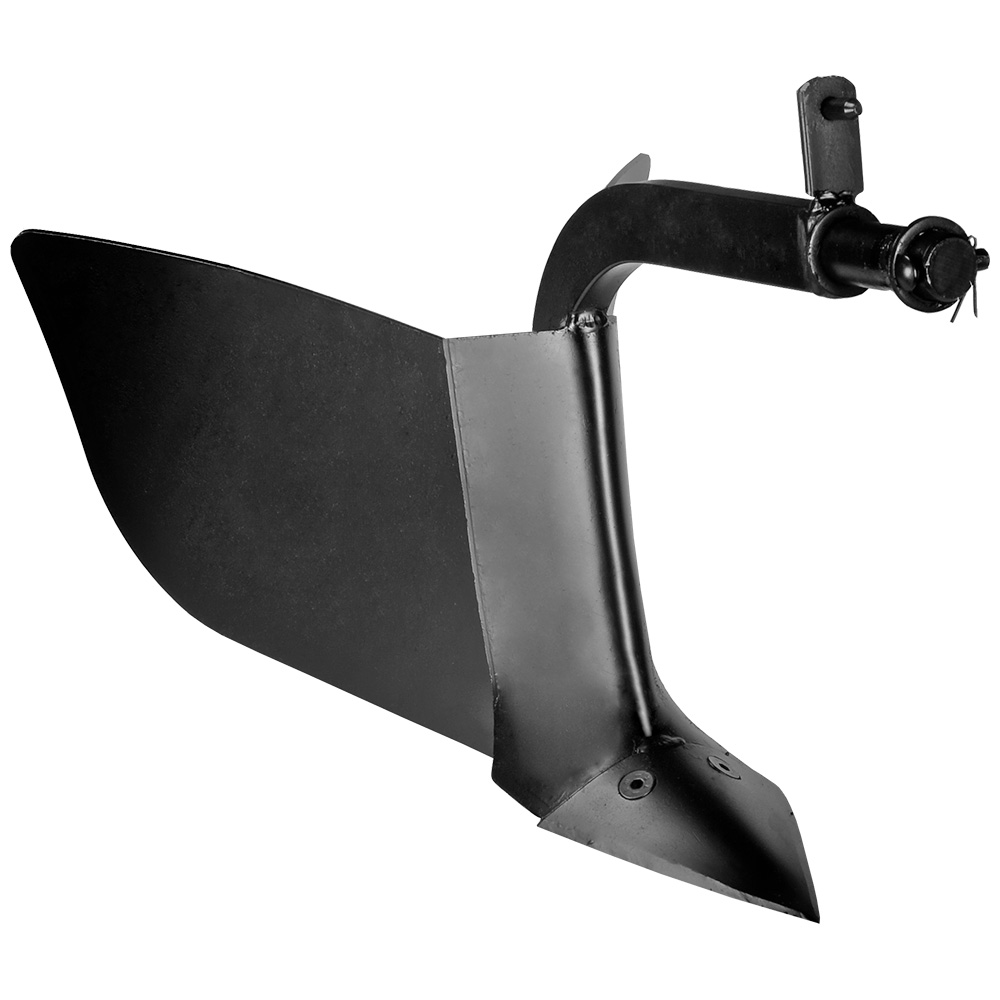

Single furrow plough (item 948522 needed; pnumatic wheels 6.50-80/12 and weights are recommended)
to be applied on G 131 - G131 BC
item no.: 945822
weight: 13 kg

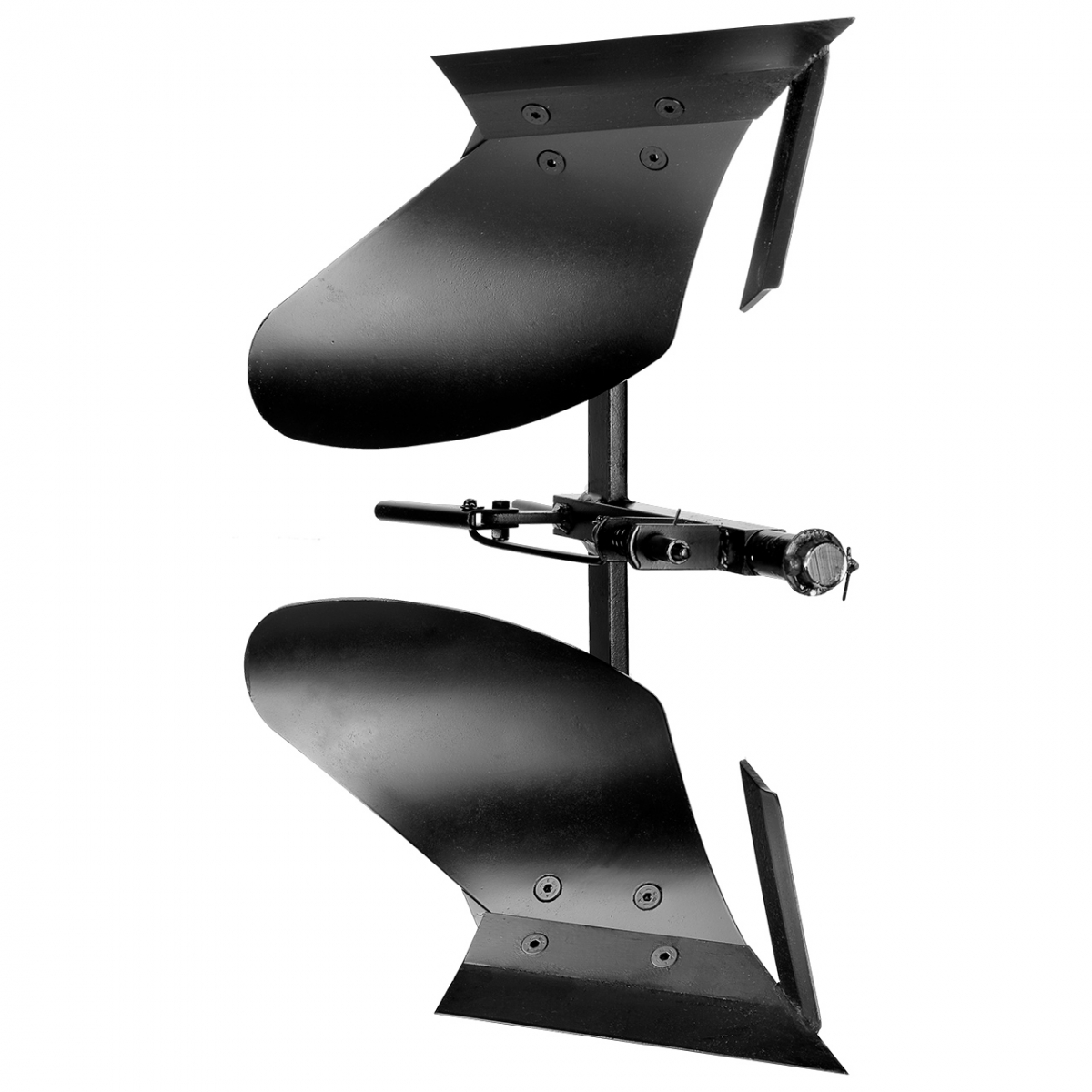

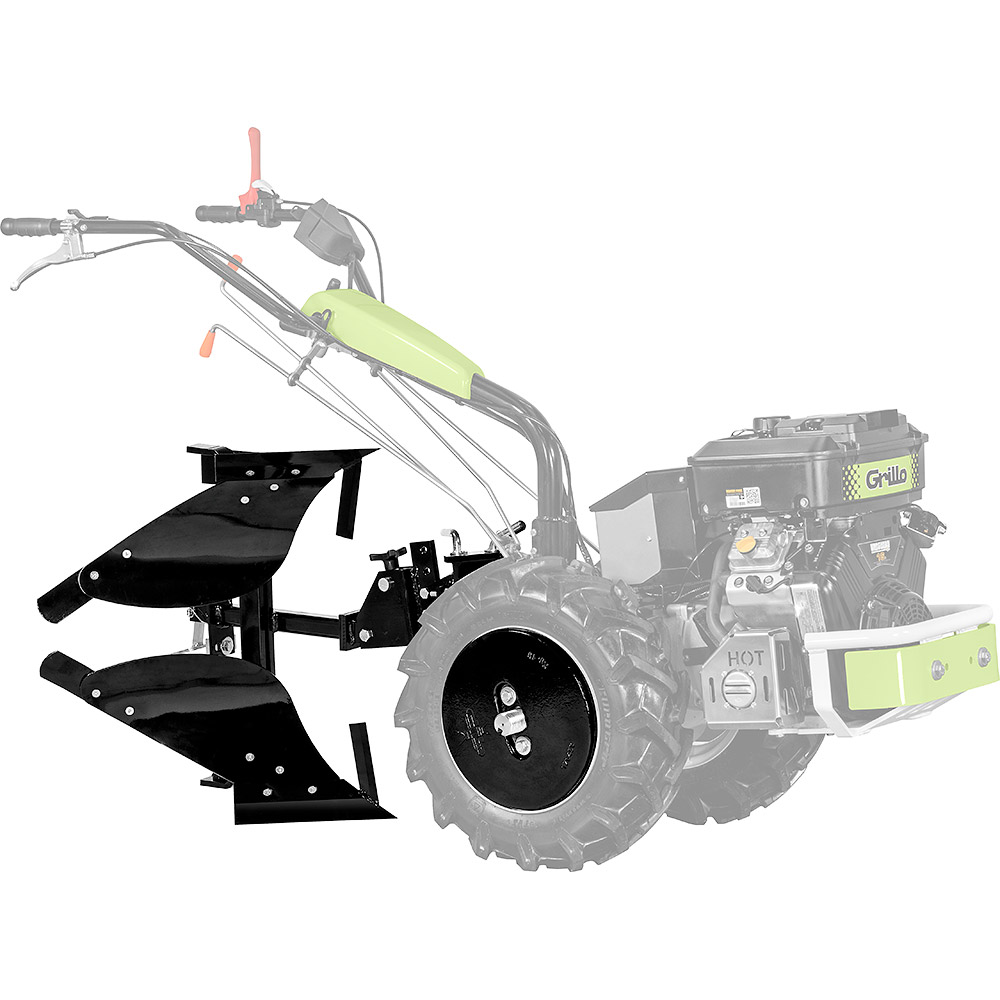

Turn-wrest plough 180°
to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 943222
weight: 21 kg
on motorhoes item no. 950522 needed;
on walking tractors item no. 945322 needed; we recommend 5.00-12 wheels and wheel weights

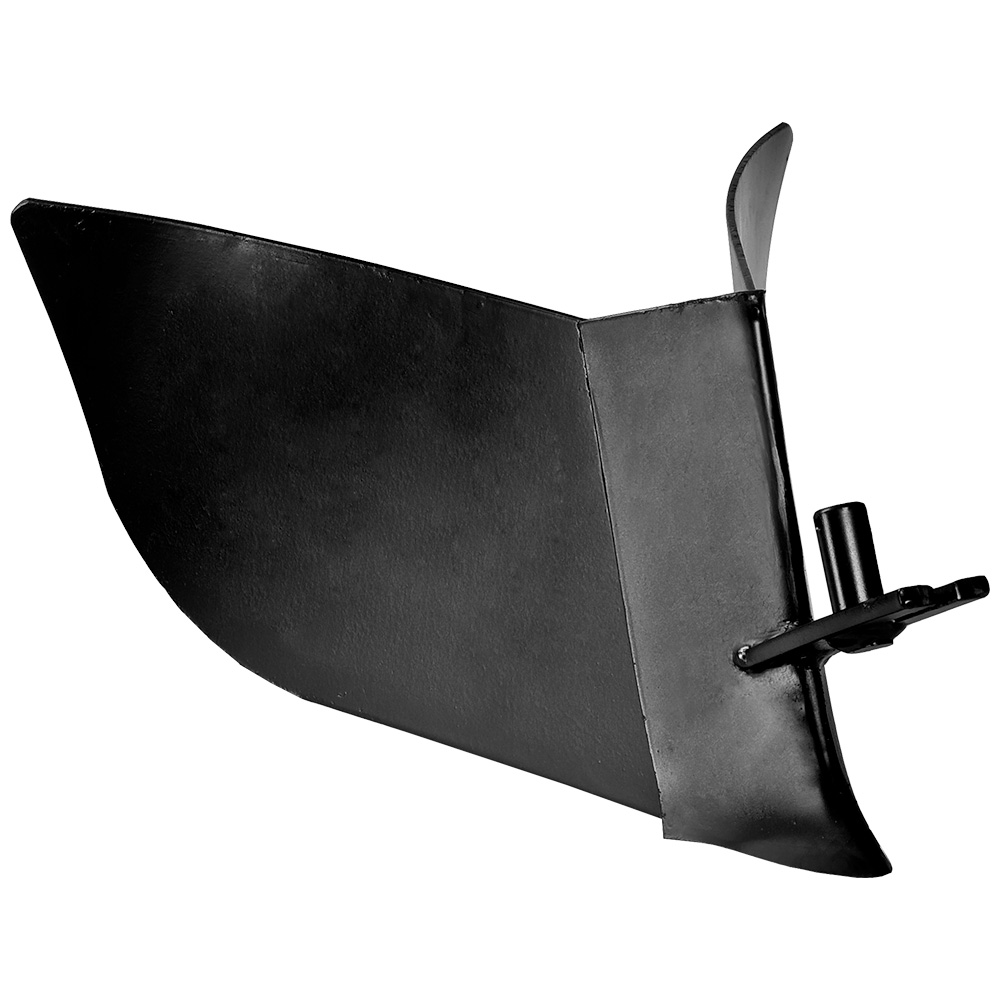

Adjustable furrower (item no. 945322 needed, 5.00-12 tyres and wheel weights recommended)
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 944122
weight: 12 kg

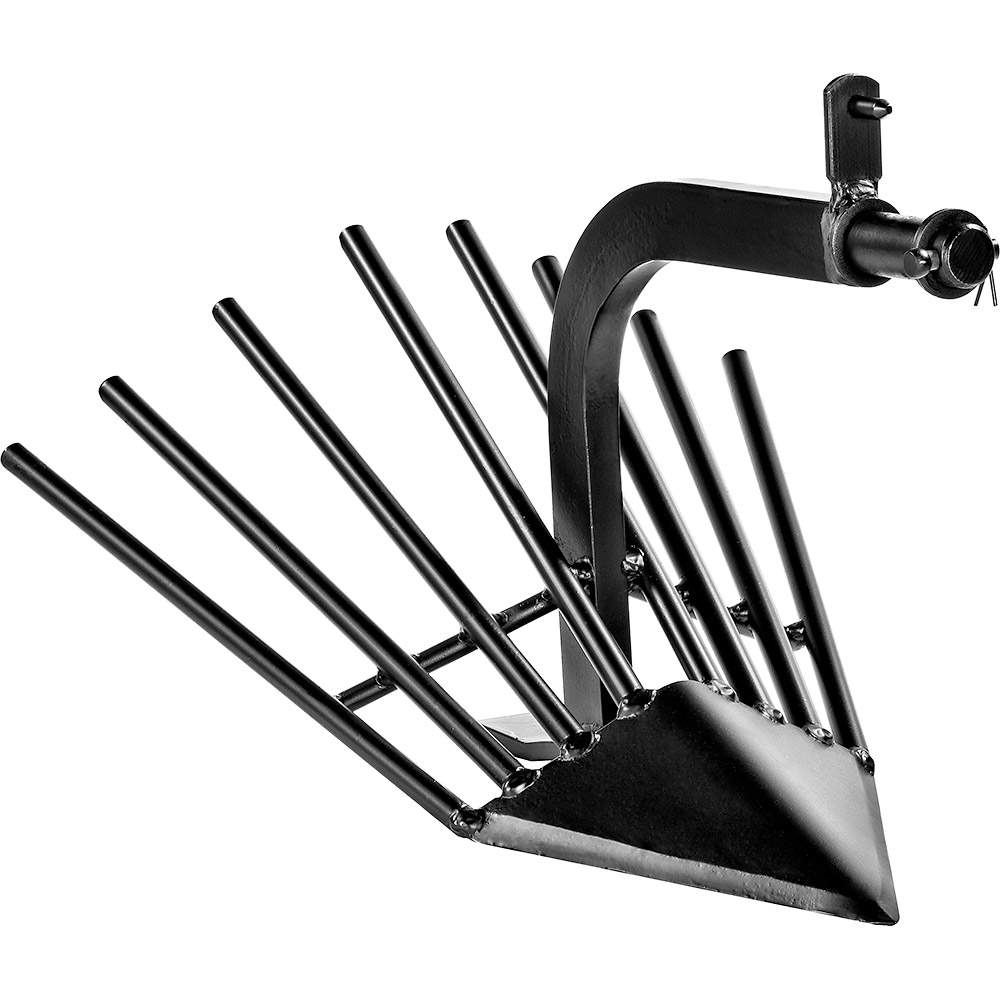

Potato lifter
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 9E6822
weight: 11 kg
Fitted on the back, enables the process of quickly harvesting small crops of root vegetables such as potatoes.
If applied on G85 - G85d - G107d - G108 - G110: item code 945322 needed, 5.00-12 tyres and wheels weights are suggested.
If applied on G131: item code 948522 needed, 6.50/80-12 tyres and and wheels weights code 9G2512 are suggested.

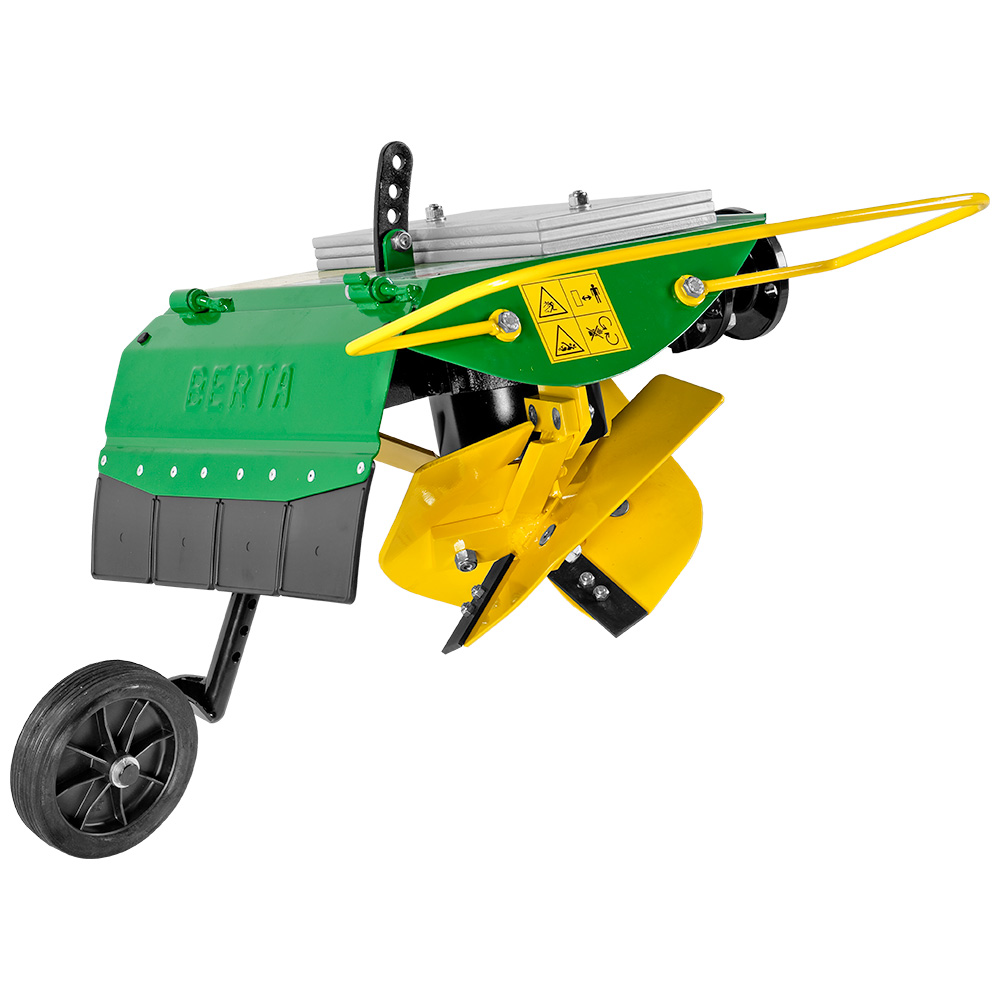

Adjustable furrower behind the rotary tiller
to be applied on G 131 - G131 BC
item no.: 945122
weight: 8 kg

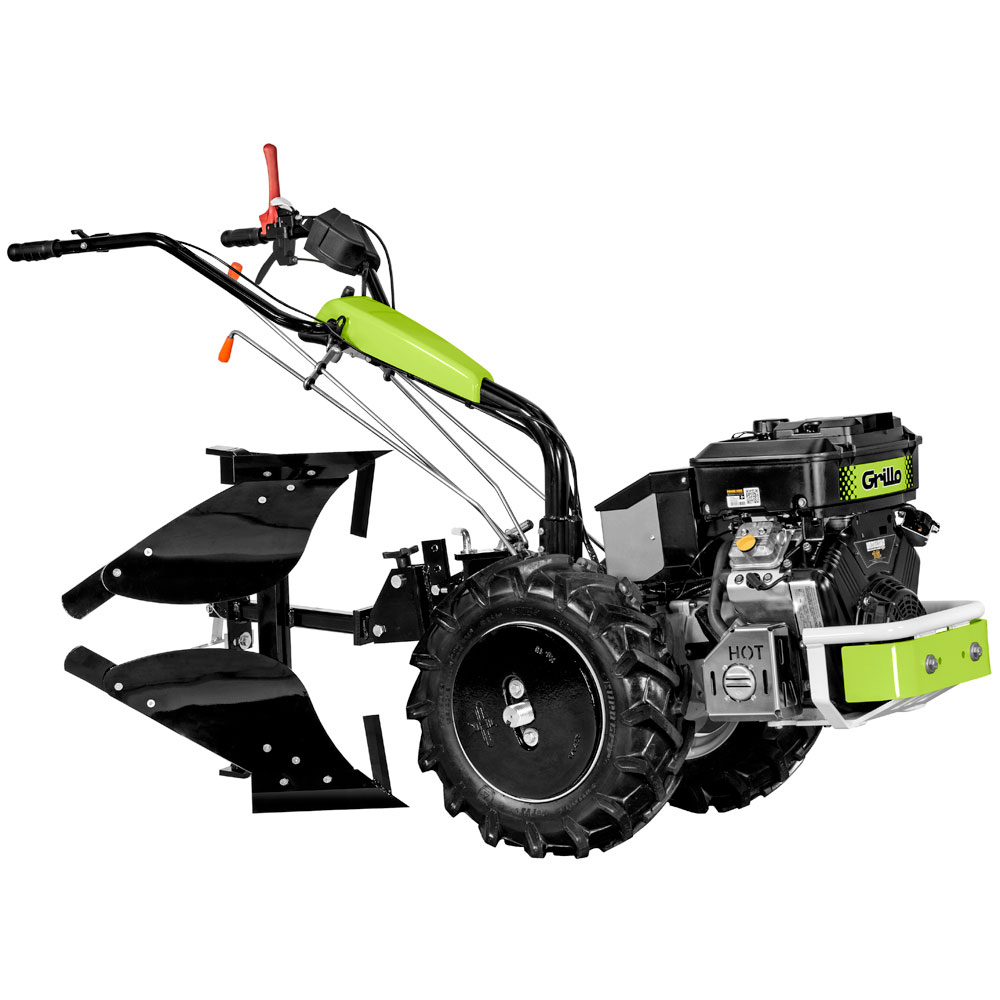

Plough kit for G 131
to be applied on G 131 - G131 BC
item no.: 950911
weight: 68 kg
Only with 5.00-12 wheels cod.902512 and flange cod.9A3211.
It includes turn-wrest plough 180°, frame for attachments, wheel weights, wheel extensions.

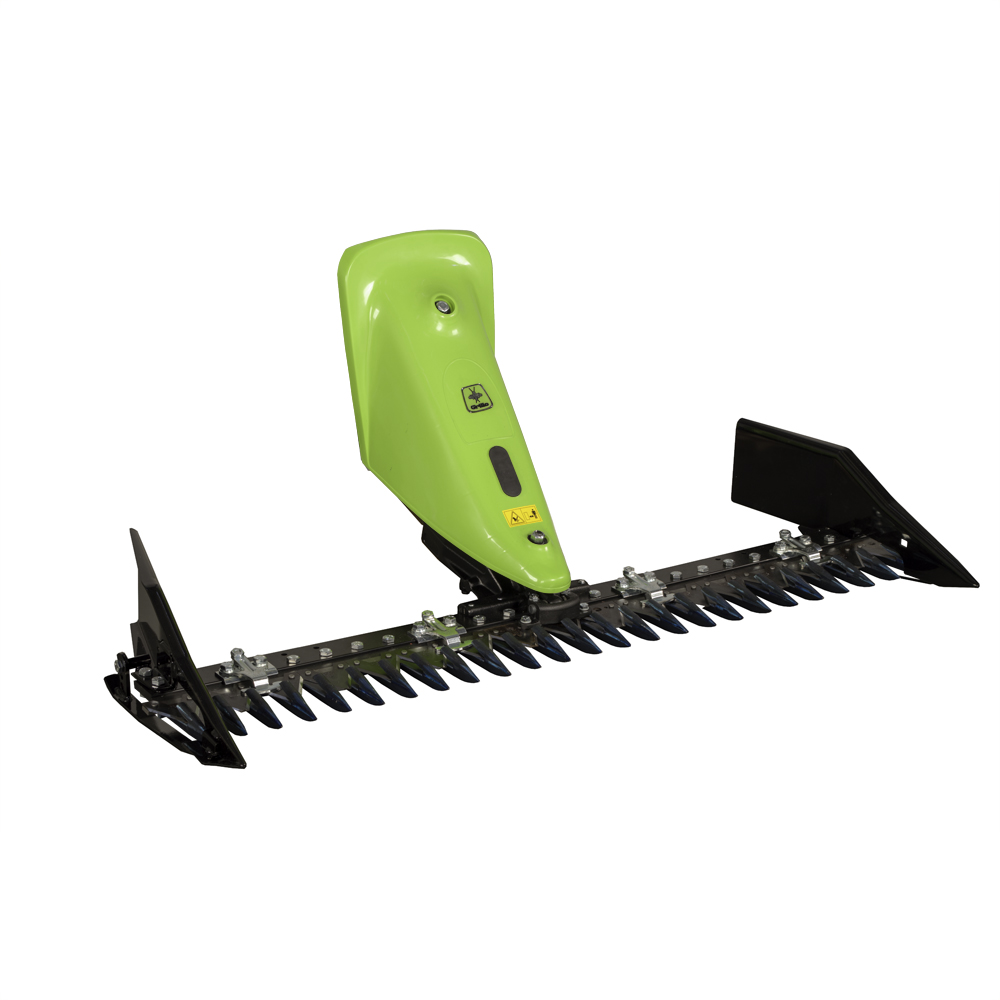

127 cm, middle-cut finger cutter bar with oil bath action
to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 9M7311 997811
weight: 47 kg
To fit the cutter bar code 9M7311 (127 cm) on the G131BC it is necessary the kit 9C2012 (18 cm extension and levers)
to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 9M6911 997811
weight: 42 kg

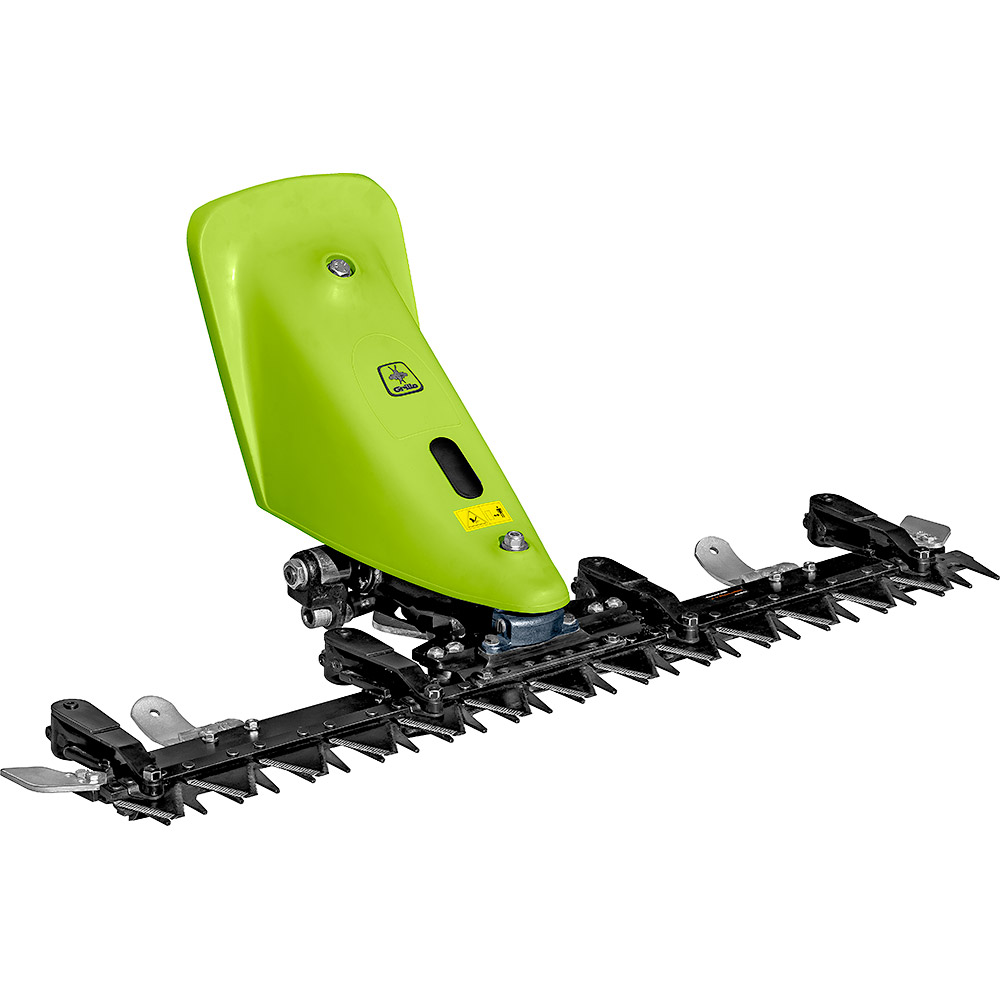

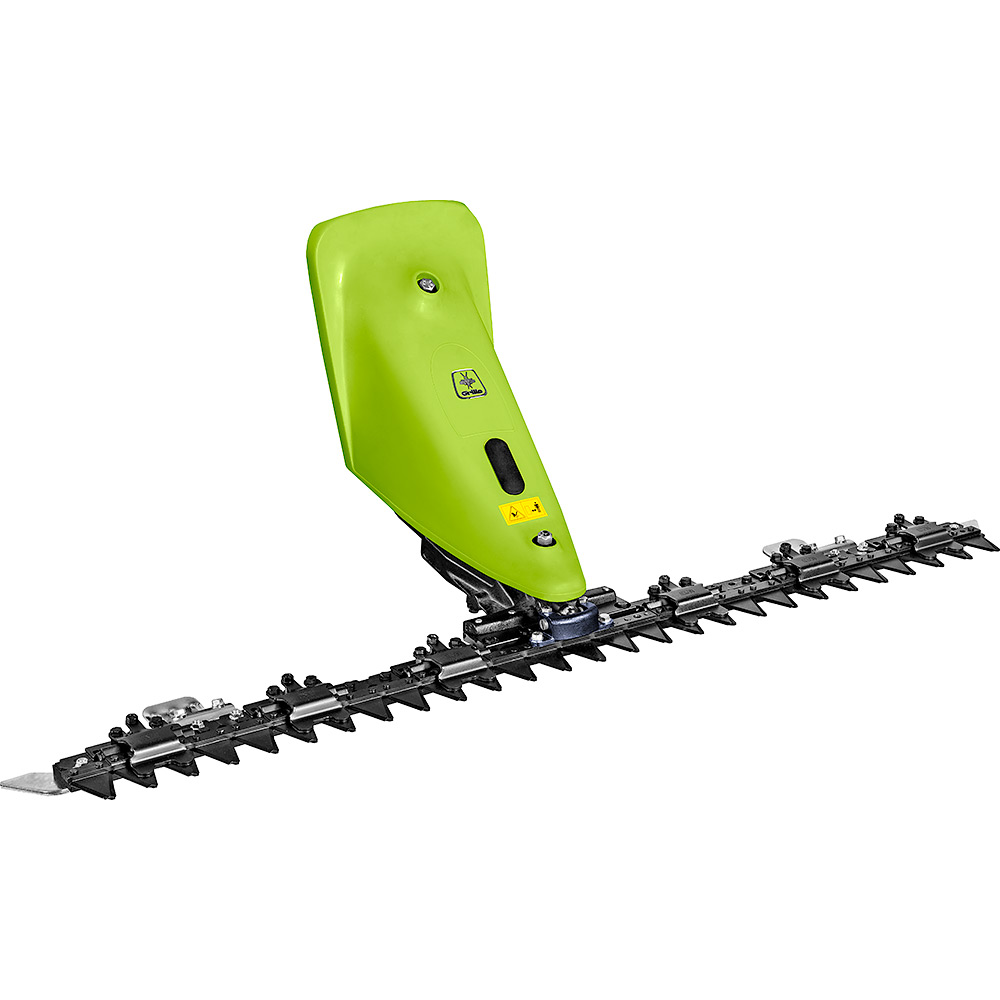

132 cm professional double cutting-bar with oil-bath movement
to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 996011 999011
weight: 52 kg
132 cm professional double cutting-bar with oil-bath movement and self-regulating elastic hold-down clamps (Busatis Austria System)

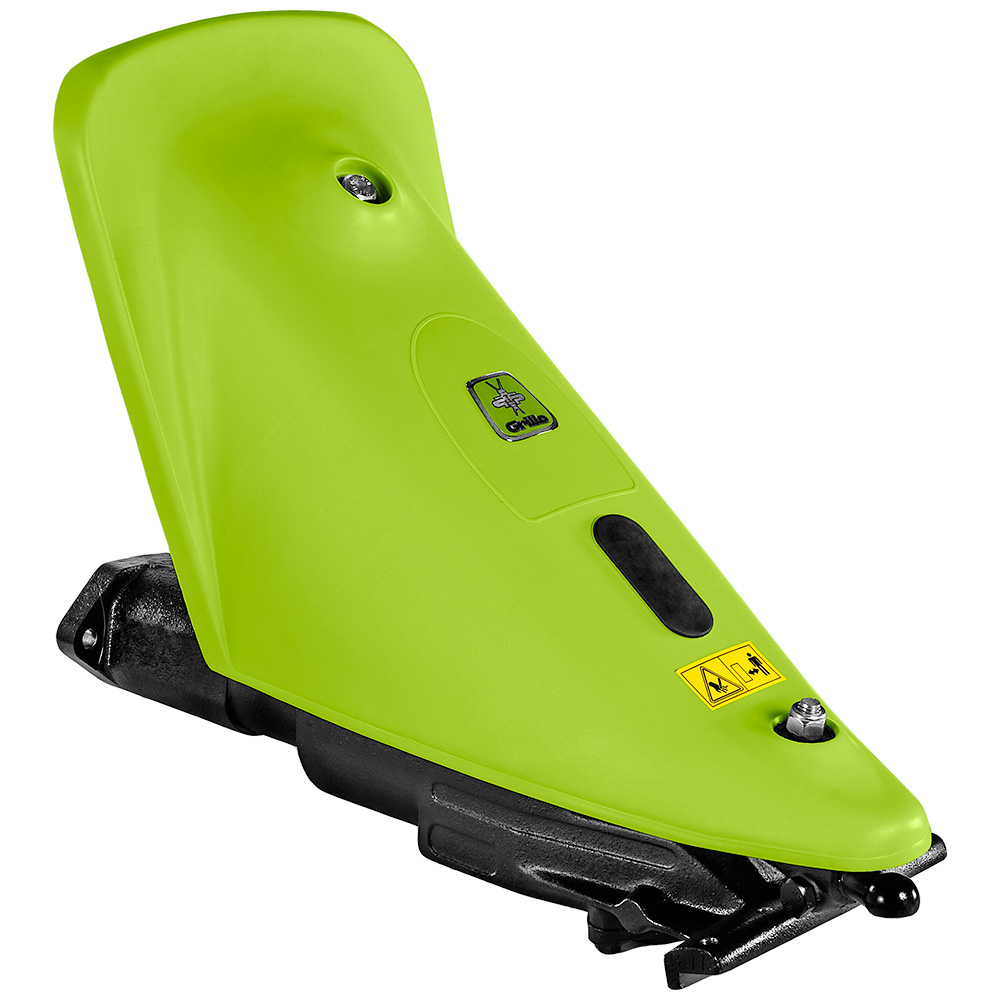

Cutter bar oil bath action
to be applied on G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 997811
weight: 22 kg
to be applied on G 131 - G131 BC
item no.: 9C2012
weight: 5 kg
Tipping towed trailer 150x110 cm with brakes
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 9D0321
weight: 150 kg
on walking tractors G 55, G 85, G85d and G 107d cod. 9F4212 needed
on walking tractors G 131 cod. 9F4712 needed
Transport Sulky with brake
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 943411
weight: 36 kg
Item 9F4212 needed for G55, G85, G107, G108 and G110.
Item 9F4712 needed for G131BC.

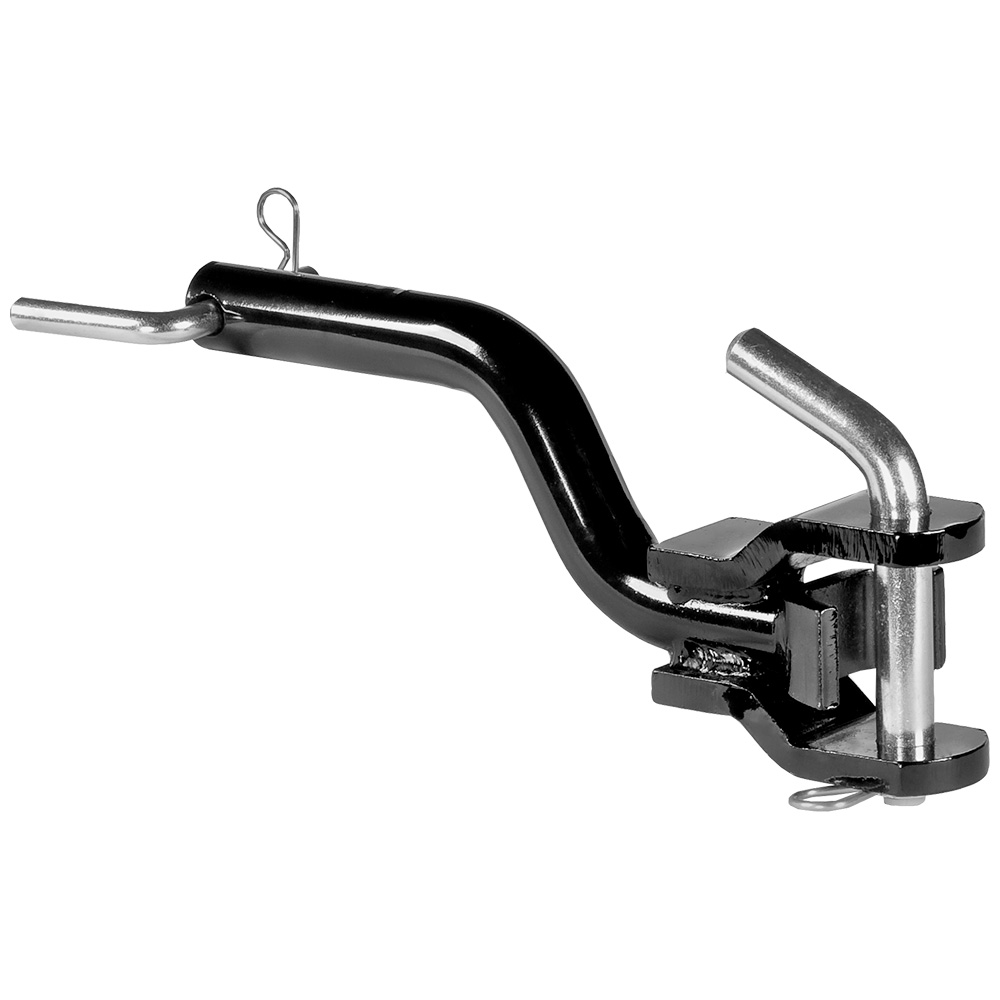

Tow bar
to be applied on G 131 - G131 BC
item no.: 9F4712
weight: 4 kg
Wheel extensions 12 cm (pair) (fit 2 pairs max)
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d - GF 2 - GF 3 - GF 3DF
item no.: 937112
weight: 2 kg
to be applied on G 131 - G131 BC
item no.: 995611
weight: 7 kg

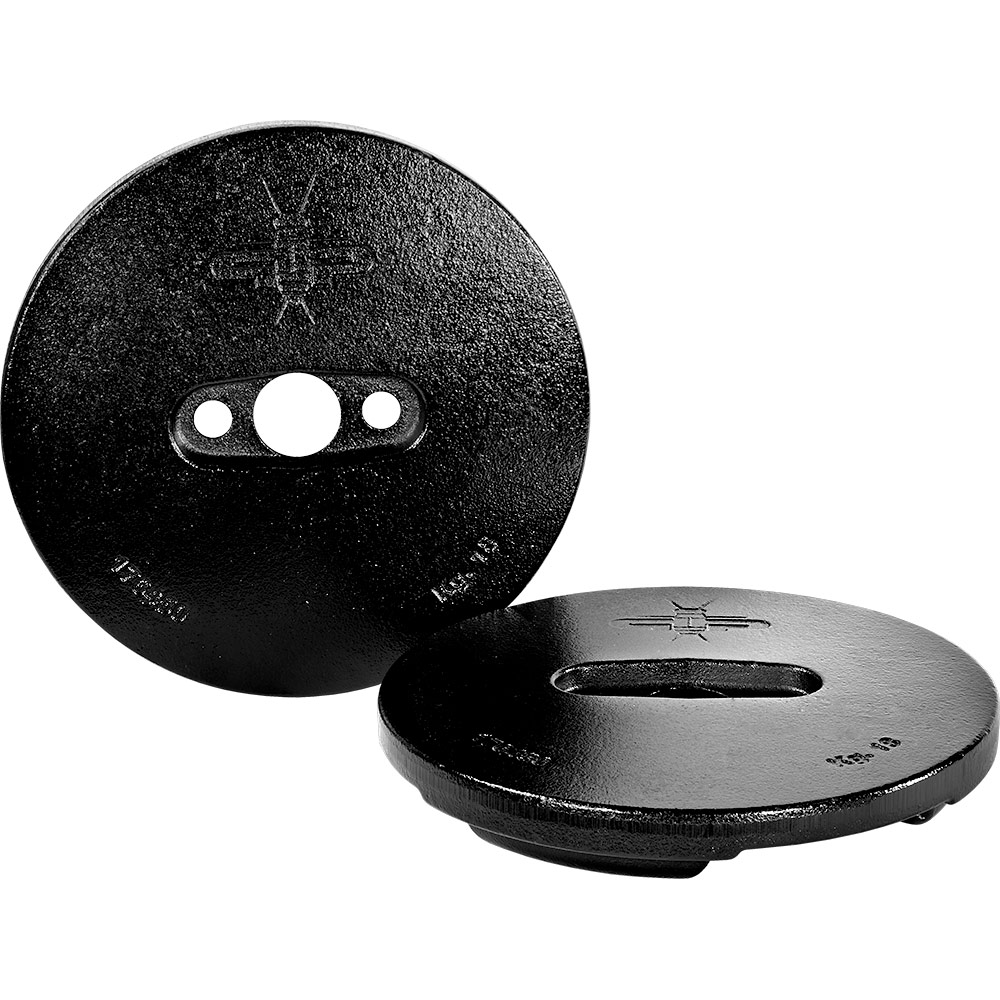

Wheel weights 36 kg per pair for wheels 5.00-12 with adjustable disks
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d
item no.: 9G2512
weight: 36 kg
Wheel weights 20 kg per pair for wheels 4.00-8, 4.00-10 and 5.00-10 (fixed and adjustable)
to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d
item no.: 9G1212
weight: 20 kg

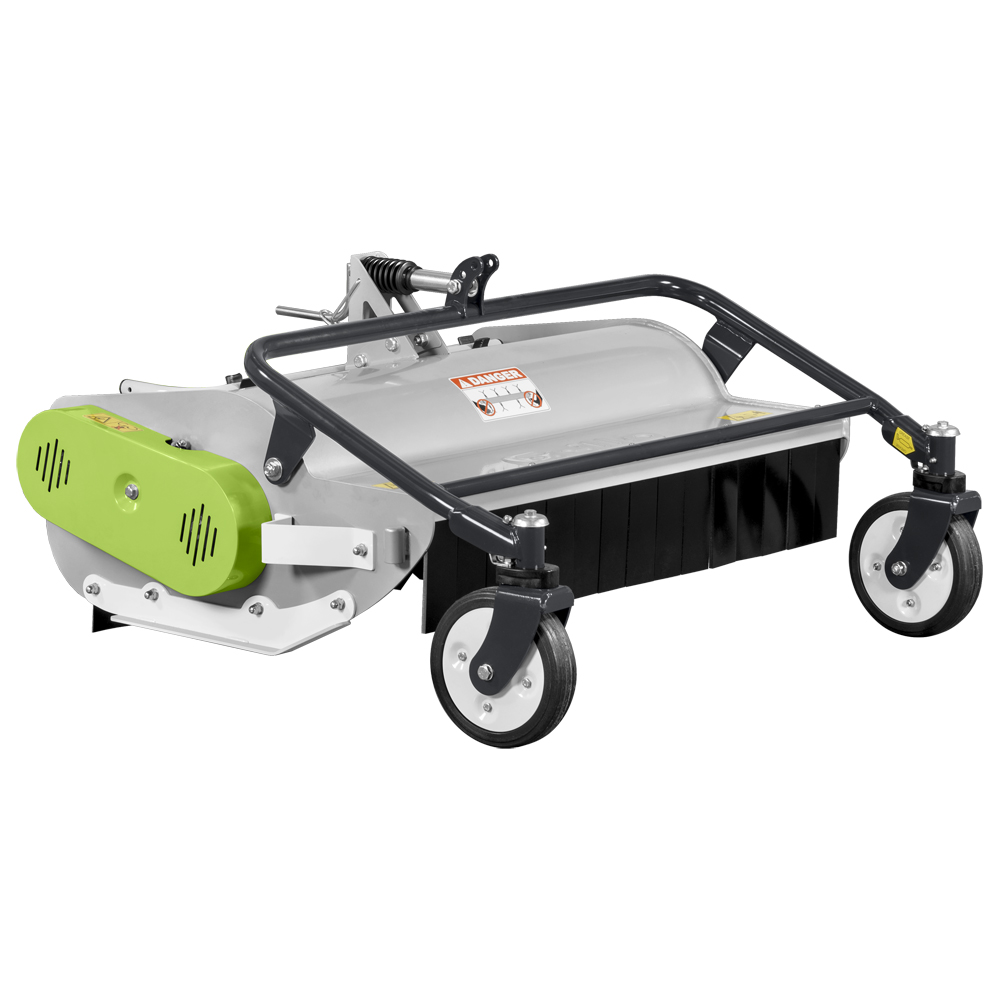

to be applied on Dumper 507 - G 131 - G131 BC
item no.: 9G8211
weight: 80 kg
Dumper 507: hydraulic lift kit + item 954412 needed.
Scarifier kit for all purpose flail 85 cm
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - GH 9
item no.: 9G7011
weight: 2,5 kg

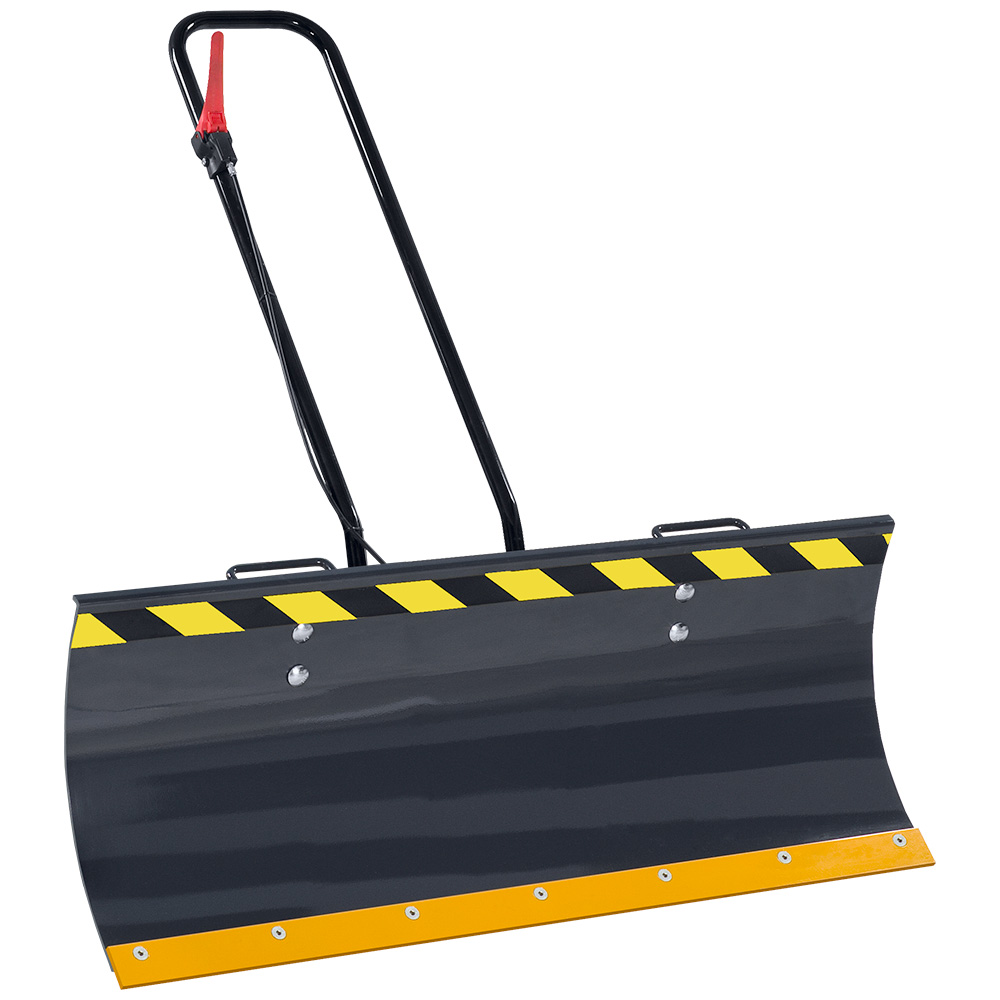

Front blade 125 cm with quick coupling Ø 5 cm (item 954712 needed)
to be applied on Dumper 507 - G 107d - G 131 - G131 BC - G 85d - GF 3 - GF 3DF
item no.: 9E6511
weight: 40 kg
Weight for front blade
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 52 - G 55 - G 85d - GF 1 - GF 2 - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9
item no.: 9E6111
weight: 20 kg

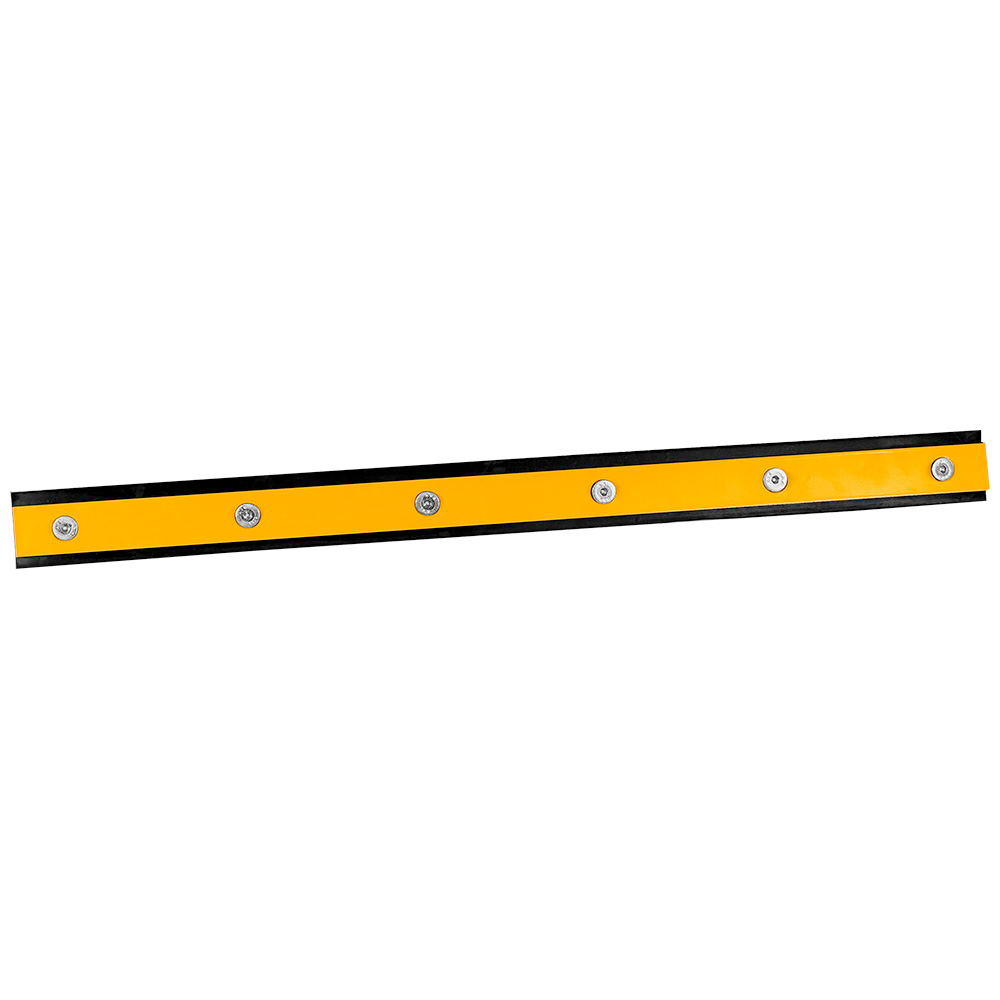

Rubber end for blade 125 cm
to be applied on Climber 10 AWD 22 - Climber 10 AWD 27 - Climber 7.15 - Climber 7.18 - Climber 8.22 - Climber 9.18 - Climber 9.22 - Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - MD 15 - MD 18 - MD 22N - MD 24 AWD - MD 28 AWD
item no.: 9E5911C
weight: 1 kg

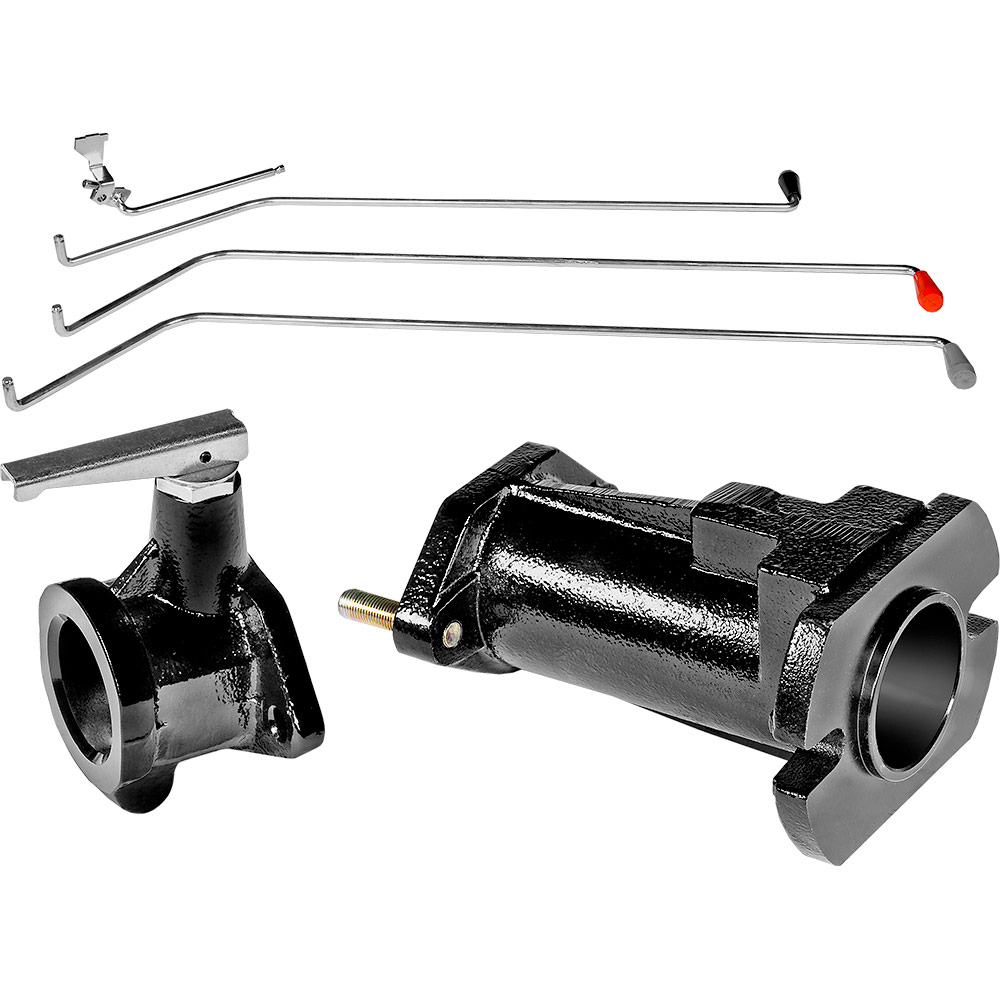

Front blade extension and control levers and coupling
to be applied on G 131 - G131 BC
item no.: 9B4711
weight: 6 kg

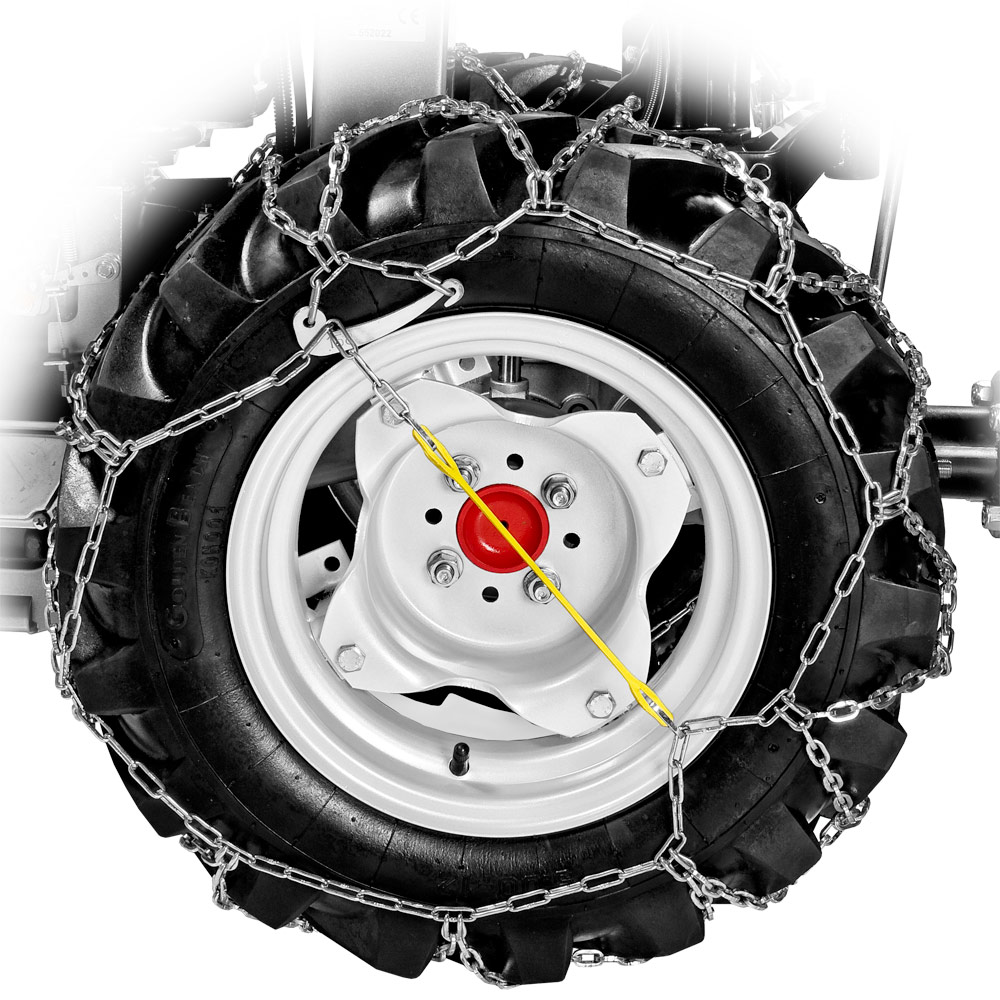

Snow chains for 5.00-12 wheels (pair)
to be applied on G 131 - G131 BC
item no.: 973422
weight: 2 kg

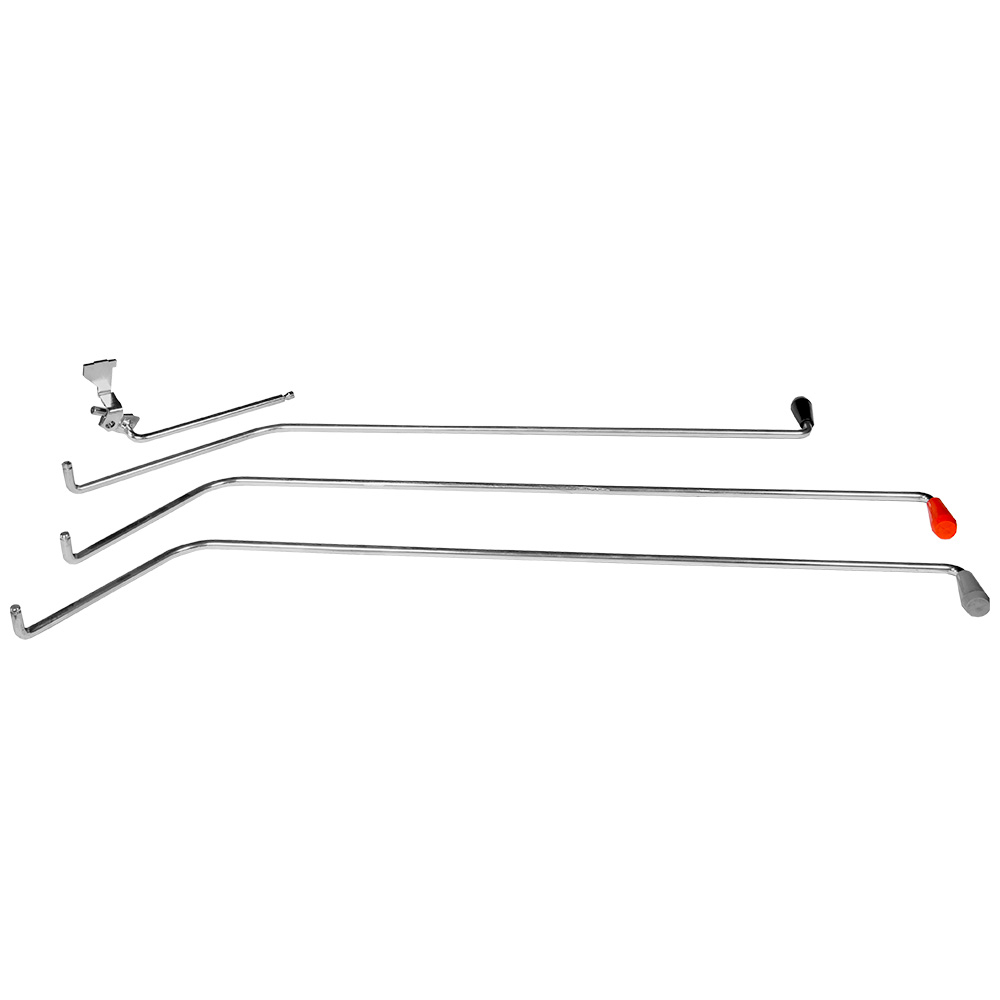

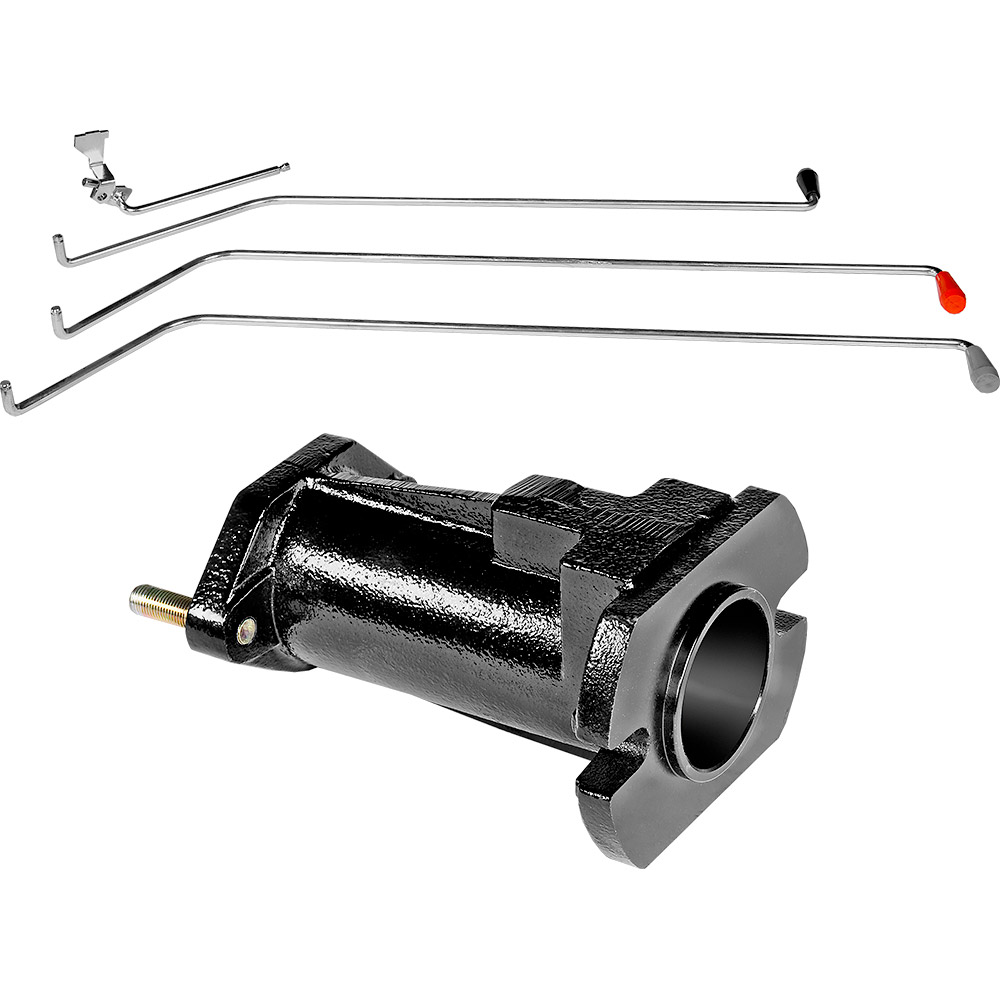

Rods and gearlevers for snow thrower and rotary mower and lawnmower
to be applied on G 131 - G131 BC
item no.: 9C2112
weight: 1 kg
to be applied on G 131 - G131 BC
item no.: 9M3222
weight: 60 kg

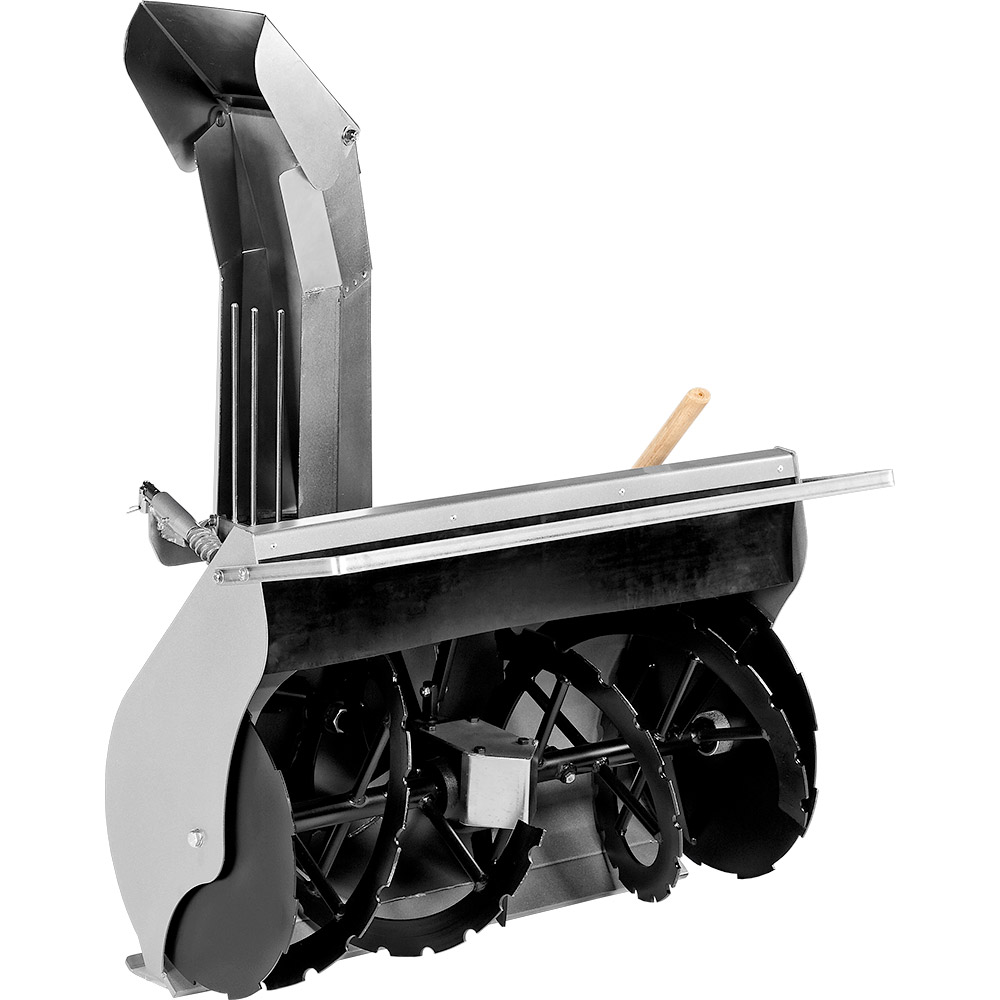

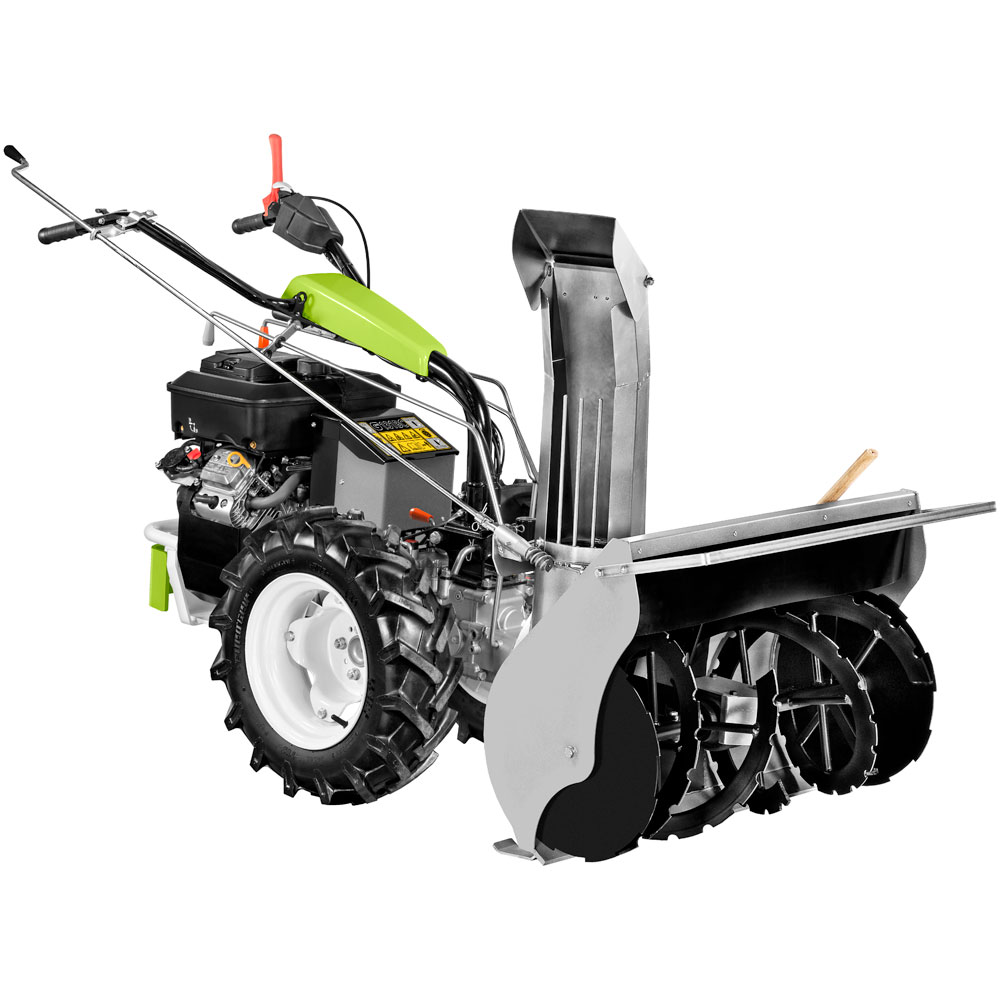

Snow thrower two-stage 80 cm (item no. 9C2112 needed)
to be applied on G 131 - G131 BC
item no.: 9F0922
weight: 78 kg

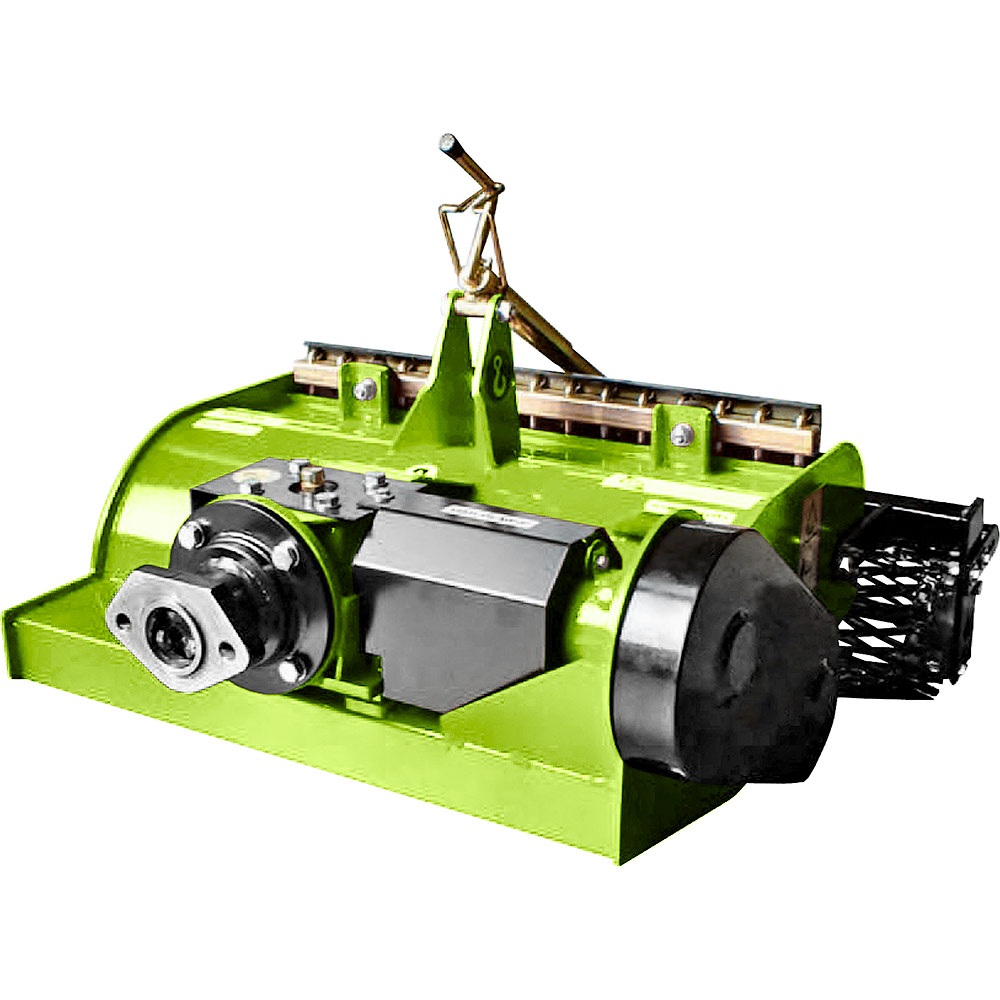

Stone burier 70 cm for G131 with 3 LD 510 engine
to be applied on G 131 - G131 BC
item no.: 975822
weight: 97 kg
Rotary plough 30 cm
to be applied on G 131 - G131 BC
item no.: 943722
weight: 47 kg
Power harrow 75 cm
to be applied on G 131 - G131 BC
item no.: 976422
weight: 92 kg

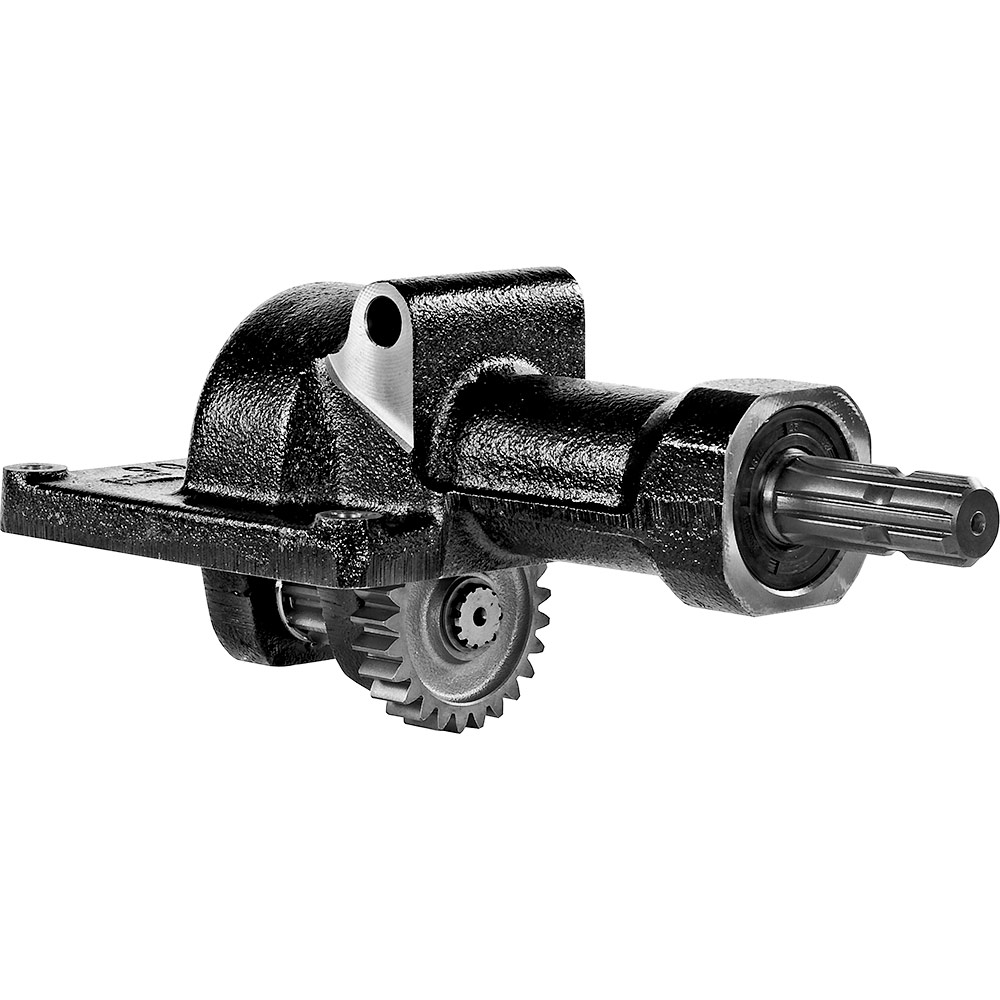

Synchromesh PTO
to be applied on G 131 - G131 BC
item no.: 9B5812
weight: 7 kg
