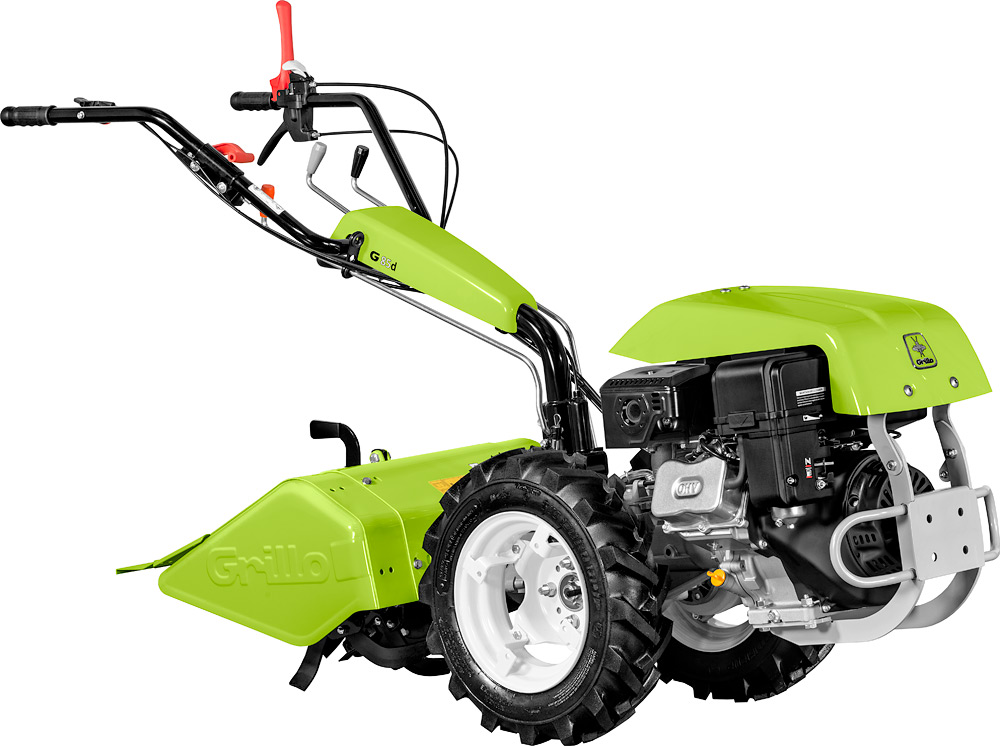

G 85d

The adjustable discs permit to modify the external width of the wheels according to the type of labour to be done.

On walking tractor G55 they can be mounted only when using plough or furrower.

Item 9C4312 (wheels extensions) is needed on 3500, 11500 rotavators equipped with plough.

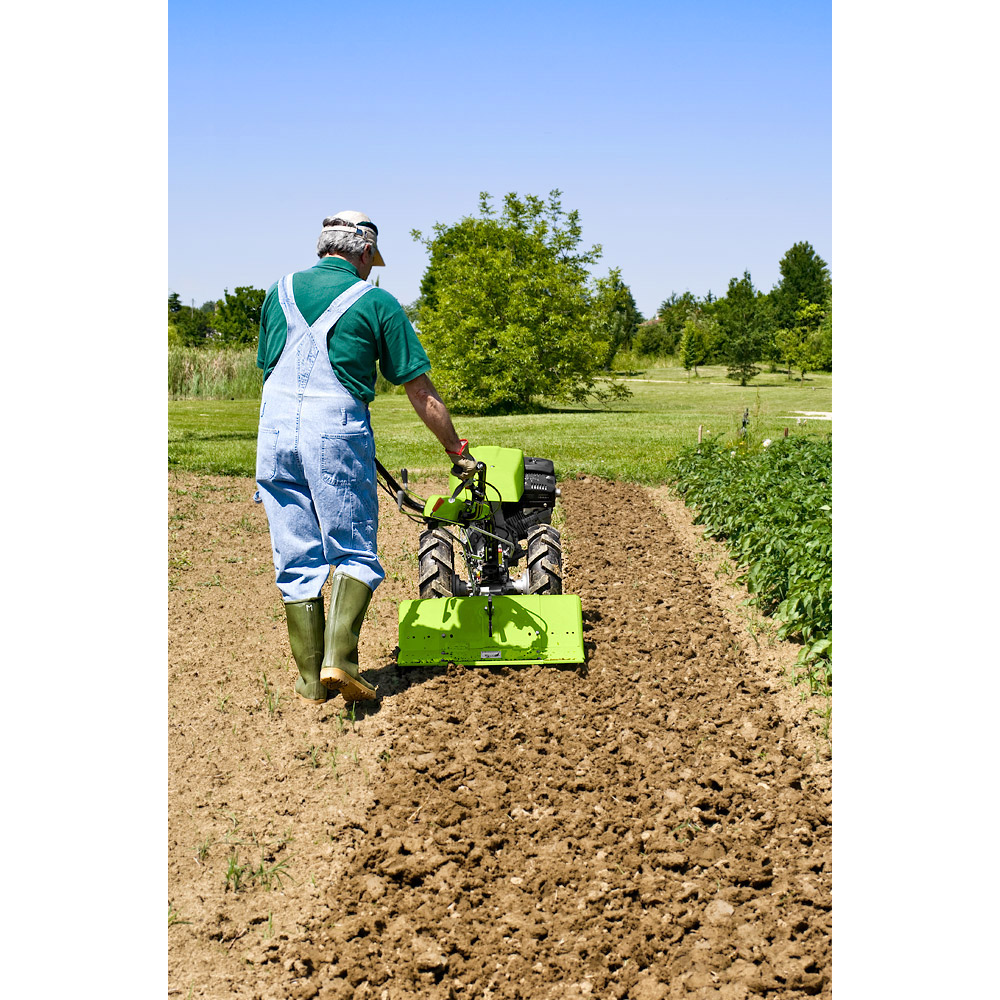

This kind of tiller is particularly recommended for hard soils. Tines and wheels move in opposite directions to each other, keeping the walking
tractor perfectly adherent to the ground and allowing the operator to till more efficiently with minimum effort.
There is no need to push down hard on the handlebar, just allow the walking tractor to move forwards under its own power.

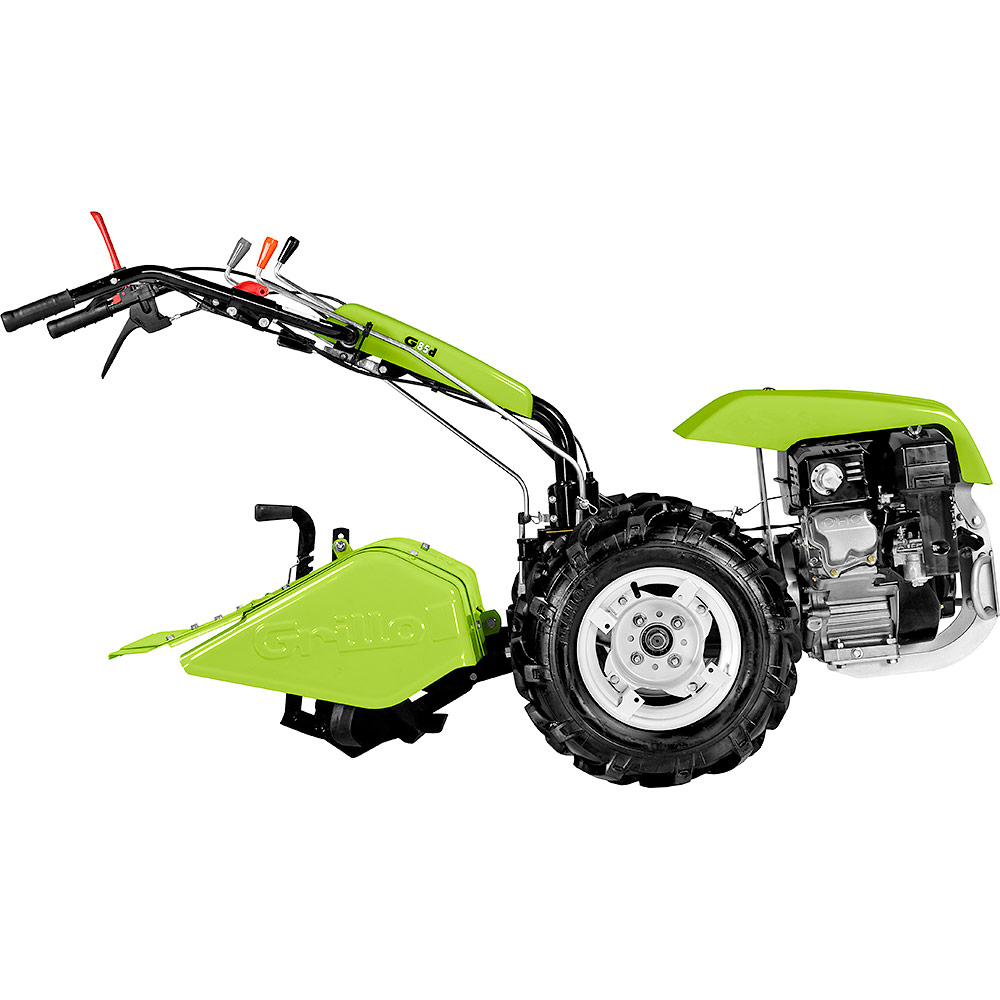

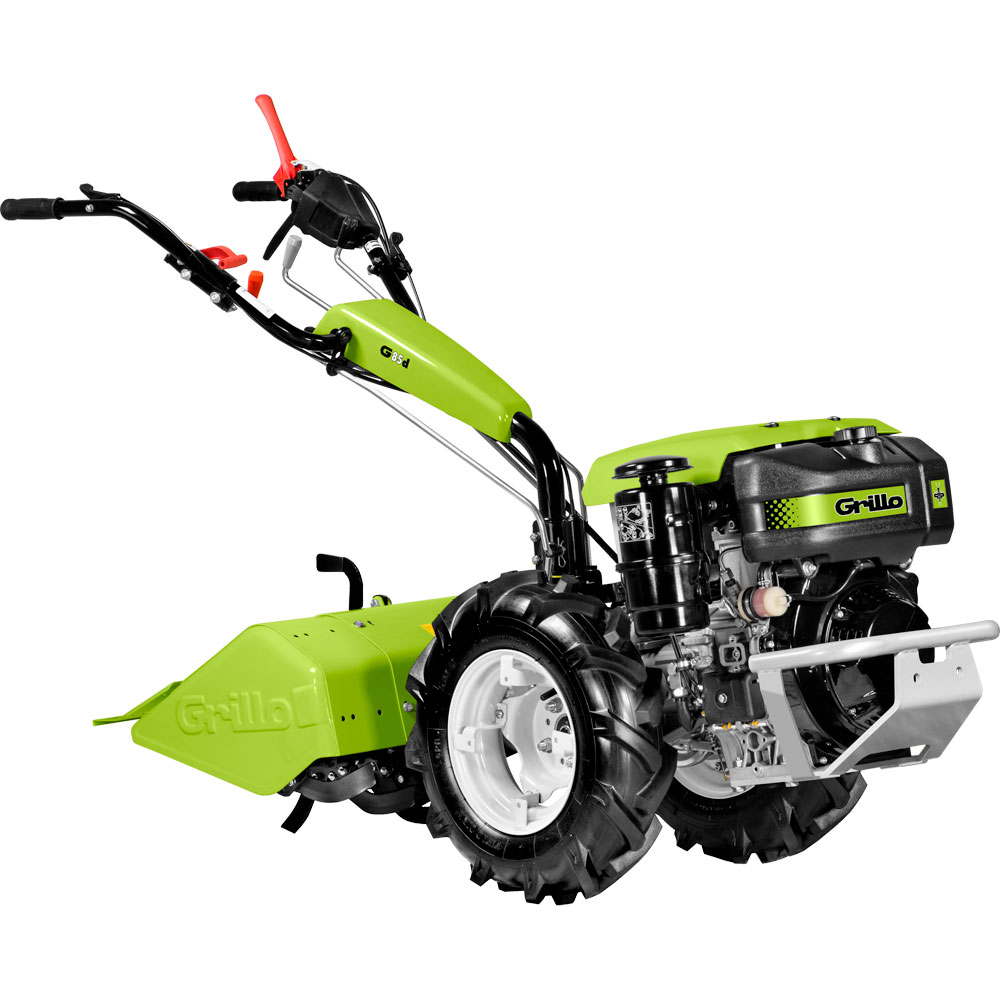

This rotary tiller is equipped with tines x4.
Tempered-steel tines have 32 cm diameter and are fixed with nuts.
It can be adjusted at 37 – 47 and 58 cm.
Carter is made of cast-iron and gears are in oil bath.
Thanks to its “all enveloping hood” the soil is kept inside and thinly tilled.
Special protections mounted on the tines shaft prevent soil residues or grass from getting into the transmission.
For better results the skid positioned at the centre of the hoes can be adjusted according to the kind of soil, hard or sandy/soft soils.
The tilling depth can be adjusted using the lever positioned outside the tiller hood.

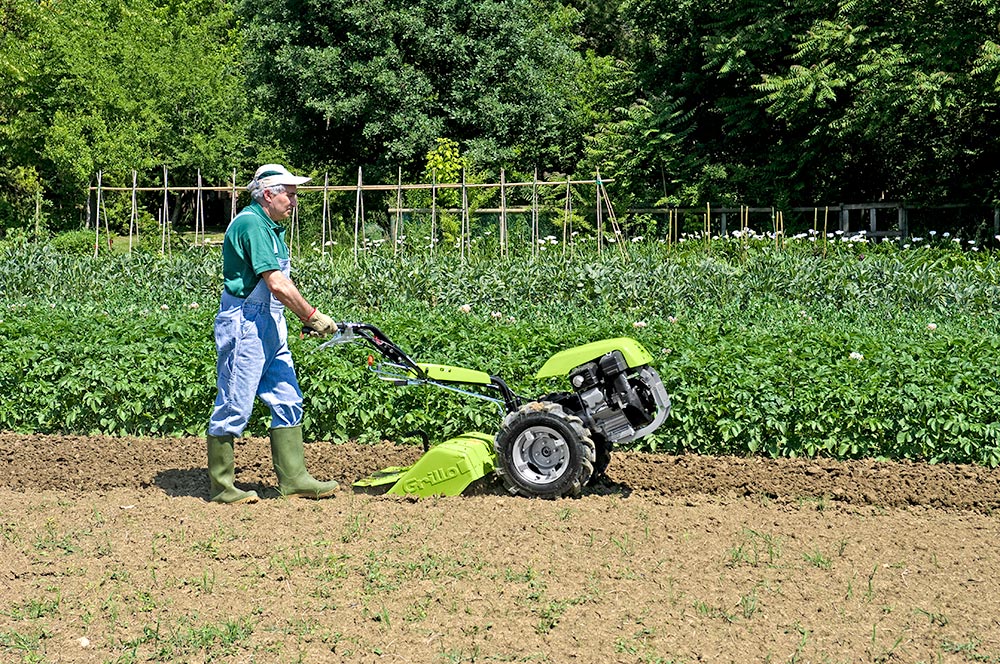

The double rotary tiller has 4 floating hoes per element and is suitable for all types of soil.

The hoes, mounted with bolts, are made of hardened steel and have a working diameter of 26 cm.

The tilling width is 60 cm.

The special feature of this tiller is that it combines the advantages of the standard rotary tiller and the counter-rotating tiller.

It is equipped with a lever control on the bonnet that reverses the direction of rotation of the milling cutter as required. In counter-rotating mode, even very hard soils can be finely tilled without fatigue.

The bonnet is wrap-around and safe for the operator; it retains the soil inside and allows it to be further shredded.

The tiller housing is made of cast iron and the gearbox is in an oil bath.

Special guards on the tiller axle prevent soil or grass from entering the transmission.

To fit the cutter bar code 9M7311 (127 cm) on the G131BC it is necessary the kit 9C2012 (18 cm extension and levers)

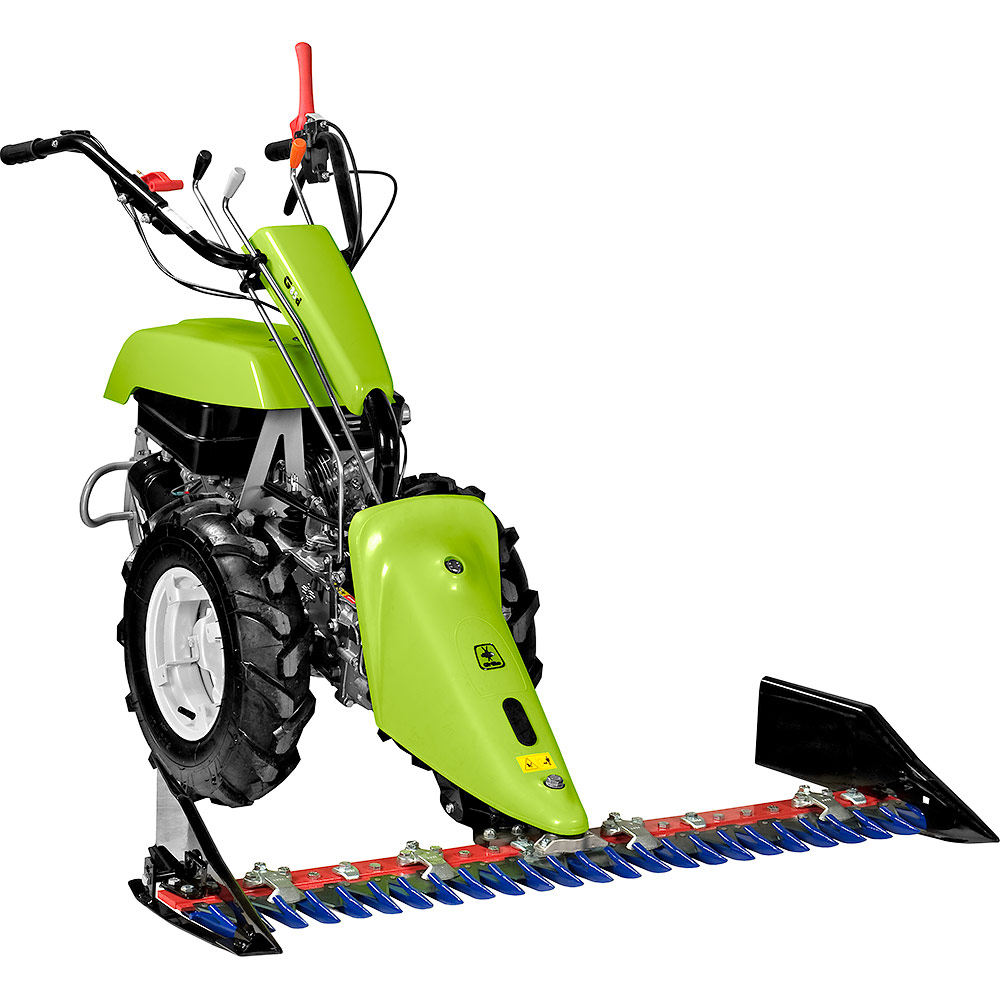

The central middle-cut toothed CUTTER BAR PRO is a special bar especially designed for professional use.
It has been conceived to cut in rough and fallow land, but it can be successfully used to cut hay too and also in agriculture to clean in-between orchards, thanks to its excellent manageability.
It is provided with an anti-clogging cutting system with a high resistance to impact with foreign objects.
Great efficiency is achieved thanks to high-quality steel.

132 cm professional double cutting-bar with oil-bath movement and self-regulating elastic hold-down clamps (Busatis Austria System)

on motorhoes item no. 950522 needed;

on walking tractors item no. 945322 needed; we recommend 5.00-12 wheels and wheel weights

Fitted on the back, enables the process of quickly harvesting small crops of root vegetables such as potatoes.

If applied on G85 - G85d - G107d - G108 - G110: item code 945322 needed, 5.00-12 tyres and wheels weights are suggested.

If applied on G131: item code 948522 needed, 6.50/80-12 tyres and and wheels weights code 9G2512 are suggested.

This implement carry out accurate furrows of any dimension. The furrower behind the rotary tiller slots into the back of the rotary tiller so enabling rotavating and ridging in one pass.

Not applicable on code 994711.

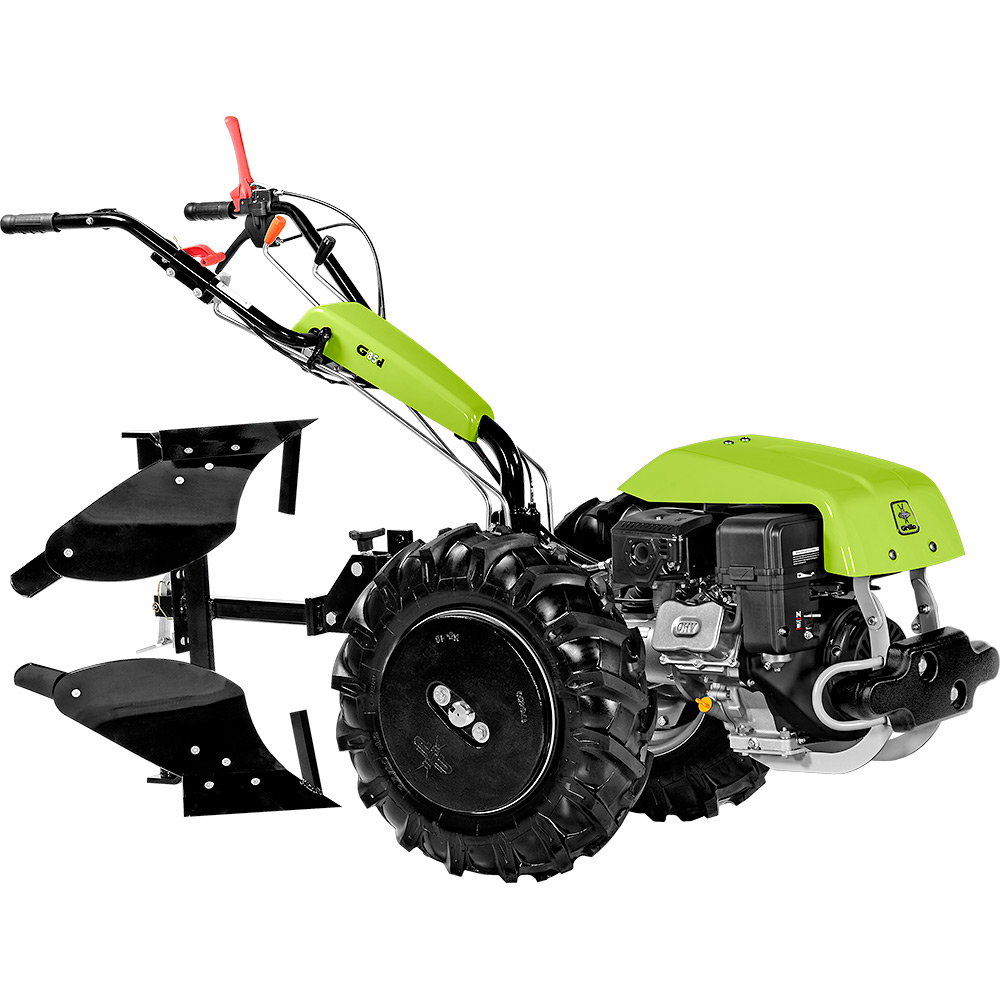

The plough kit comprehends: demi-wrest plough 180°, frame for attacchments, wheel weights, engine weight and wheel extensions.

5.00-12 wheels cod.902512 and spacers cod.9A3211 needed

on walking tractors G 55, G 85, G85d and G 107d cod. 9F4212 needed

on walking tractors G 131 cod. 9F4712 needed

Item 9F4212 needed for G55, G85, G107, G108 and G110.

Item 9F4712 needed for G131BC.

For G108 and G110, item 946911 and item 946511 needed.
