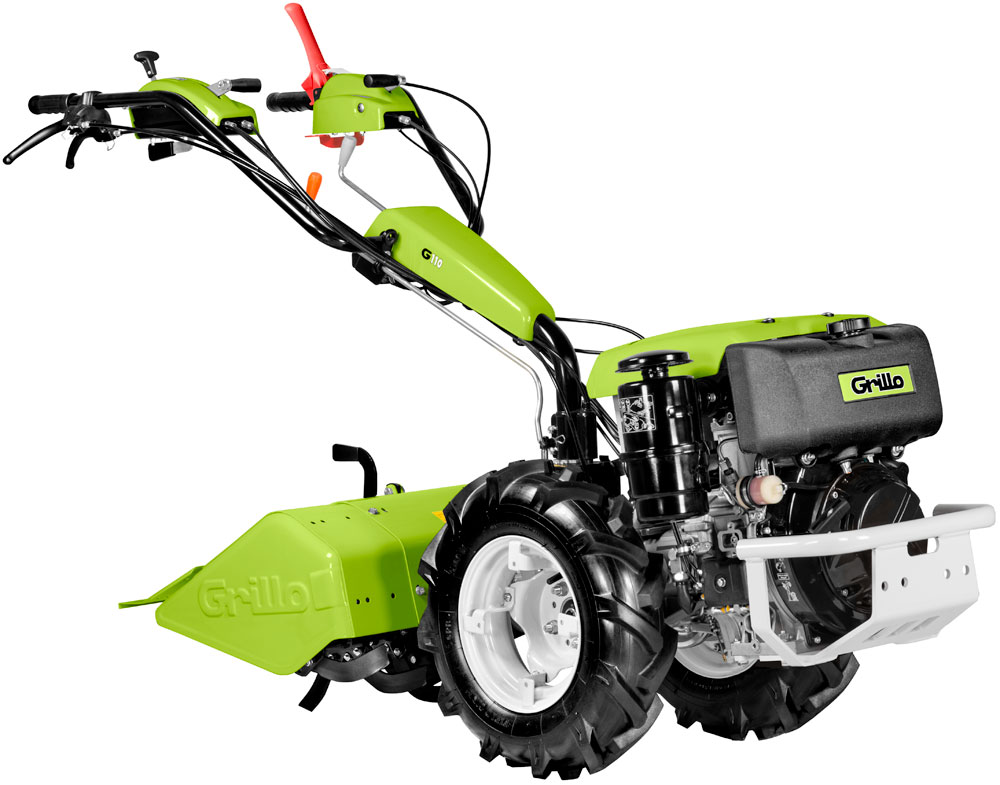

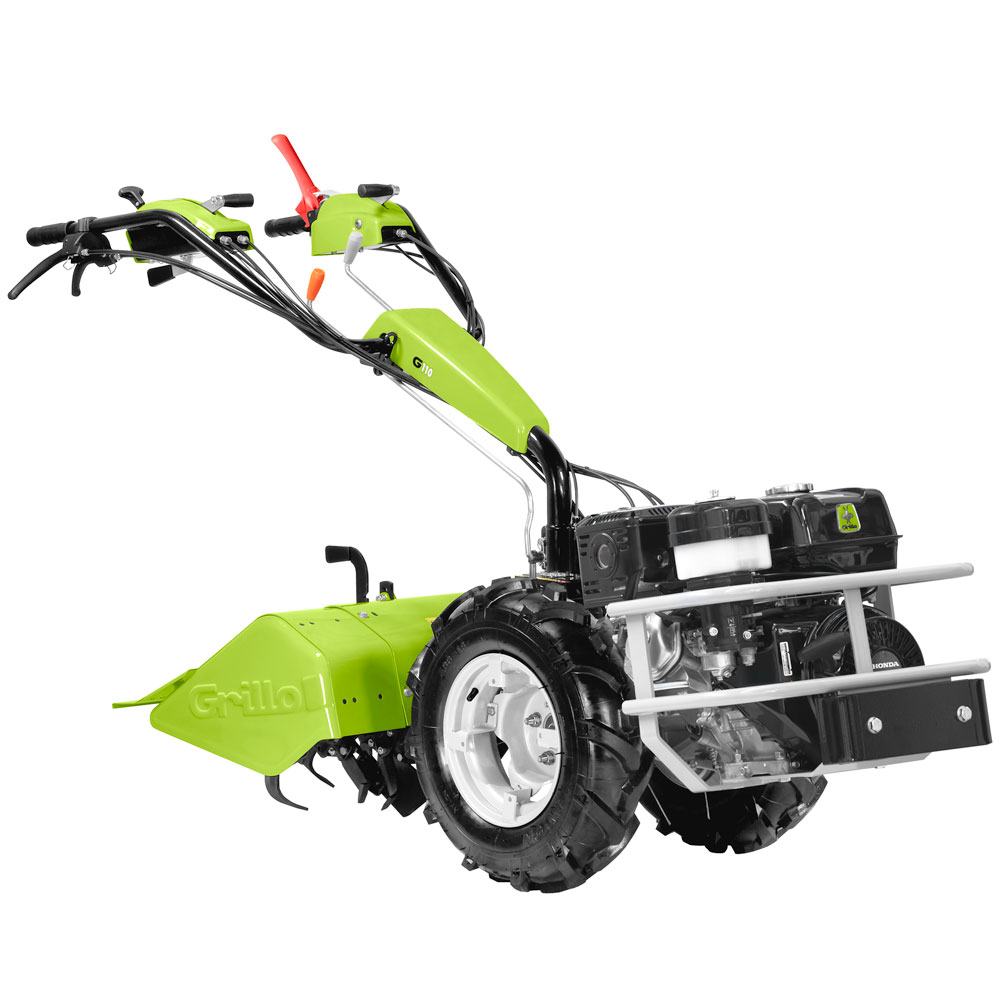

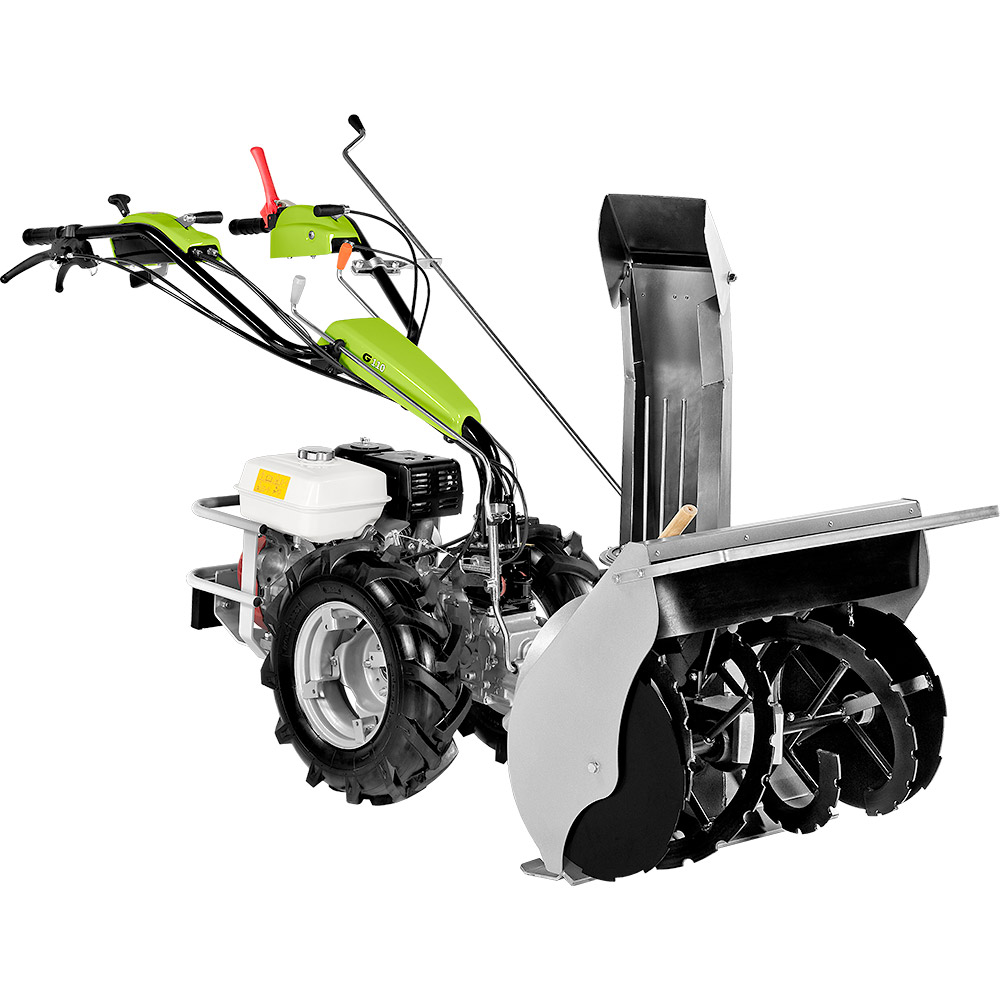

G 110

A powerful and versatile walking tractor! Differential and brakes come as a standard feature.

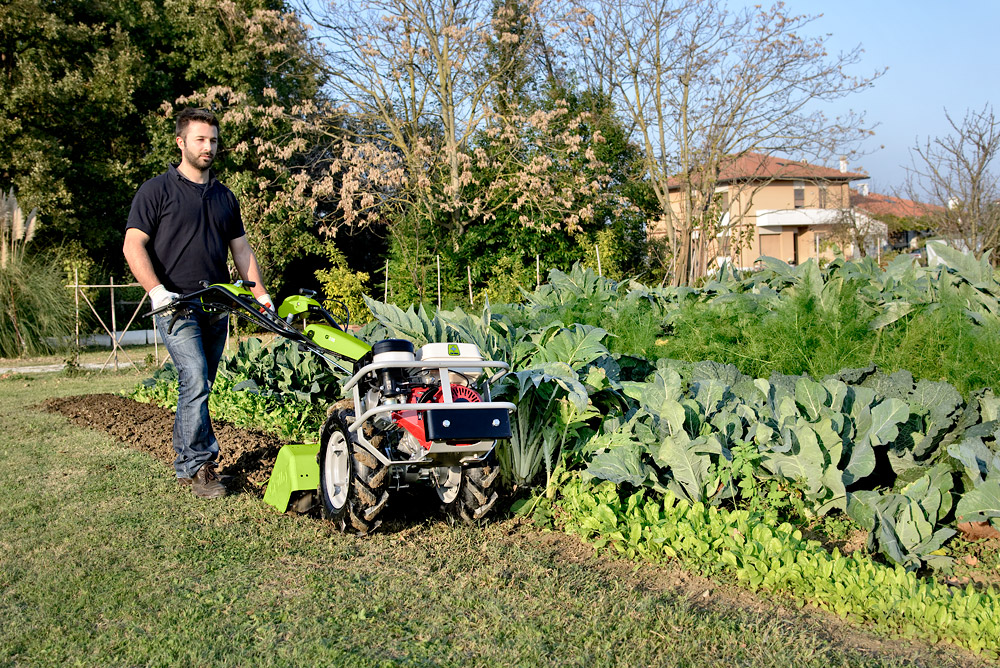

The Grillo G110 is an ideal walking tractor for working in agriculture, horticulture, in vegetable plots and gardening in large areas.
It is a well-balanced machine, fitted with a 6-speed gearbox with 3 forward gears + 3 reverse gears. The differential lock comes as a standard feature.
Despite its devices, such as active clutch and automatic reverse gear decelerator, this walking tractor can be safely handled by the user.
A great deal of front and rear – mounted attachments can be connected to the machine due to the reversing of the handlebar by 180°. Also an optional plough kit including larger diametre wheels, wheel extensions, turn-wrest plough and wheel weights. Attachments can connected through a flanged coupling or a quick coupling without needing tools.
The automatic quick gear-inverter lever reverses the forward movement when the handlebar is 180° turned.
To achieve a greater stability on slopes you can increase the wheel track up to 25 cm by using the appropriate fixed or adjustable Grillo wheel extensions.

Technical data sheet G 110

Back to

	Engine	Honda GX390 OHV Start recoil starter Supply fuel Displacement 389 cc, 1 Cylinder Power 11.7 HP (8.7 kW) Air cooled Oil bath air filter
	Engine	Kohler KD15 440 Start recoil starter and electric with 12V battery Supply diesel Displacement 441 cc, 1 Cylinder Power 11 HP (8.1 kW) Air cooled Oil bath air filter
	Fuel tank capacity	6,1 Lt. (GX390) - 5,0 Lt. (KD15 440)
	Transmission	Gear type in oil bath.
	Gearbox	With inverter. Walking tractor version: 3 forward gears + 3 reverse gears. Sickle bar version: 3 forward gears + 3 reverse gears.
	Reverse gear unit	Rapid through lever.
	Clutch	Conic and active.
	Standard rotary tiller	Adjustable, with tines x4. Working width: 68 cm.
	Hoes system diametre	32 cm
	Working width	Adjustable 37, 47, 58, 68 cm.
	Working depth	16 cm.
	Item no. standard rotary tiller	984611
	P.T.O.	965 revolutions independent from gearbox (walking tractor version: clockwise rotation / sickle bar version: anticlockwise rotation).
	Differential locking	With lock device through lever.
	Available tyres	4.00-10, 5.00-10 (5.00-12 for furrower and ploughing only), wide steel wheels 40x10 cm, Turf wheels 20x10.00-8 (item 937112 needed)
	Speed	With 5.00-10 wheels: 1st gear 1,3 km/h, 2nd gear 2,4 km/h, 3rd gear 5,0 km/h. I° Reverse gear 0,7 km/h, II° Reverse gear 1,5 km/h, III° Reverse gear 3,2 km/h.
	Service brake	Drum brake, as a standard feature.
	Handlebar	With height and side adjustment and reversible.
	Safety devices	Active clutch, reverse speed – PTO cut out, automatic decelerator in reverse speed.
	Weight	142 kg (GX390) with cm 68 rotary tiller and 5.00-10 wheels- 168 kg (KD15 440) with cm 68 rotary tiller and 5.00-10 wheels.

In action! Photos and Videos

Back to

Grillo G 110

Implements G 110

Back to

Pneumatic tractor wheels 4.00-10 (adjustable disks); pair

to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF

item no.: 902412

weight: 16 kg

Pneumatic Tractor wheels 5.00-10 (adjustable disks); pair

to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 55 - G 85d - GF 3 - GF 3DF

item no.: 900412

weight: 22 kg

The adjustable discs permit to modify the external width of the wheels according to the type of labour to be done.

On walking tractor G55 they can be mounted only when using plough or furrower.

Item 9C4312 (wheels extensions) is needed on 3500, 11500 rotavators equipped with plough.

Pneumatic tractor wheels 5.00-12 (adjustable disks) for plough (pair)

to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d

item no.: 902512

weight: 25 kg

Wide steel wheels Ø 40 x 10 cm (pair)

to be applied on CL 75 - G 107d - G 108 - G 110 - G 85d

item no.: 920312

weight: 12.5 kg

Pneumatic Turf wheels 20x10.00-8(fixed disks); item 937112 needed

to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF

item no.: 918712

weight: 17 kg

Agri wheels 21x11.00-8 (pair)

to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF

item no.: 919212

weight: 21 kg

Adjustable Wheel extensions to 25 cm (pair) (weight item no. 9G2512 can be used)

to be applied on G 107d - G 108 - G 110 - G 85d

item no.: 937312

weight: 11,5 kg

Wheel extensions 12 cm (pair) (fit 2 pairs max)

to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 85d - GF 2 - GF 3 - GF 3DF

item no.: 937112

weight: 2 kg

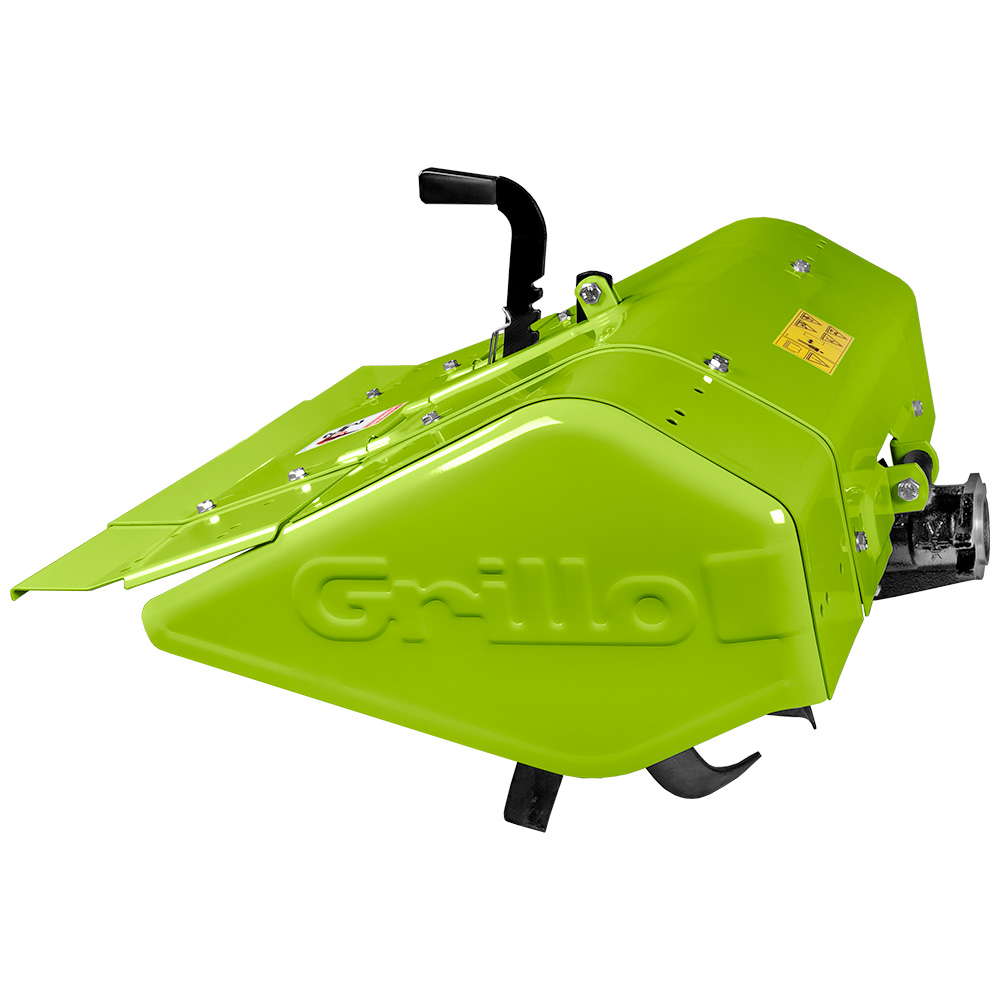

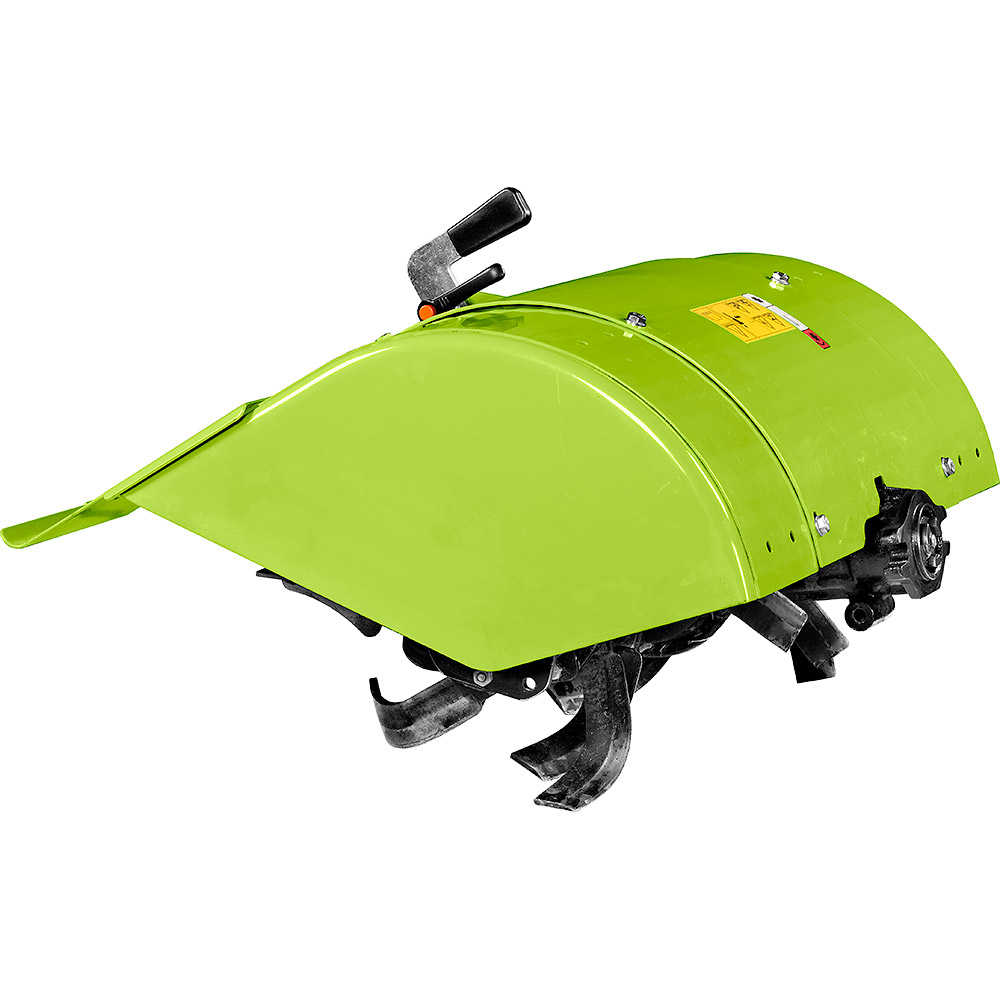

Adjustable rotary tiller 58 cm (4 x tines)

to be applied on G 108 - G 110

item no.: 984511 946311

weight: 40 kg

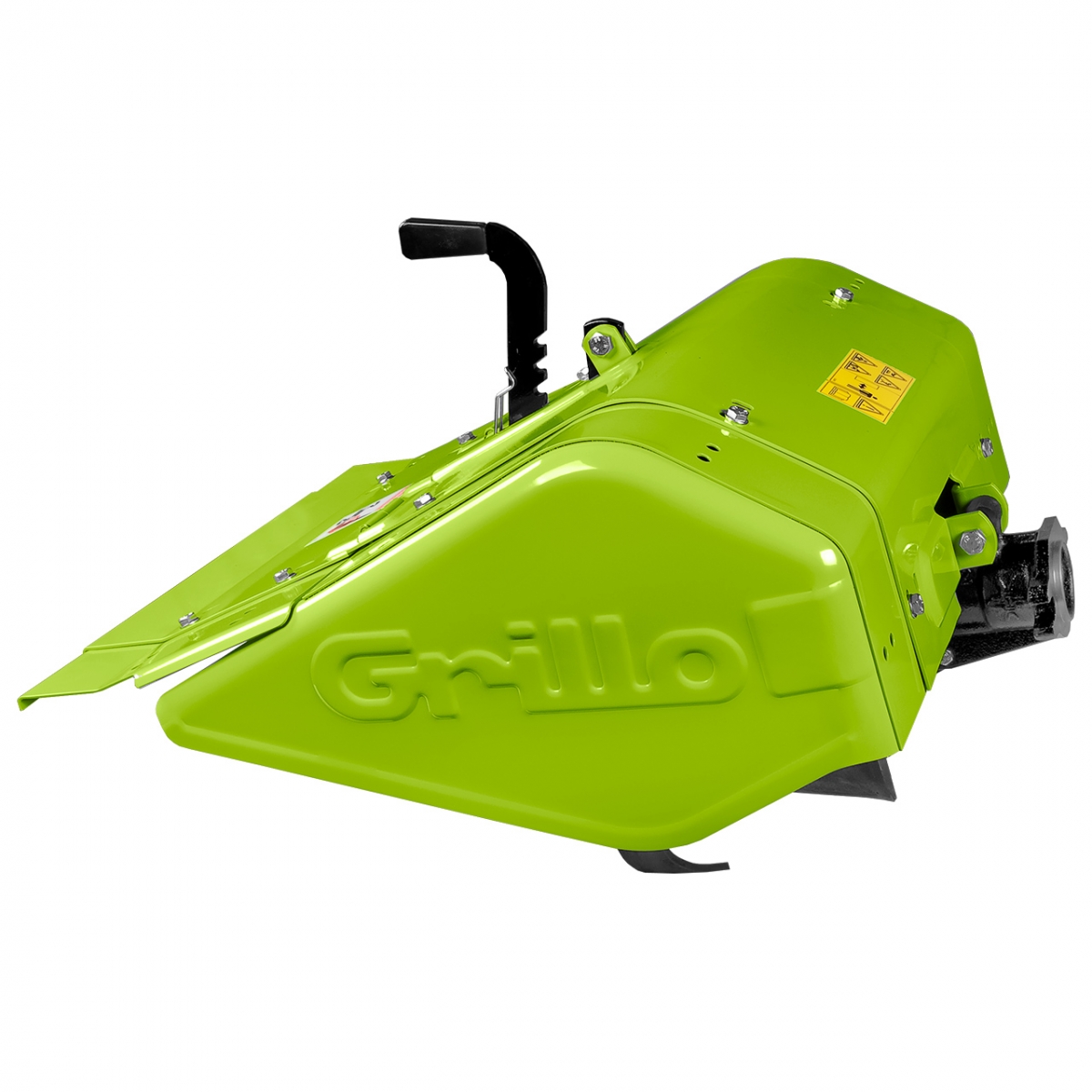

Adjustable rotary tiller 68 cm (tines x 4)

to be applied on G 108 - G 110

item no.: 984611 946311

weight: 42 kg

Rotary tiller extension cod. 984511 to 68 cm (pair)

to be applied on G 107d - G 108 - G 110 - G 85d

item no.: 929112

weight: 3 kg

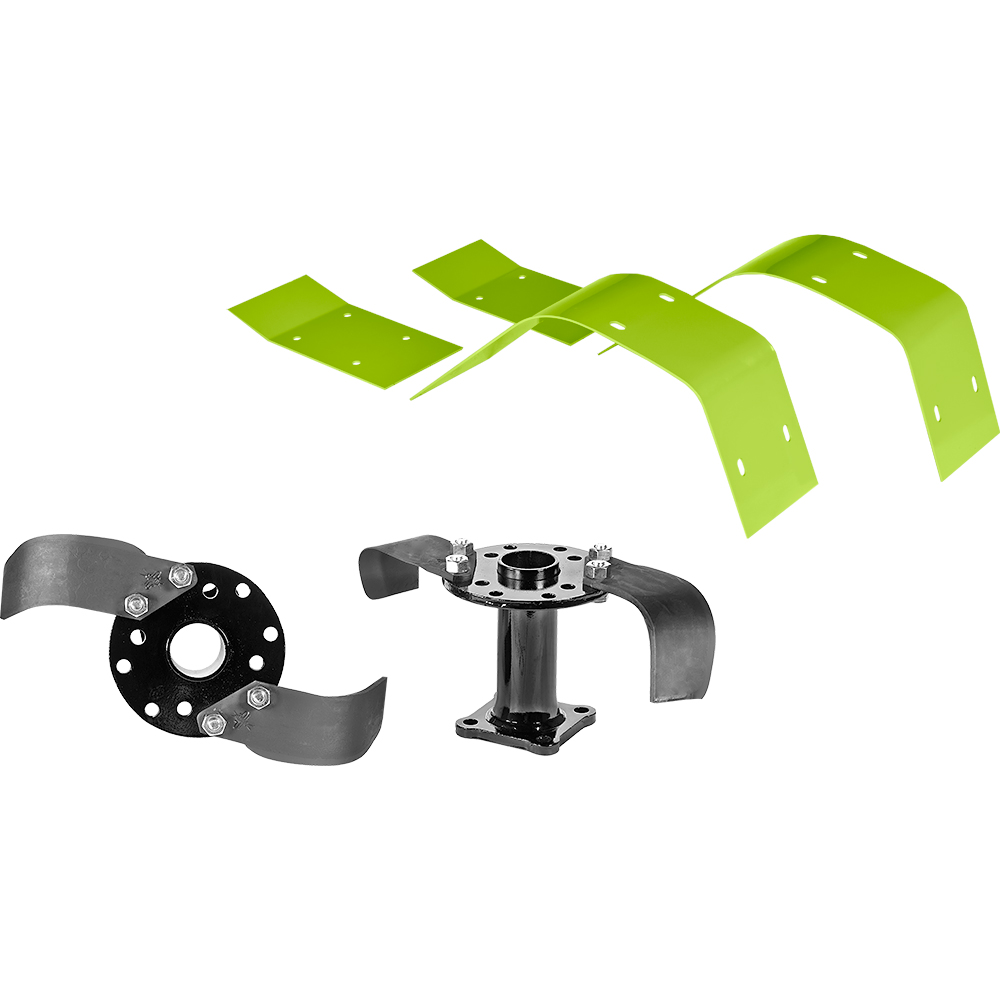

Rotary tiller extensions (pair) cod. 984611 to 77 cm

to be applied on G 107d - G 108 - G 110 - G 85d

item no.: 929612

weight: 4 kg

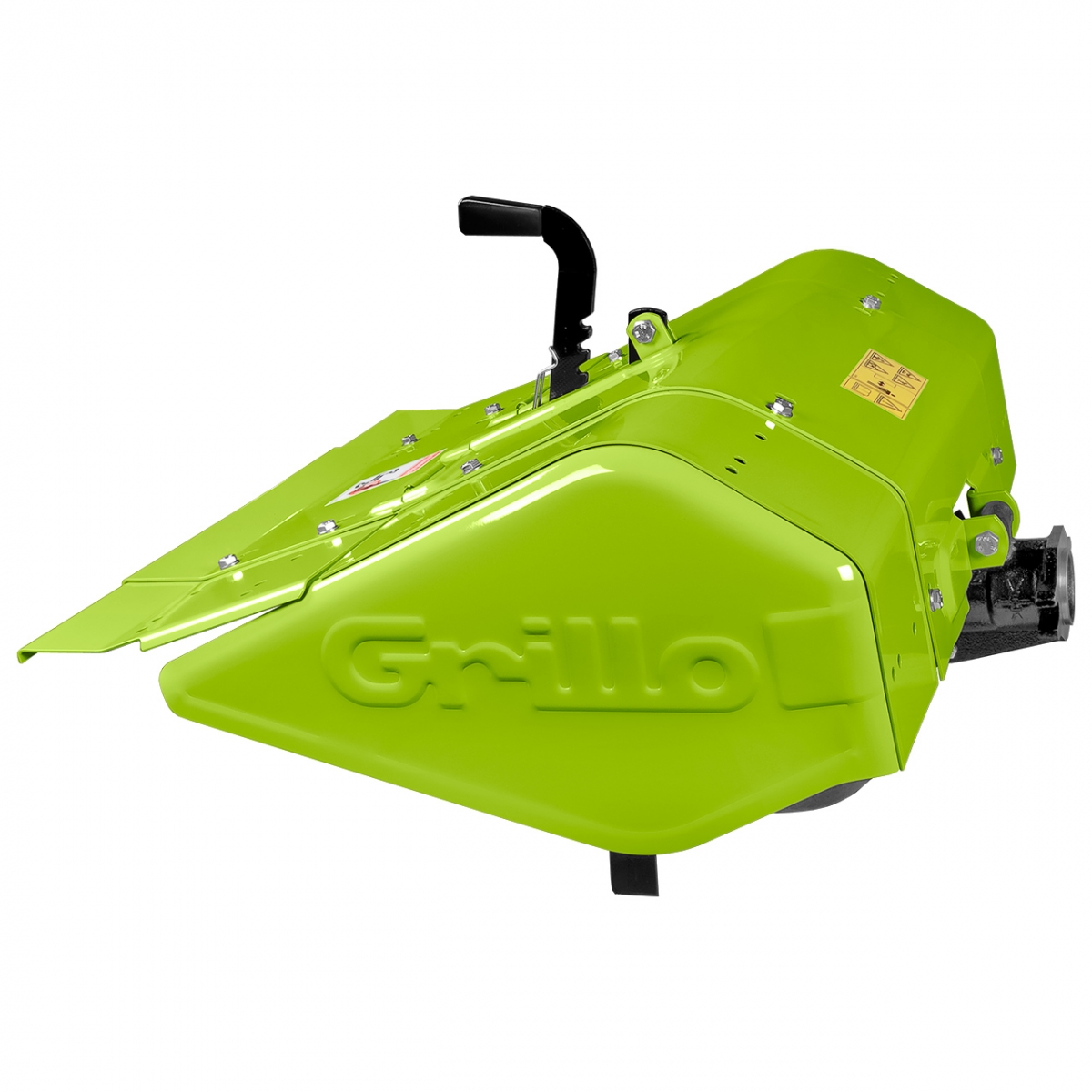

Adjustable counter-rotating tiller, 68 cm (4 x tines)

to be applied on G 108 - G 110

item no.: 994511 946311

weight: 40 kg

68 cm adjustable tiller with diam. 340 mm bigger tines (4 x tines)

to be applied on G 110

item no.: 994611 946311

weight: 50 kg

to be applied on G 110

item no.: 929711

weight: 5 kg

Adjustable rotary tiller, 70 cm (6 x tines)

to be applied on G 108 - G 110

item no.: 984711 946311

weight: 42 kg

Rotary tiller extension cod. 984711 to 83 cm (pair)

to be applied on G 107d - G 108 - G 110 - G 85d

item no.: 929312

weight: 7,5 kg

Rotary tiller support wheel

to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 55 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO

item no.: 9C7012

weight: 2 kg

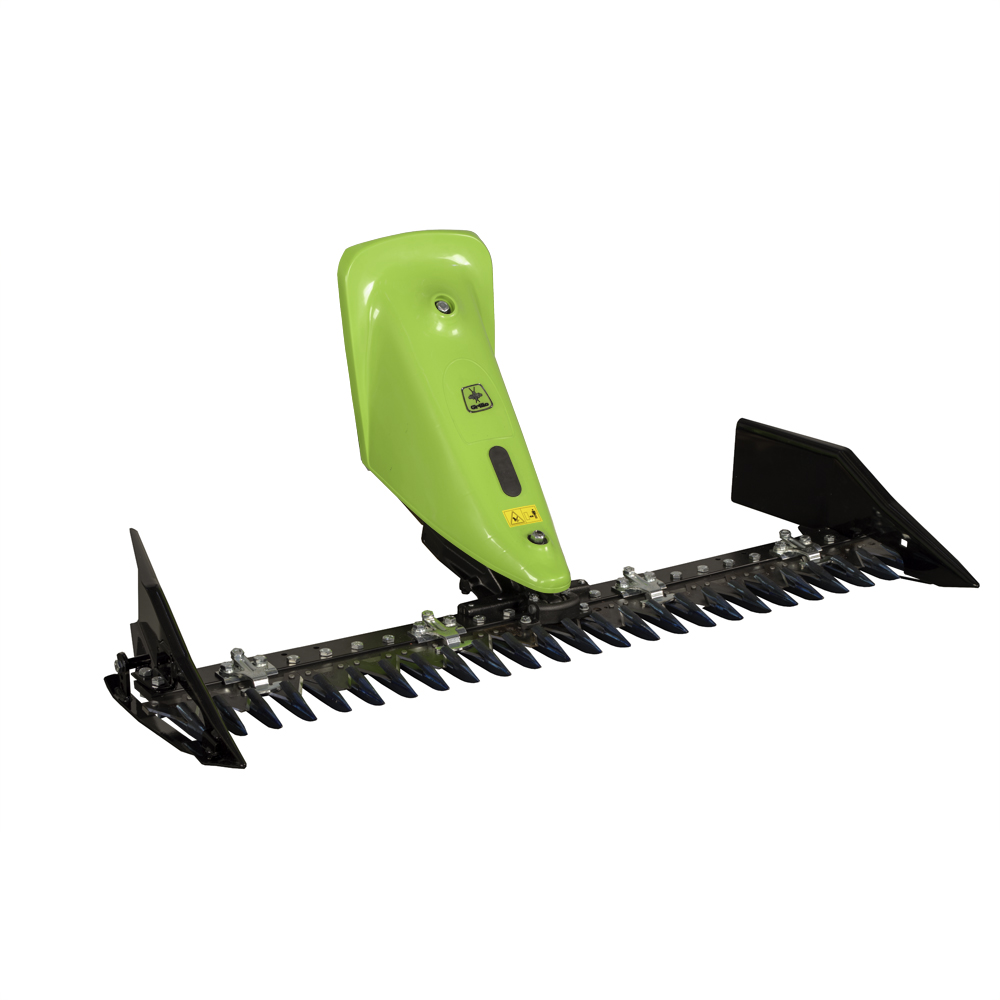

Middle-cut finger cutter bar 110 cm with crank action

to be applied on G 108 - G 110

item no.: 9M7211 9M7111 946311

weight: 36 kg

to be applied on G 108 - G 110

item no.: 9M7311 9M7111 946311

weight: 40 kg

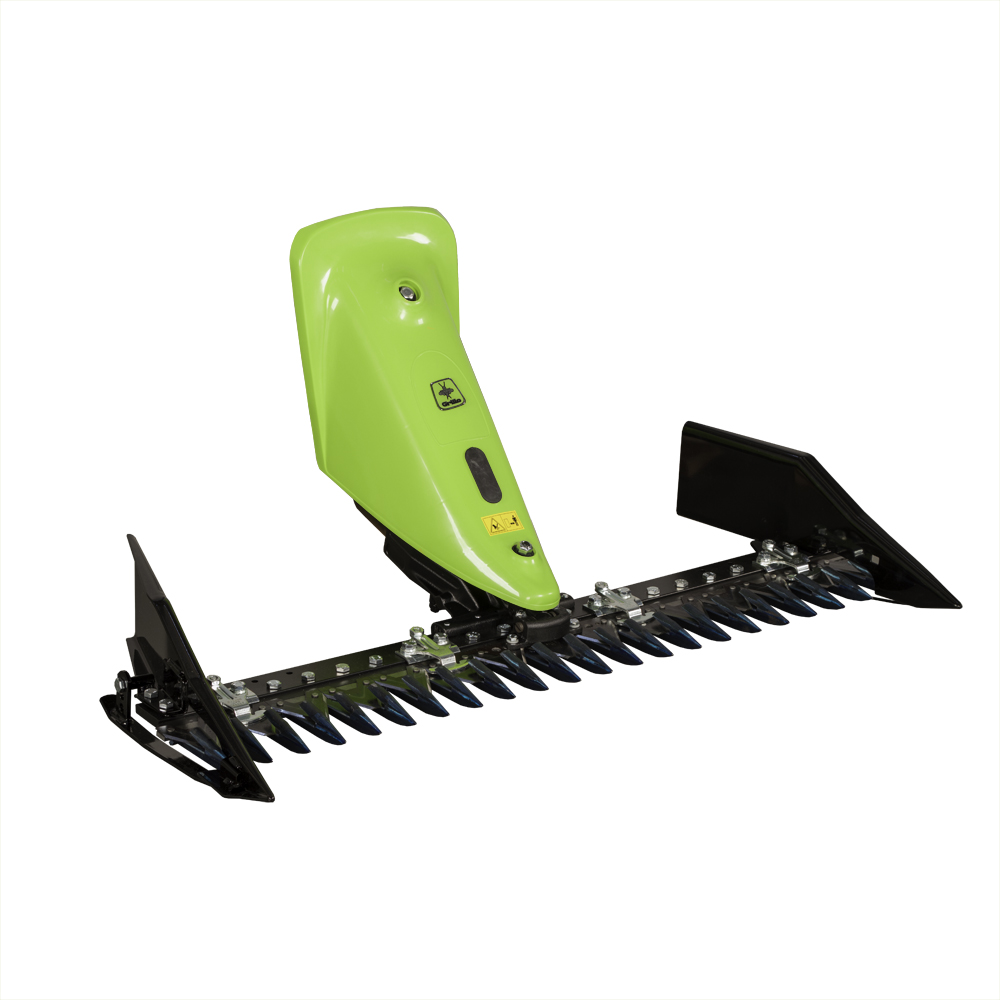

Middle-cut finger cutter bar 110 cm with oil-bath mouvement

to be applied on G 108 - G 110

item no.: 9M7211 998811

weight: 43 kg

to be applied on G 108 - G 110

item no.: 9M7311 998811

weight: 47 kg

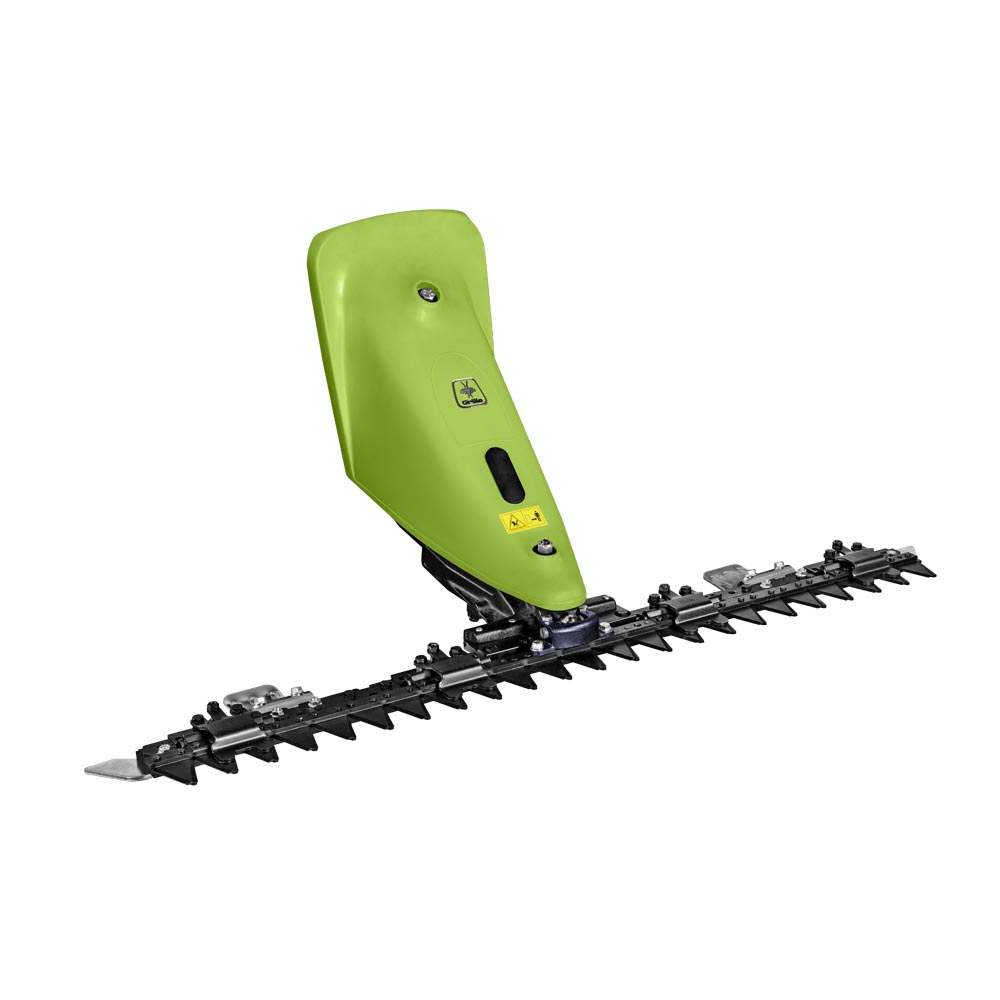

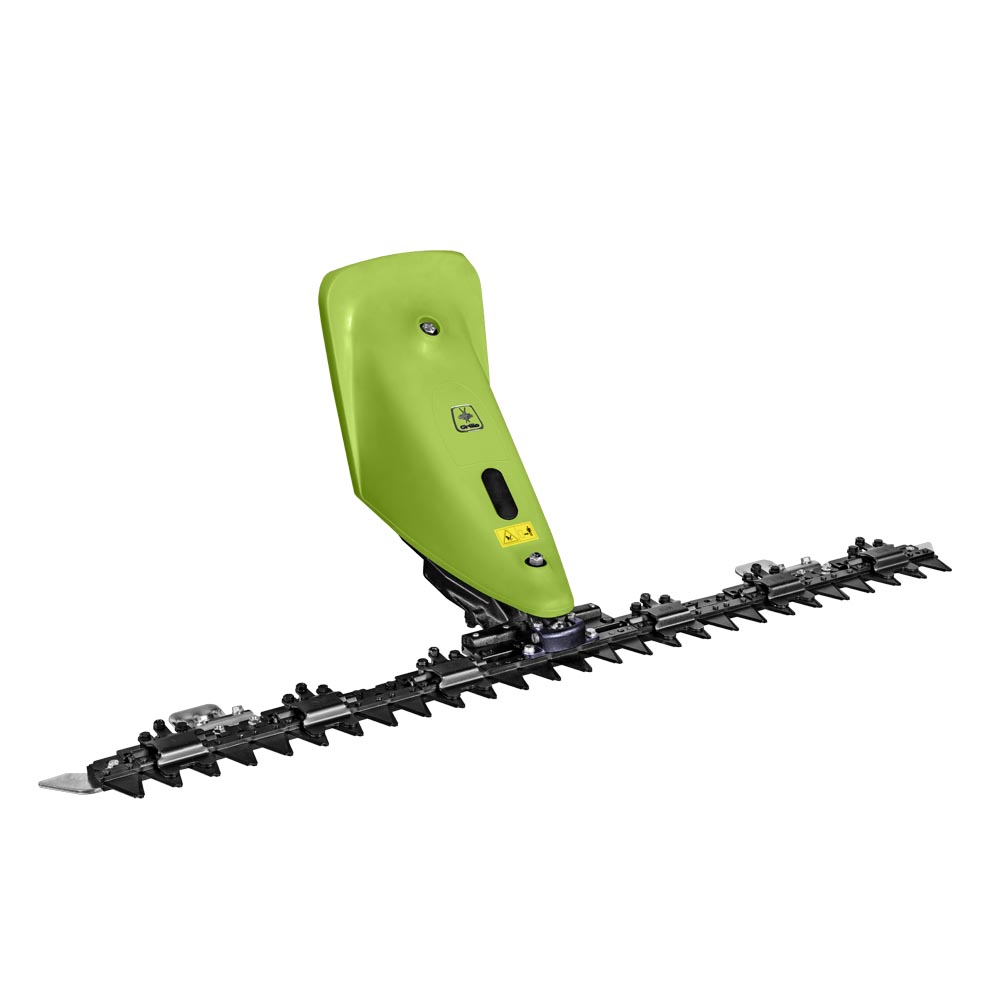

Single-blade PRO cutter bar with crank action (cm 117)

to be applied on G 108 - G 110

item no.: 9M6811 9M7111 946311

weight: 32 kg

to be applied on G 108 - G 110

item no.: 9M6911 9M7111 946311

weight: 35 kg

to be applied on G 108 - G 110

item no.: 9M6811 998811

weight: 39 kg

to be applied on G 108 - G 110

item no.: 9M6911 998811

weight: 42 kg

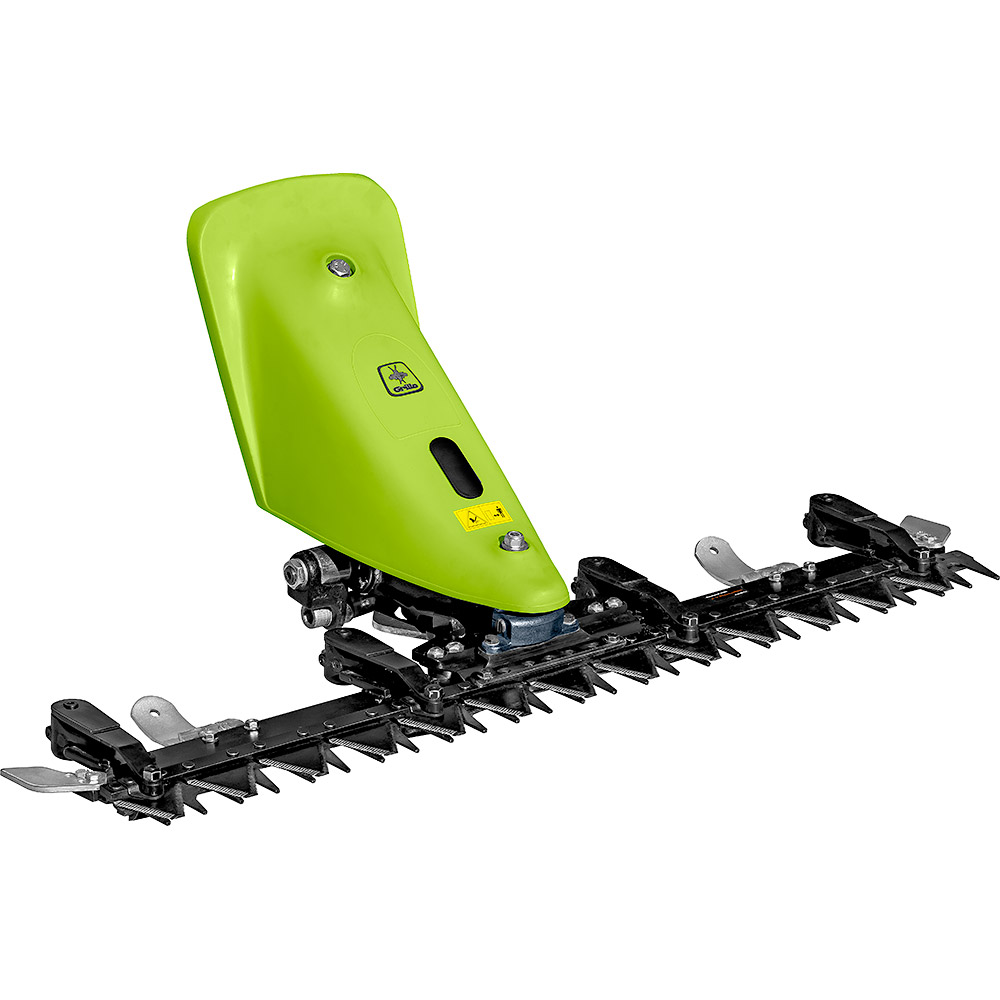

132 cm professional double cutting-bar with oil-bath movement

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9

item no.: 996011 999011 946311

weight: 52 kg

132 cm professional double cutting-bar with oil-bath movement and self-regulating elastic hold-down clamps (Busatis Austria System)

to be applied on G 108 - G 110

item no.: 9M7111 946311

weight: 15 kg

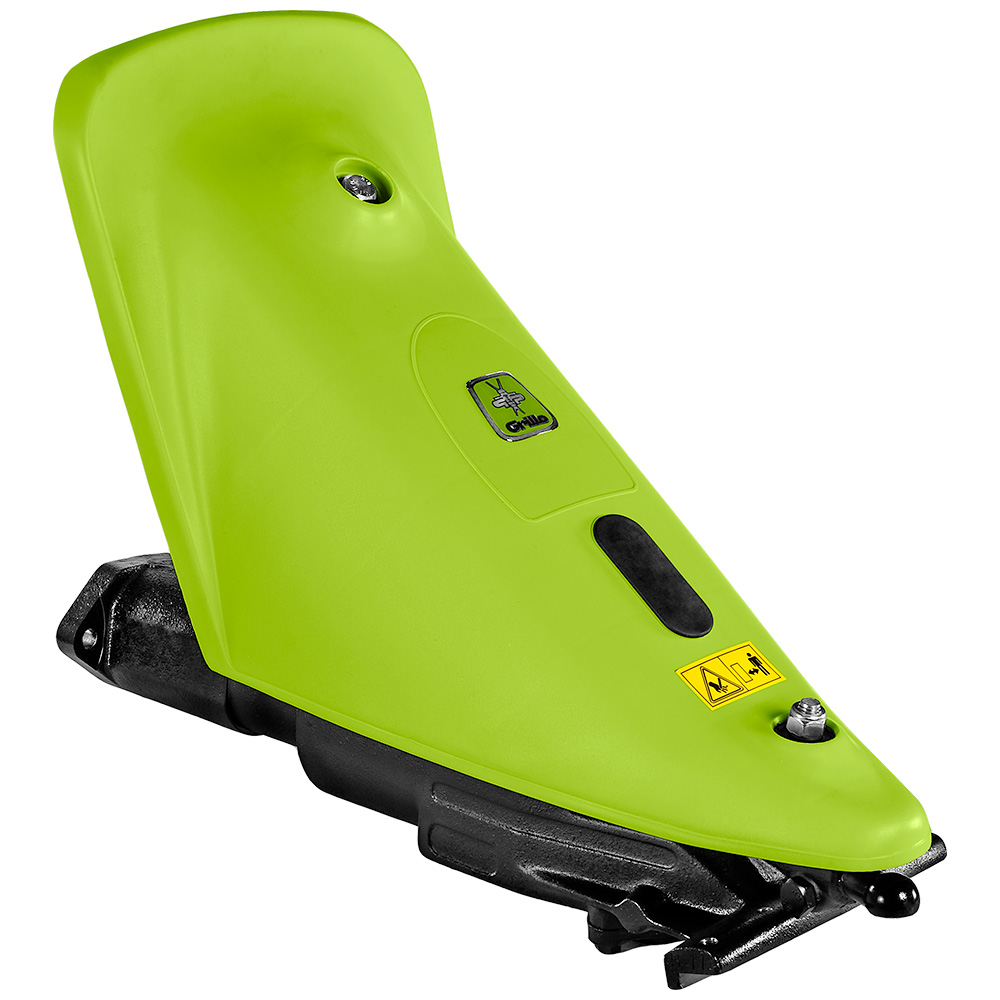

Cutter bar oil bath action

to be applied on G 108 - G 110

item no.: 998811

weight: 22 kg

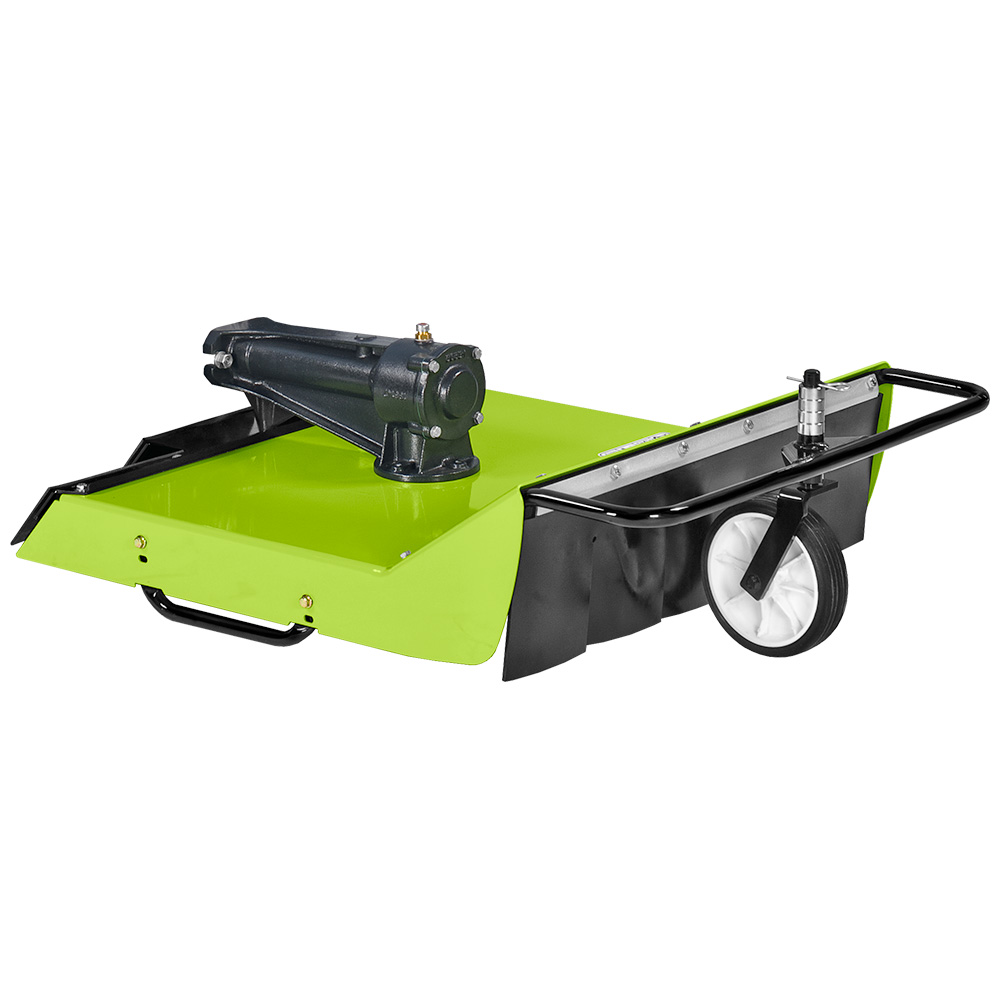

Rotary cutter 75 cm

to be applied on G 108 - G 110

item no.: 9M1111 946311

weight: 60 kg

With blade brake, pivoting front wheel and skid shoes.

(For diesel engines item 9G4812 needed).

Weight for grass cutter for diesel engine

to be applied on G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF

item no.: 9G4812

weight: 6 kg

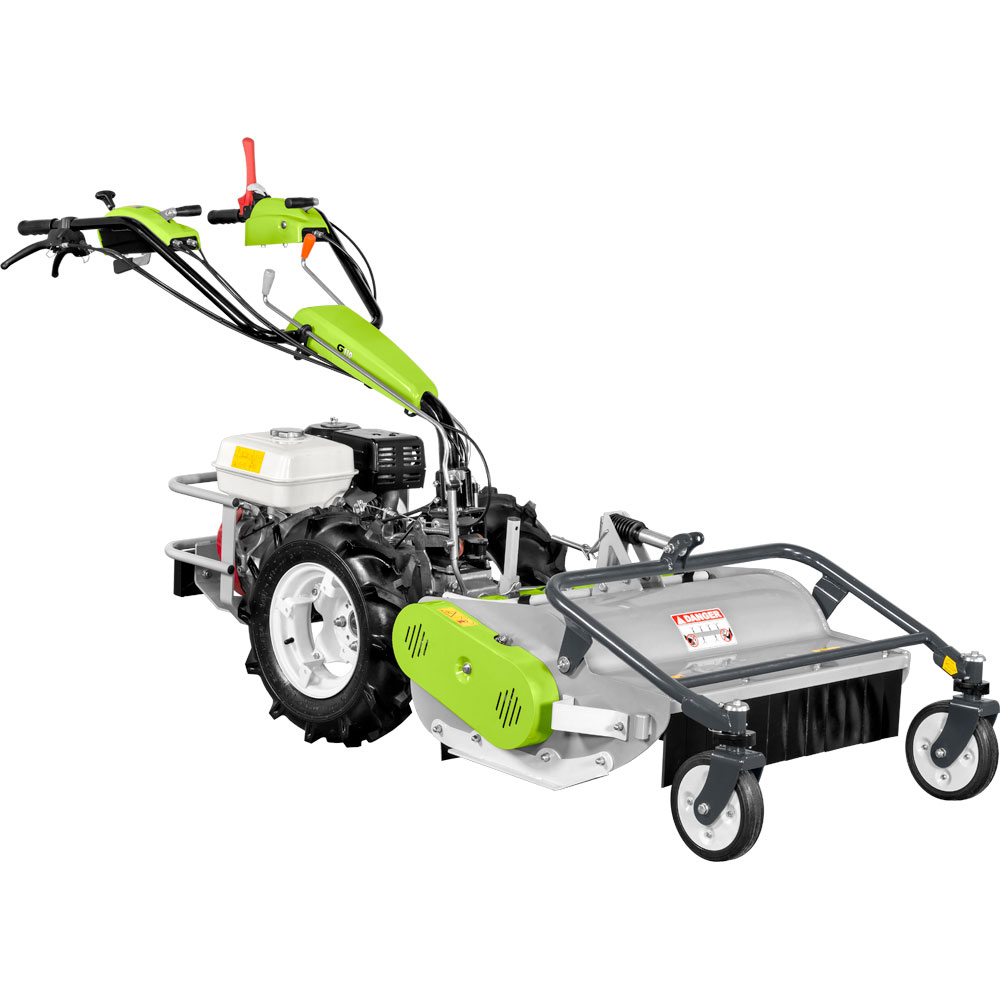

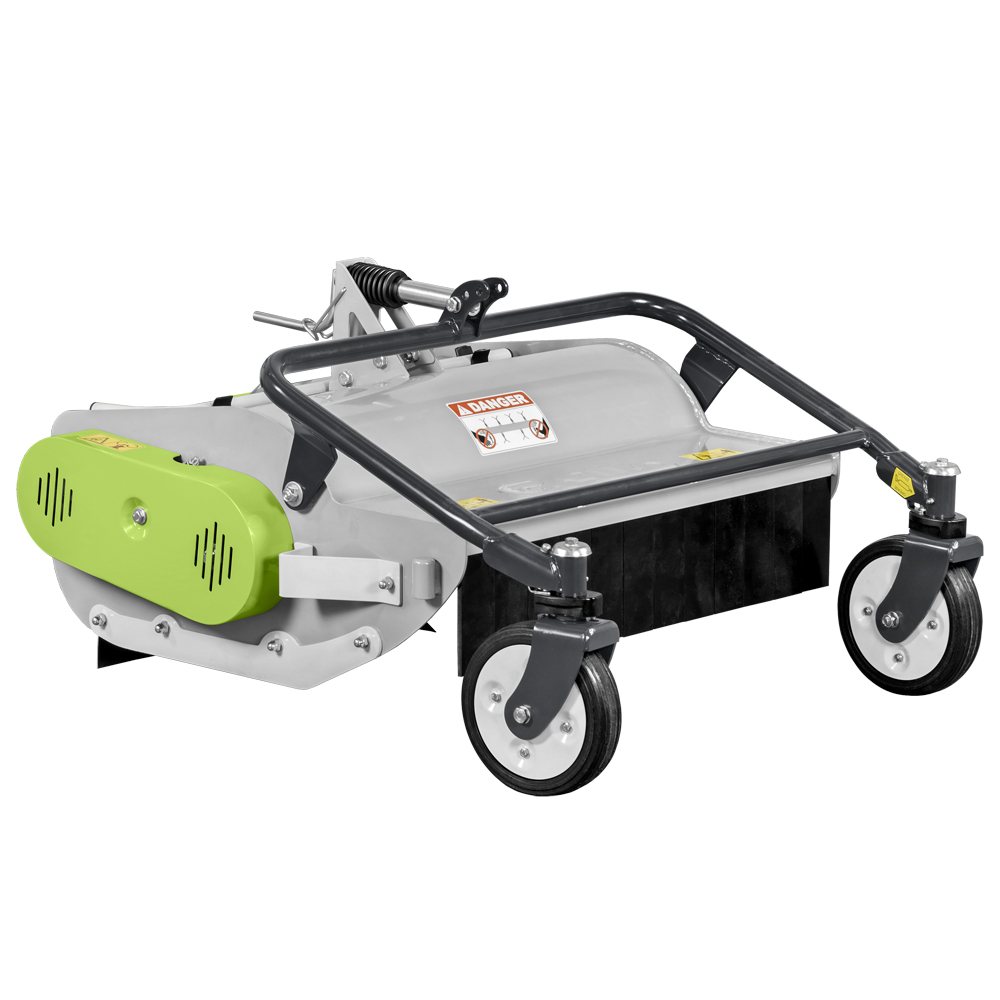

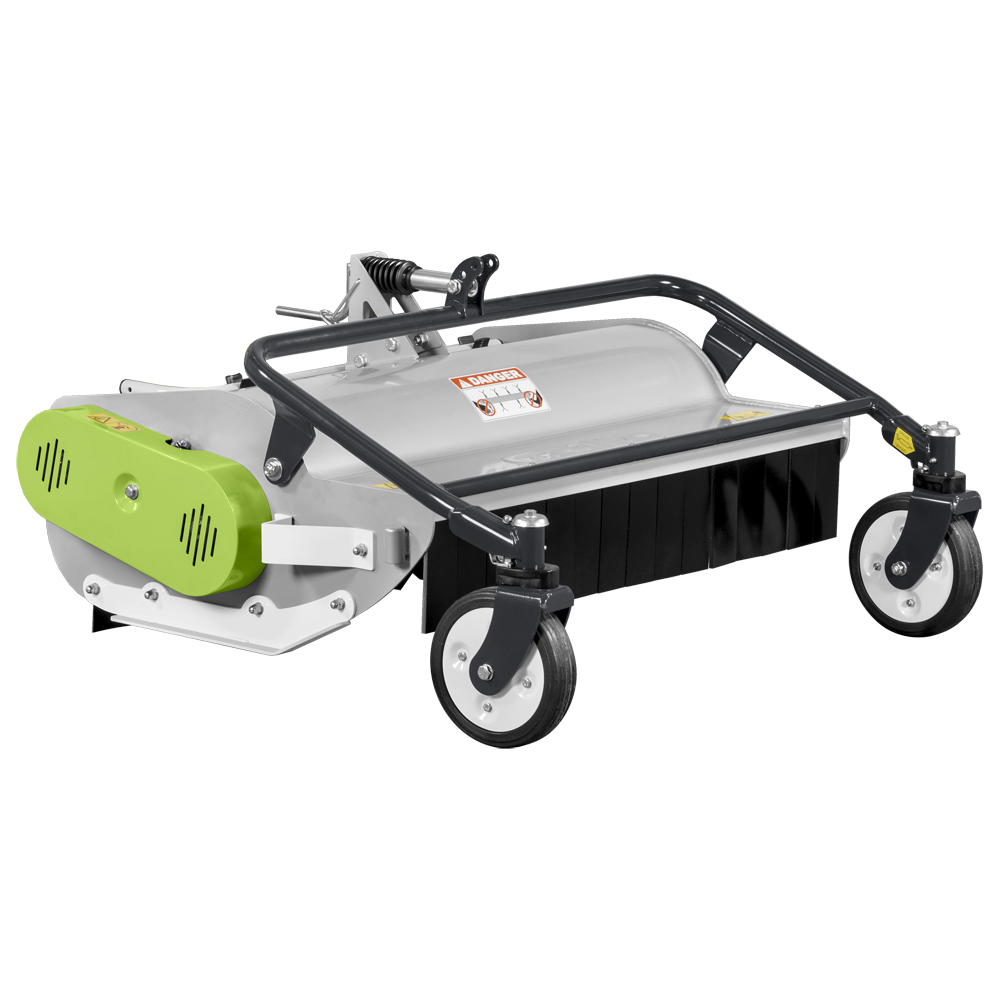

All purpose flail, 68 cm

to be applied on G 108 - G 110

item no.: 9G6311

weight: 75 kg

Scarifier kit for all purpose flail 68 cm

to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 85d - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9

item no.: 9G6411

weight: 1.6 kg

All purpose flail 85 cm

to be applied on G 108 - G 110

item no.: 9G8311

weight: 80 kg

Scarifier kit for all purpose flail 85 cm

to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d - GF 3 - GF 3DF - GH 9

item no.: 9G7011

weight: 2,5 kg

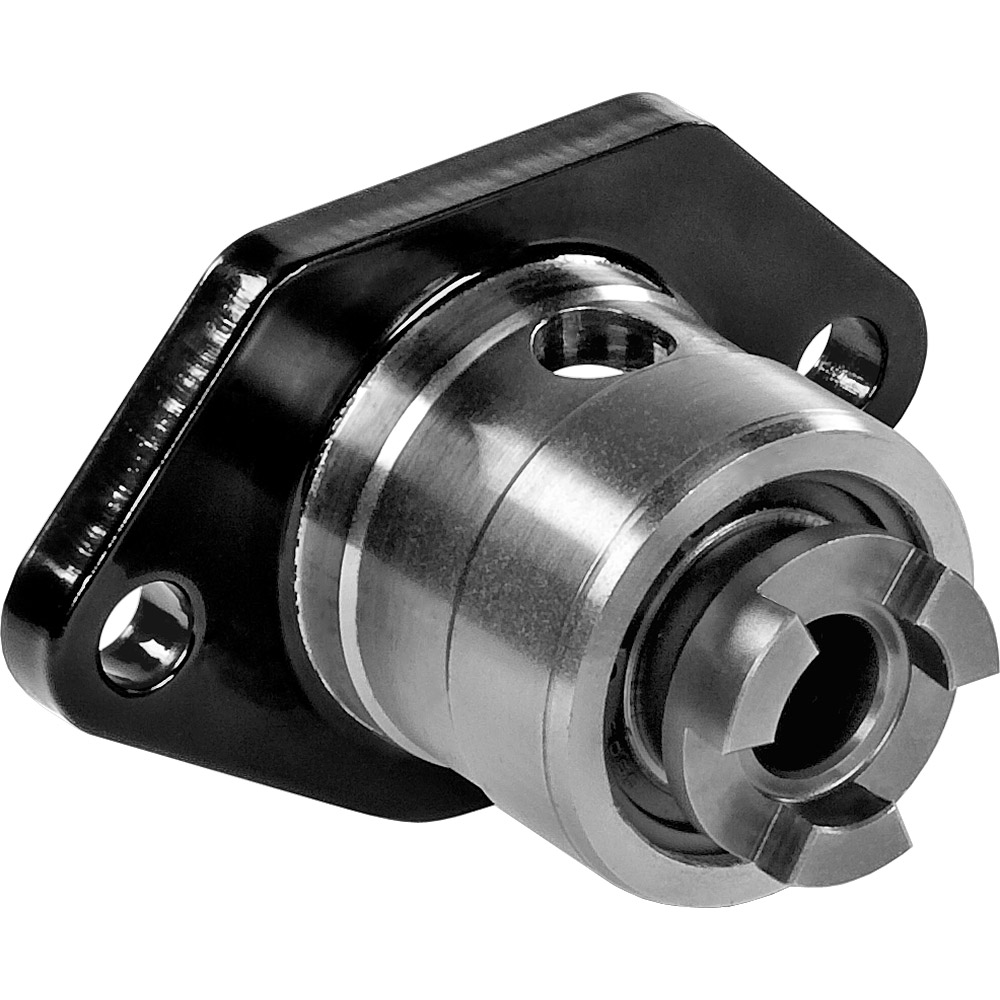

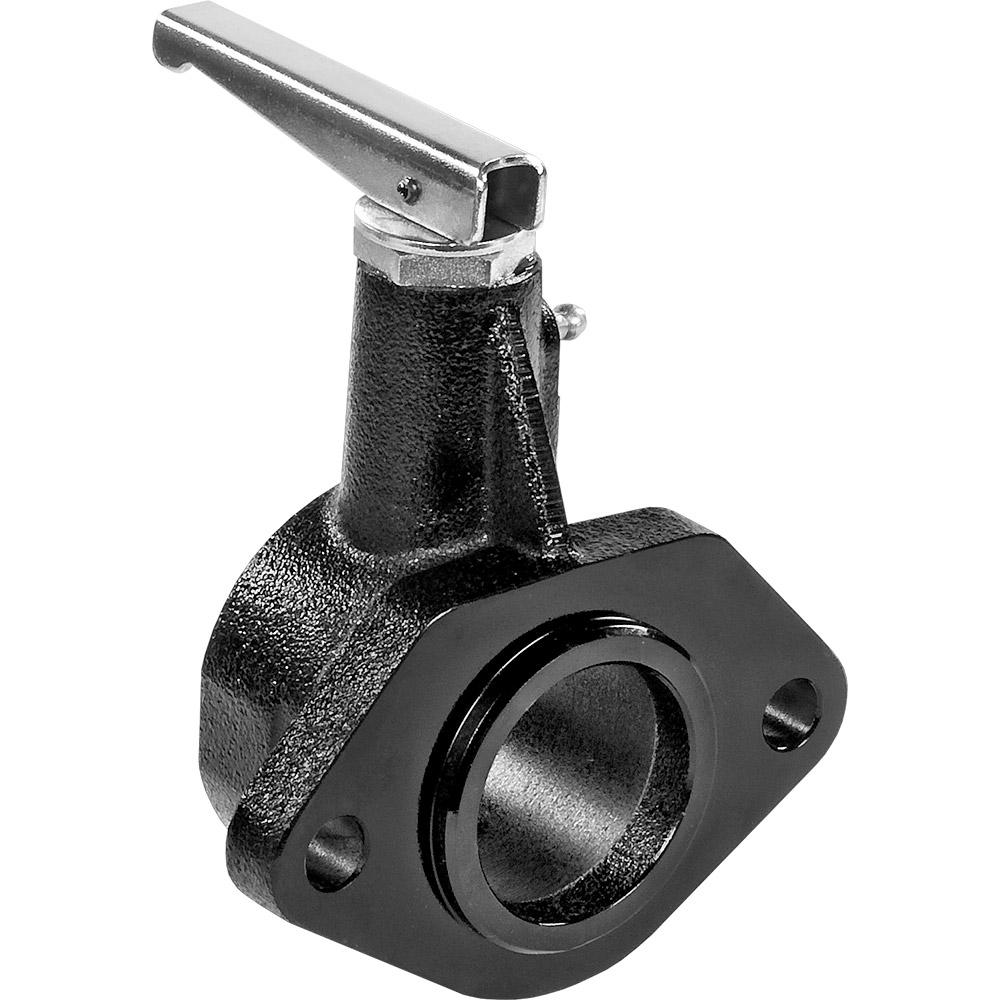

Rear coupling assembly for quick coupling (implement side)

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9

item no.: 946511

weight: 2.5 kg

Front coupling assembly for quick coupling (machine side)

to be applied on G 108 - G 110 - GH 7 - GH 8 - GH 9

item no.: 946911

weight: 2.5 kg

Frame for attachments for furrow plough

to be applied on G 107d - G 108 - G 110 - G 85d

item no.: 945322

weight: 9 kg

Single furrow plough - item no. 945322 needed, pneumatic wheels 5.00-12 and wheel weights are recommended

to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 85d

item no.: 943122

weight: 12 kg

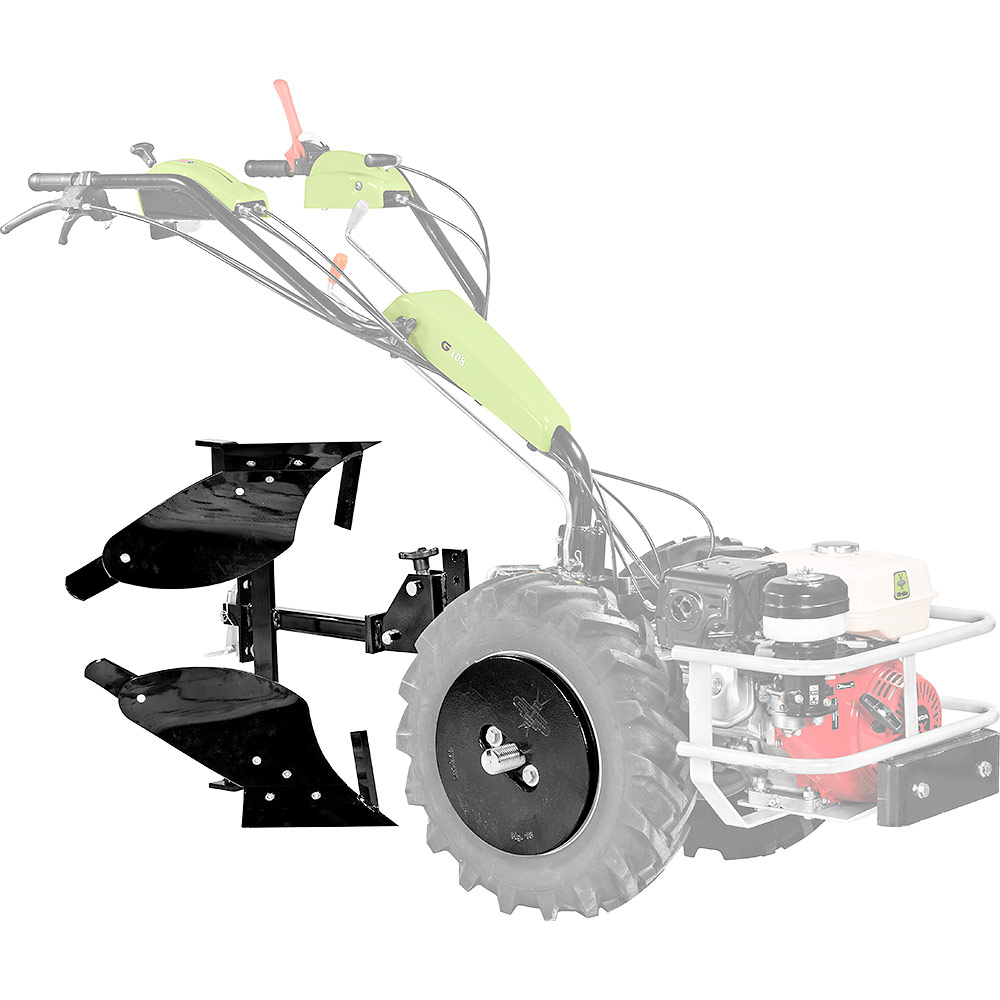

Turn-wrest plough 180°

to be applied on 11500 - 3500 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d

item no.: 943222

weight: 21 kg

on motorhoes item no. 950522 needed;

on walking tractors item no. 945322 needed; we recommend 5.00-12 wheels and wheel weights

Adjustable furrower (item no. 945322 needed, 5.00-12 tyres and wheel weights recommended)

to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d

item no.: 944122

weight: 12 kg

Potato lifter

to be applied on G 107d - G 108 - G 110 - G 131 - G131 BC - G 85d

item no.: 9E6822

weight: 11 kg

Fitted on the back, enables the process of quickly harvesting small crops of root vegetables such as potatoes.

If applied on G85 - G85d - G107d - G108 - G110: item code 945322 needed, 5.00-12 tyres and wheels weights are suggested.

If applied on G131: item code 948522 needed, 6.50/80-12 tyres and and wheels weights code 9G2512 are suggested.

Adjustable furrower behind the rotary tiller (cod. 945022)

to be applied on G 107d - G 108 - G 110 - G 55 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO

item no.: 945022

weight: 5 kg

This implement carry out accurate furrows of any dimension. The furrower behind the rotary tiller slots into the back of the rotary tiller so enabling rotavating and ridging in one pass.

Not applicable on code 994711.
