G 52
Ideal for both horticulture and gardening!

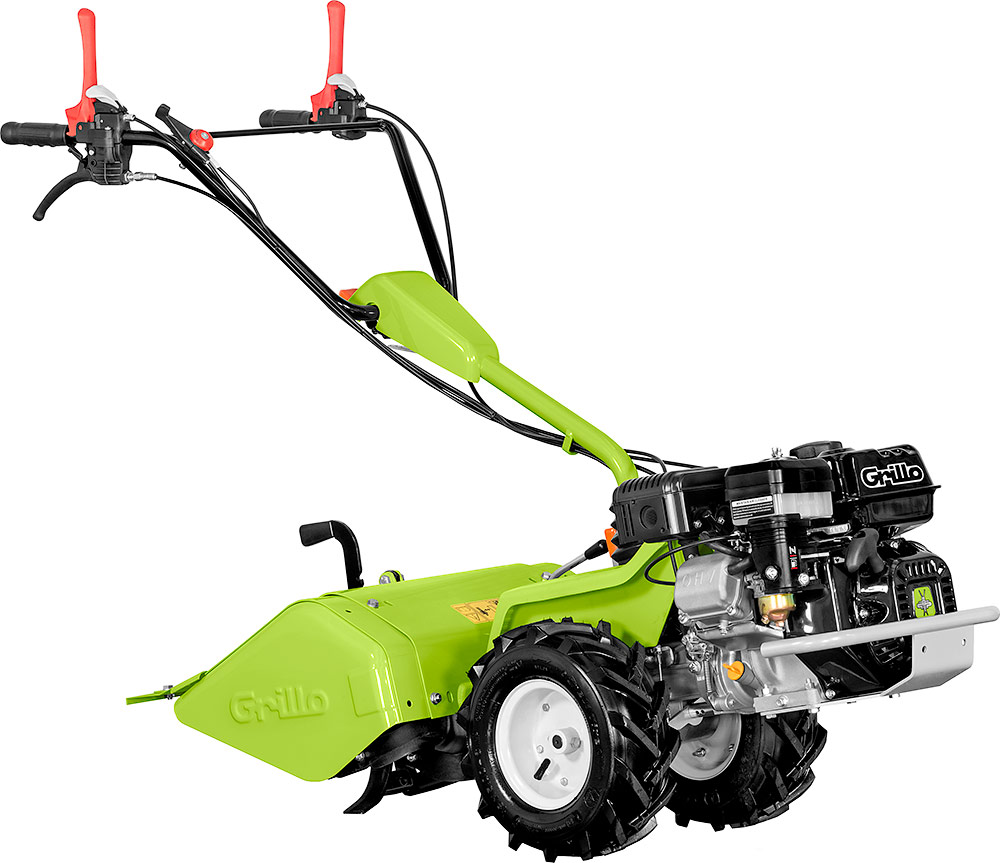

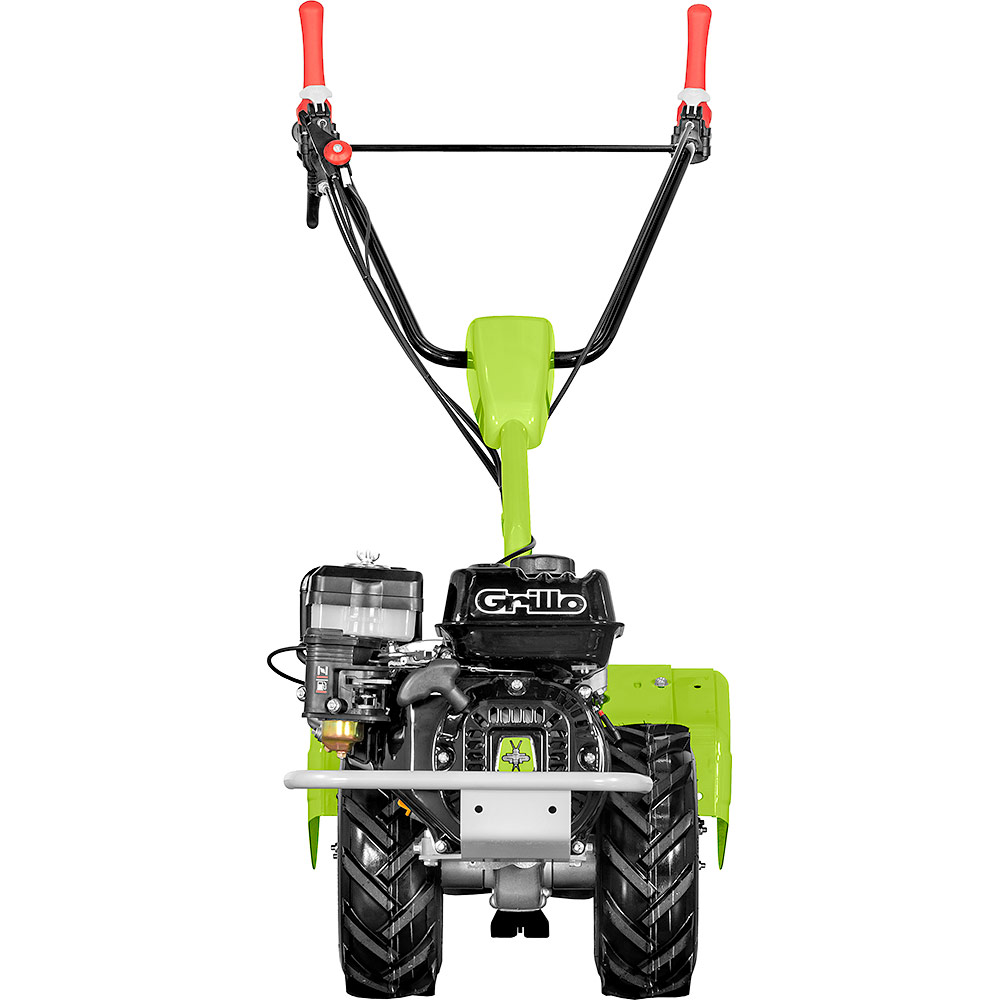

The Grillo G52 is a reversible, compact walking tractor, suitable for working in limited spaces both in horticulture and in gardening.
It is equipped with a 2 speed-gearbox with gears in oil-bath with forward and a reverse gear. It’s a comfortable walking tractor, easy to use and safe.
Several rear and front attachments can be connected to the machine, thanks to its 180° reversible handlebar: rotary tiller, sickle bar, mower etc. can be fitted via a coupling without the help of tools.
It is possible to achieve greater stability on slopes by widening the wheel track by 10 or 17 cm by means of the appropriate Grillo wheel extensions.
|
Engine |
Loncin G200FA Start recoil starter Supply fuel Displacement 196 cc, 1 Cylinder Power 5.5 HP (4.1 kW) Air cooled Oil bath air filter |
|
Fuel tank capacity | 3 L |
|
Transmission | with oil bath gears |
| Gearbox | 1 forward gear + 1 reverse gear | |
|
Standard rotary tiller | Adjustable rotary tiller with x 4 tines. Working width 500 mm |
| Hoes system diametre | 26 cm | |
| Working width | 500 mm (370 mm with Kit cod. 929512) | |
| Working depth | 13 cm | |
| P.T.O. | For the walking tractor version, 644 rpm with anticlockwise rotarion. For the sickle bar version 965 rpm with clockwise rotation | |
|
Available tyres | Tractor 13x5.00-6 wheels |
| Speed | For the walking tractor version 1st gear 1,4 km/h, reverse gear 2,2 km/h. For the sickle bar version 1st gear 2,2 km/h, reverse gear 1,4 km/h. For the SPECIAL VERSION FOR OLIVES 1st gear 2,1 km/h, reverse gear 3,2 km/h | |
| Handlebar | height and side adjustment. Fitted on anti-vibration blocks | |
| Standard features | Attachments quick coupling having 50 mm diameter | |
| Safety devices | ACTIVE COUPLING AND AUTOMATIC DISENGAGEMENT OF THE TILLER IN REVERSE GEAR | |
|
External sizes of the wheels | 40 cm with 13x5.00-6 wheels |
|
Weight | Standard version: 67 kg |
Grillo G 52
Grillo G 52
Grillo G 52
Grillo G 52

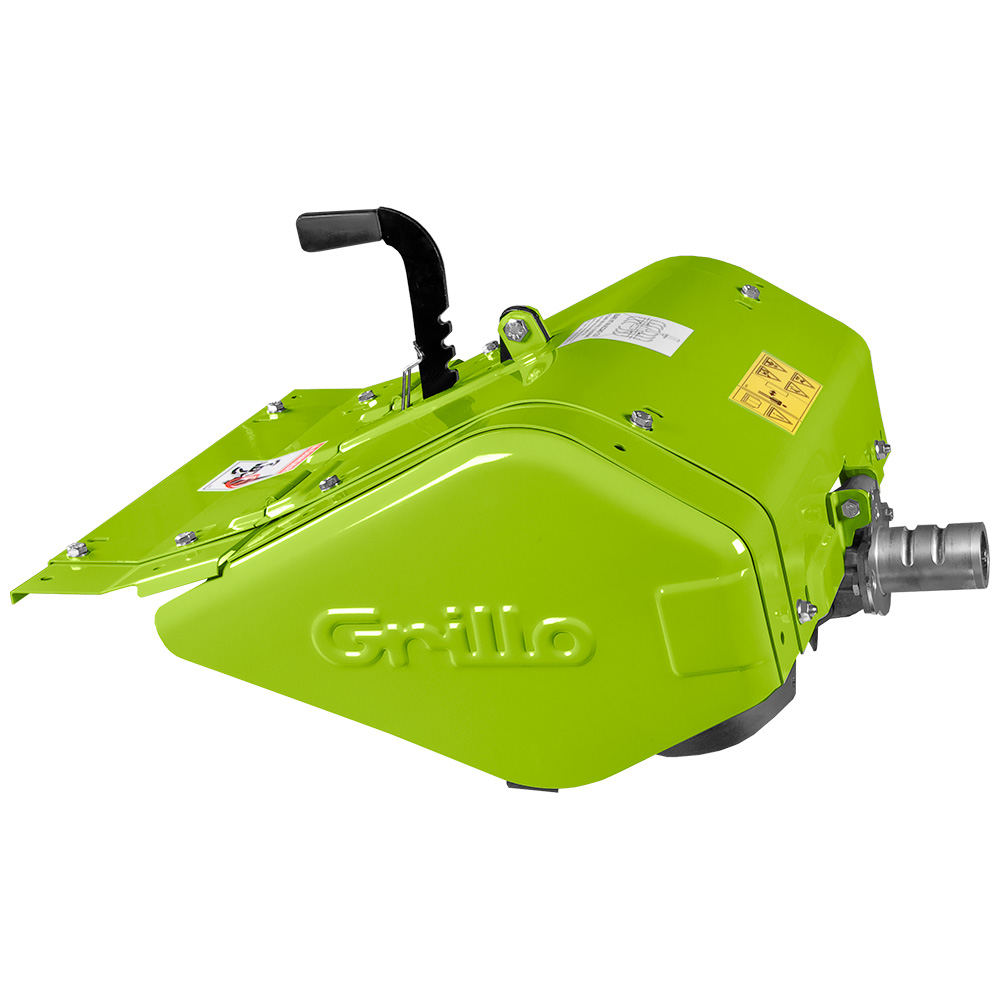

Adjustable rotary tiller 50 cm (4x4 tines)
![Adjustable rotary tiller 50 cm [4X4 tines] - COD. 978511](/data/img_prodotti/A378.jpg "Adjustable rotary tiller 50 cm [4X4 tines] - COD. 978511")
to be applied on G 52
item no.: 978511
weight: 24 kg

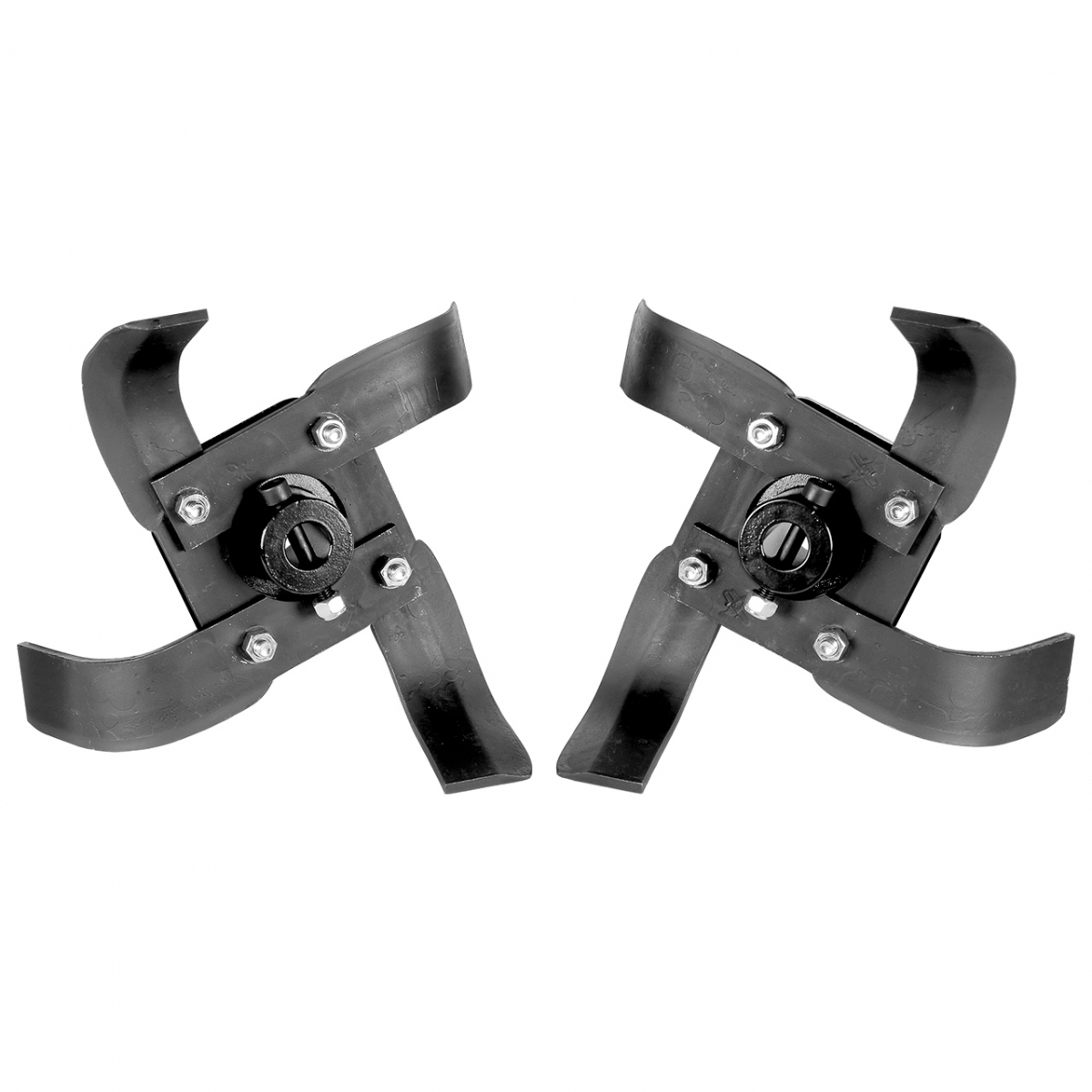

Kit to adjust tiller at 37 cm
to be applied on G 52
item no.: 929512
weight: 5 kg

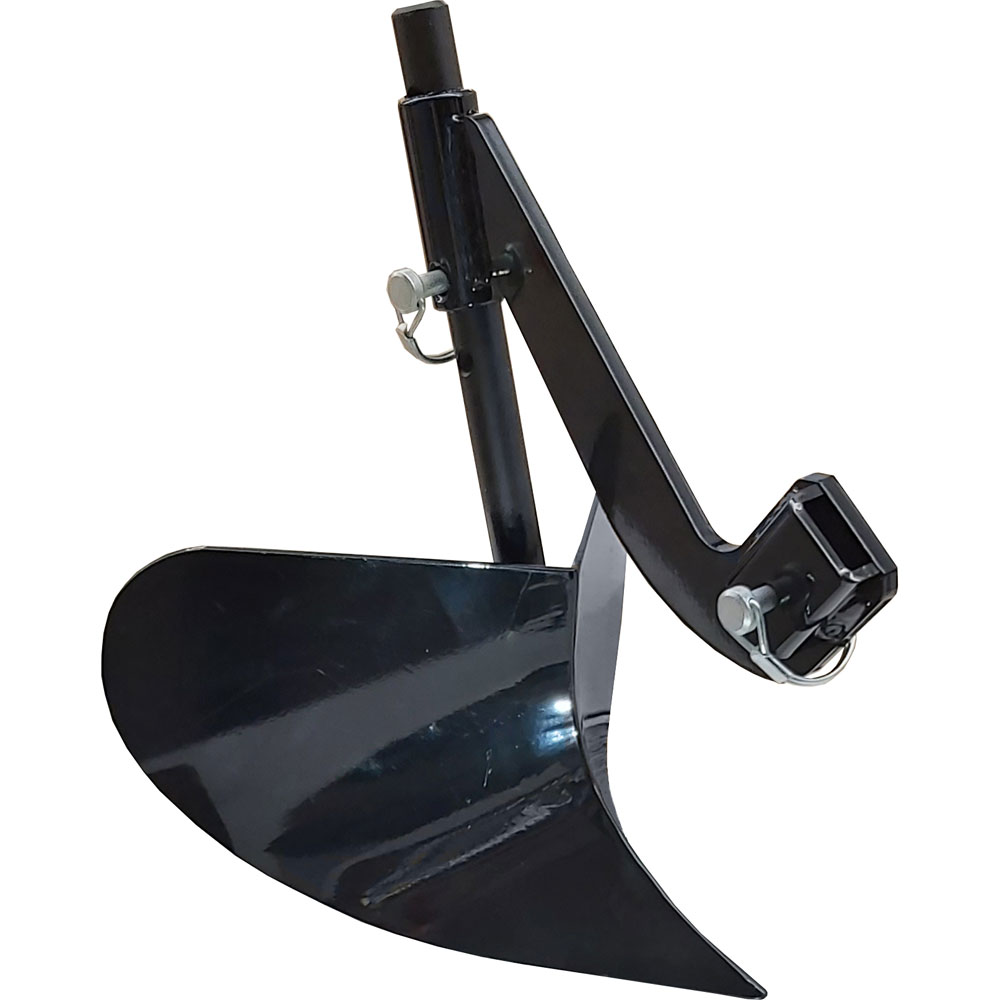

Furrower behind the rotary tiller (cod. 944622)
to be applied on G 45 - G 46 - G 52 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO
item no.: 940011
weight: 3 kg

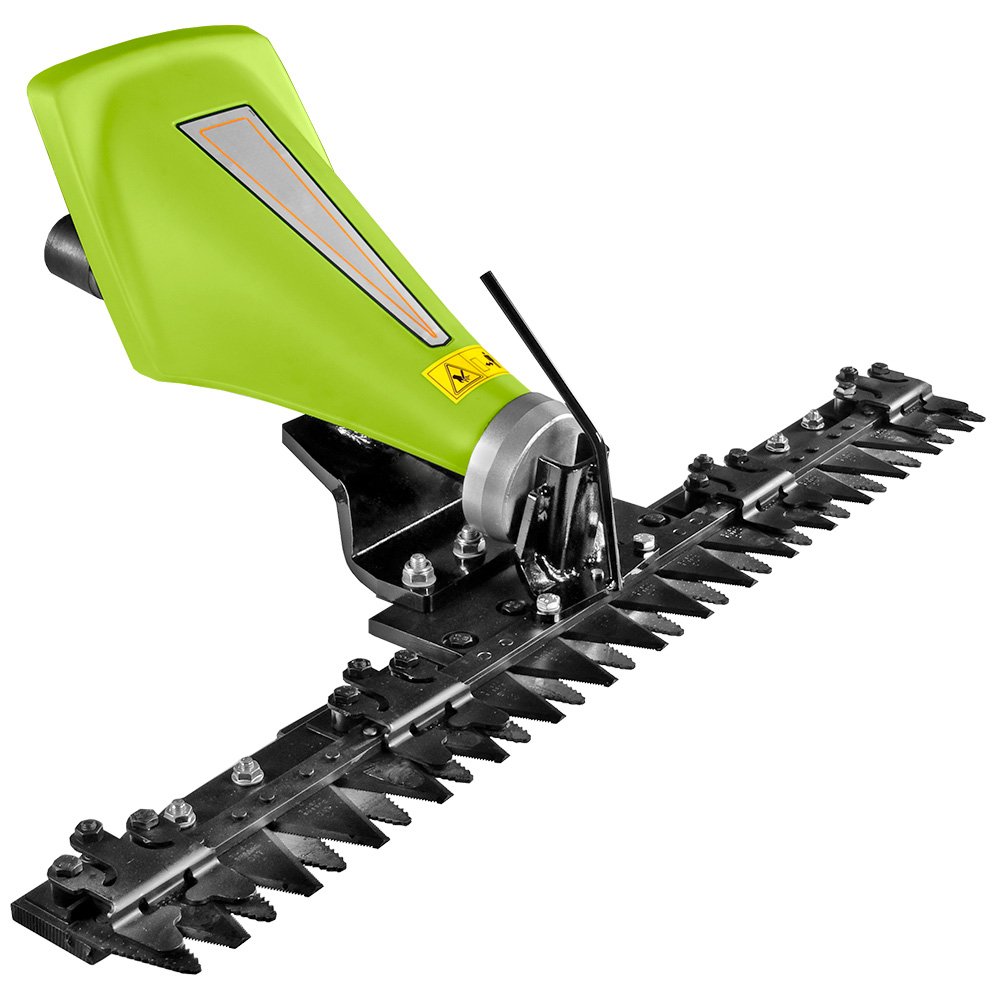

Central cutter bar 86 cm Mulching
to be applied on G 52 - GF 1
item no.: 9L1111
weight: 23 kg

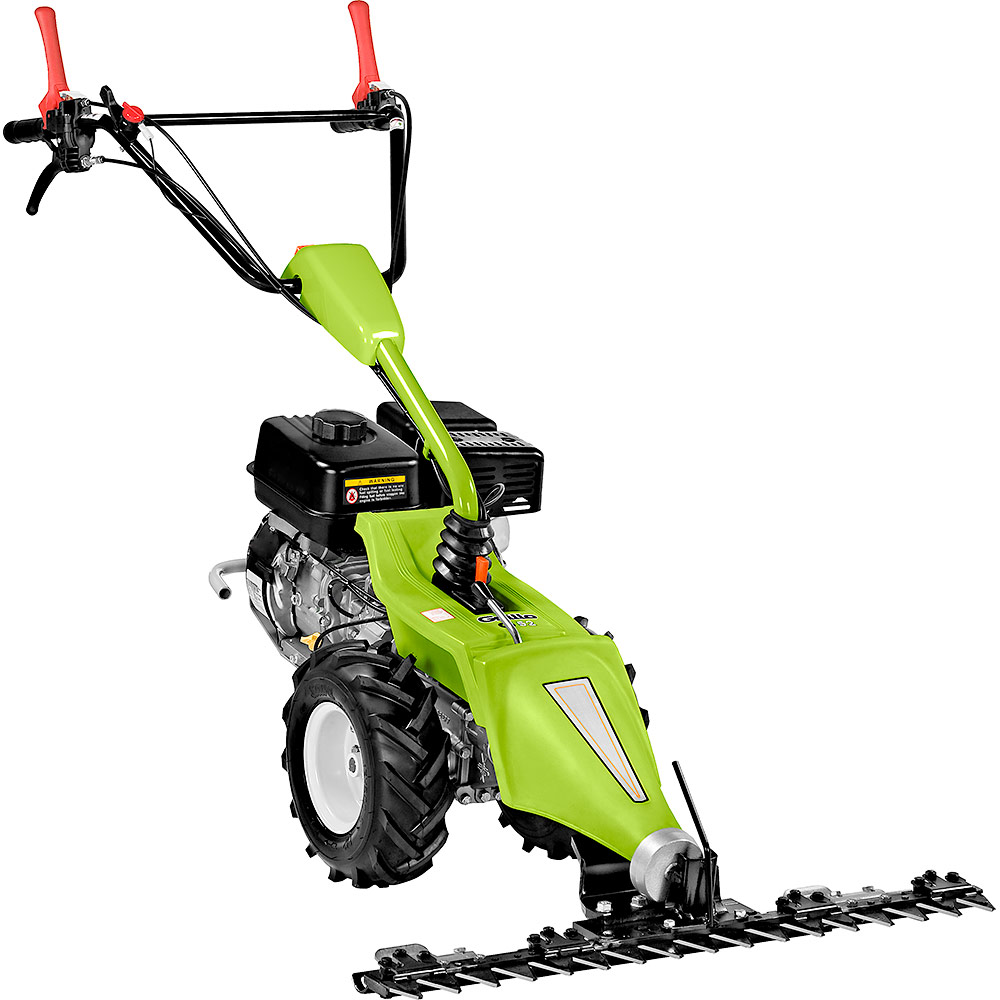

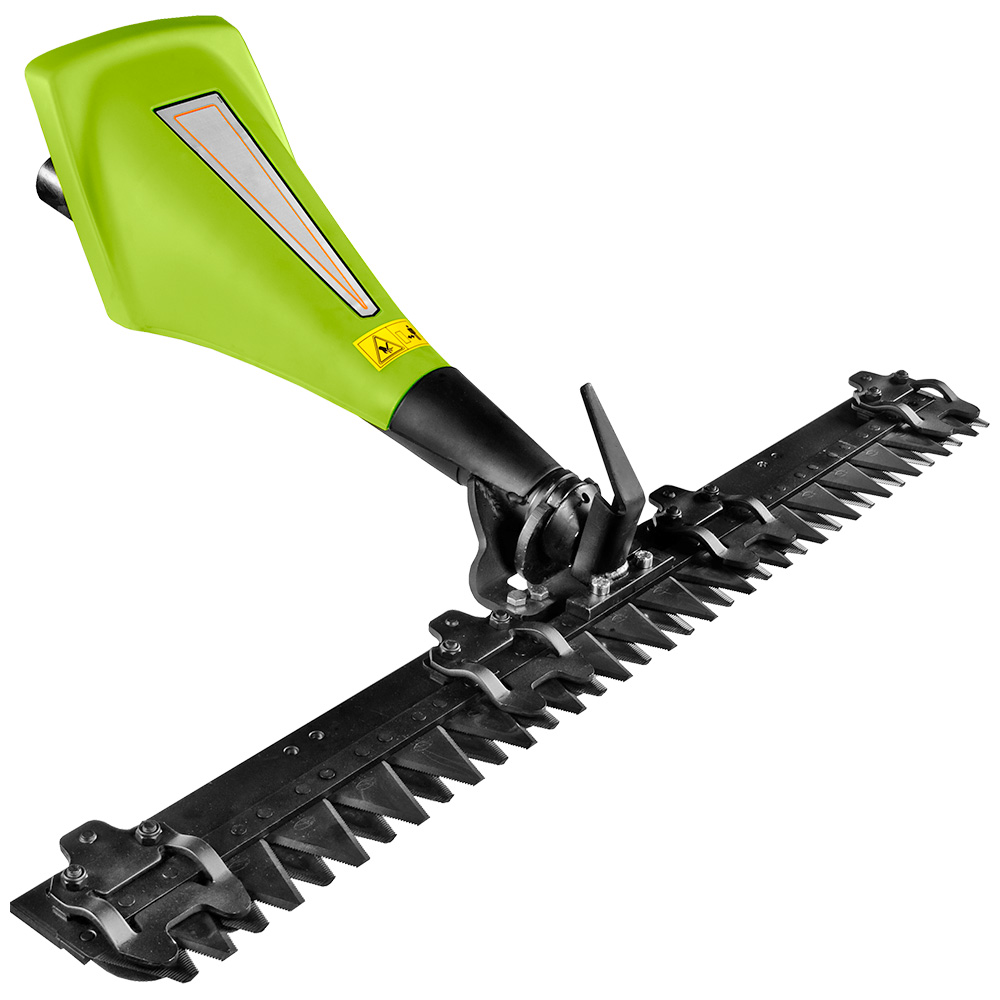

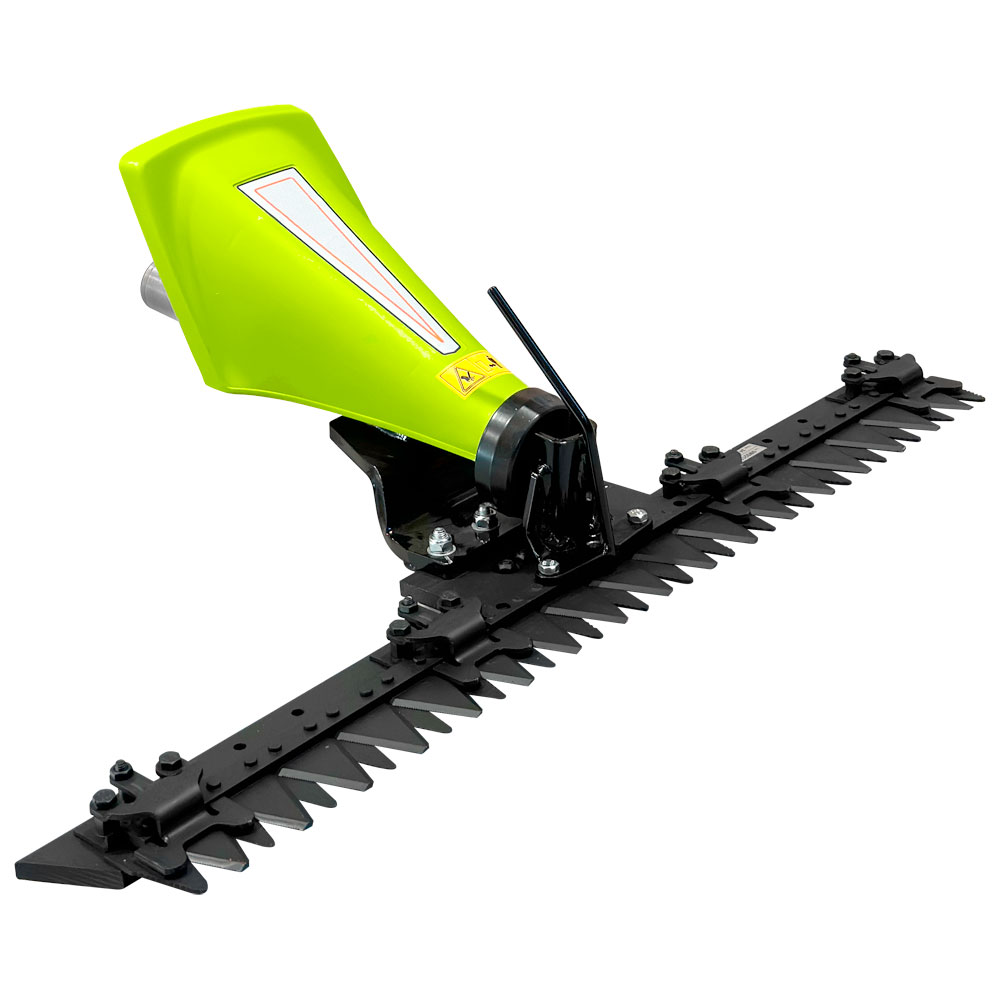

Double blade central cutter bar 96 cm
to be applied on G 52 - GF 1
item no.: 9L2411
weight: 20 kg

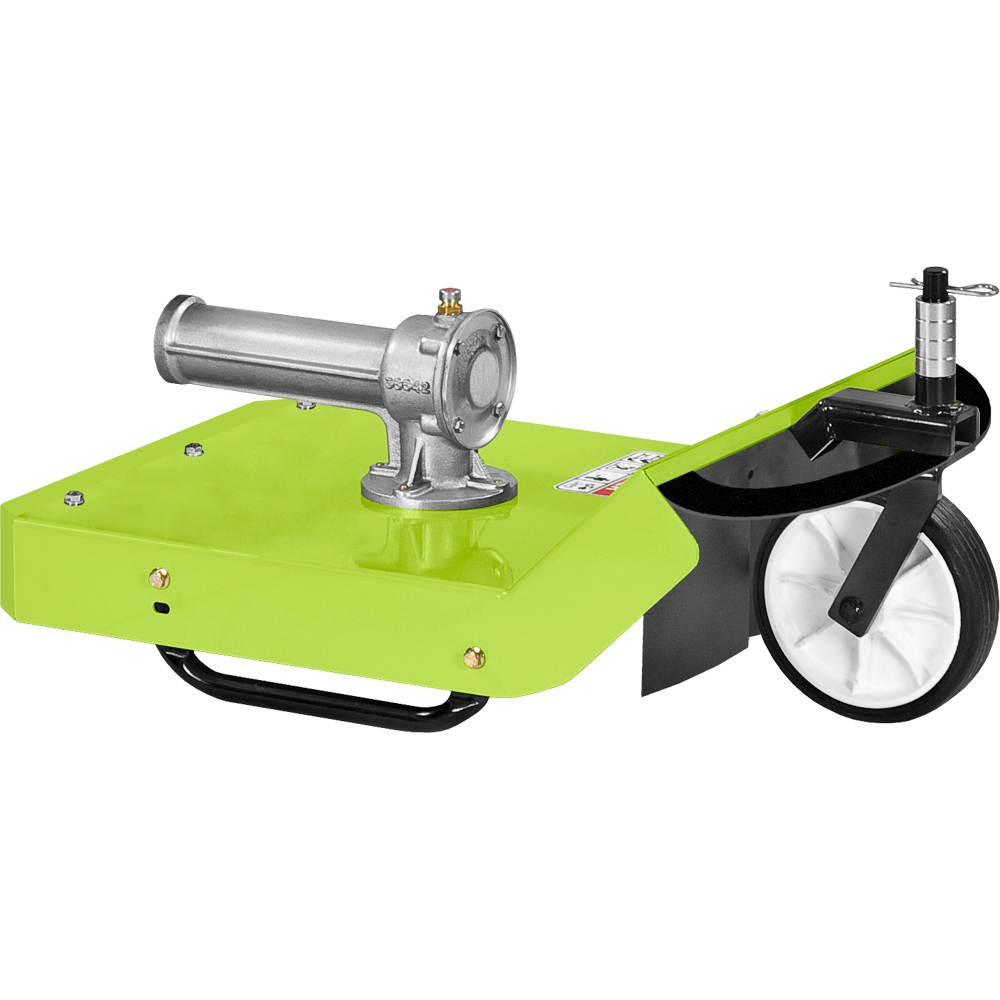

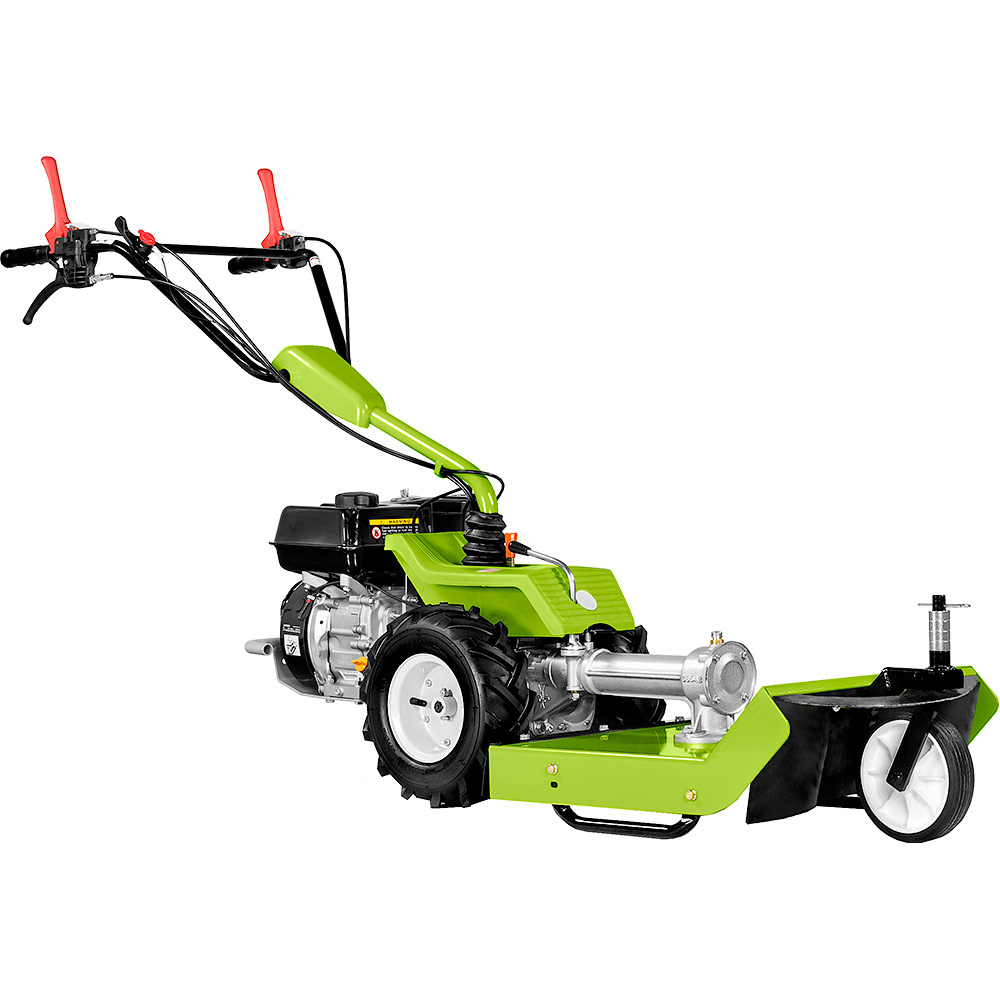

Rotary cutter 50 cm
to be applied on G 52 - GF 1
item no.: 9M5411
weight: 29 kg

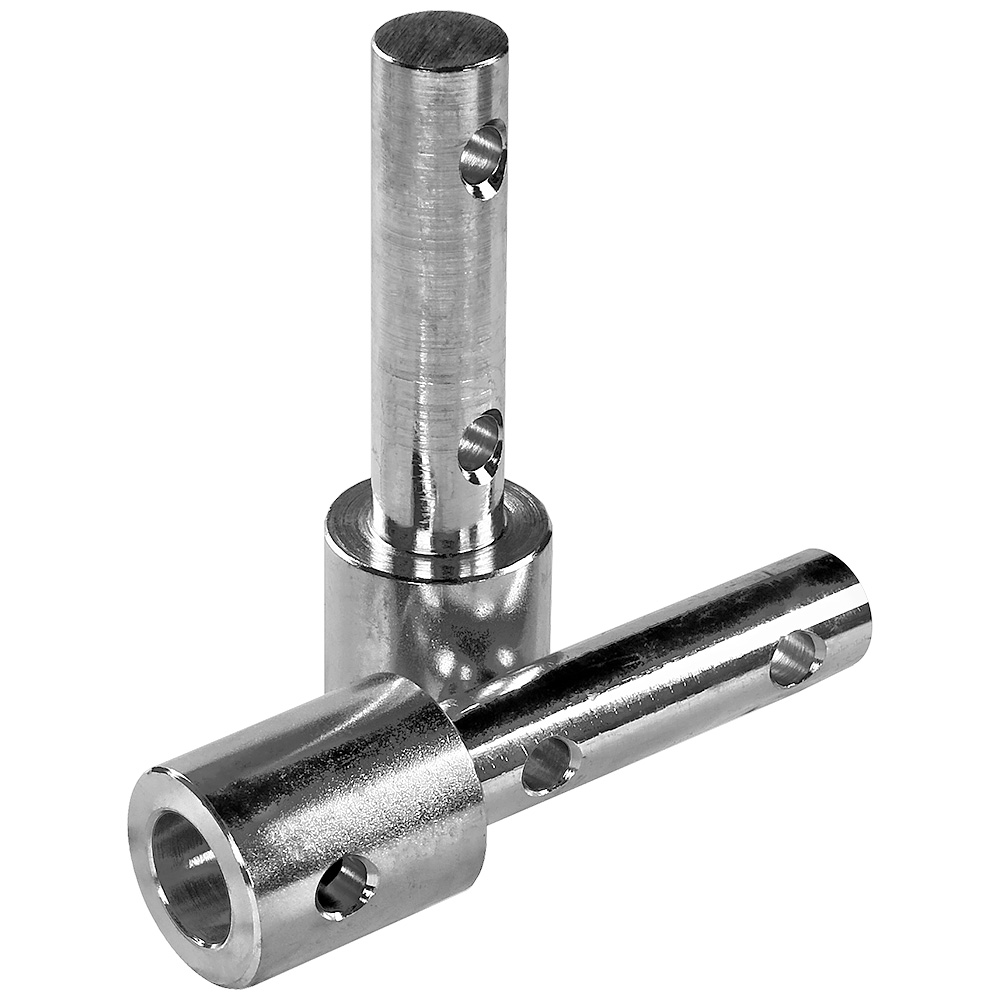

Wheel extensions 10 and 17 cm (pair)
to be applied on G 52 - GF 1
item no.: 936911
weight: 1 kg

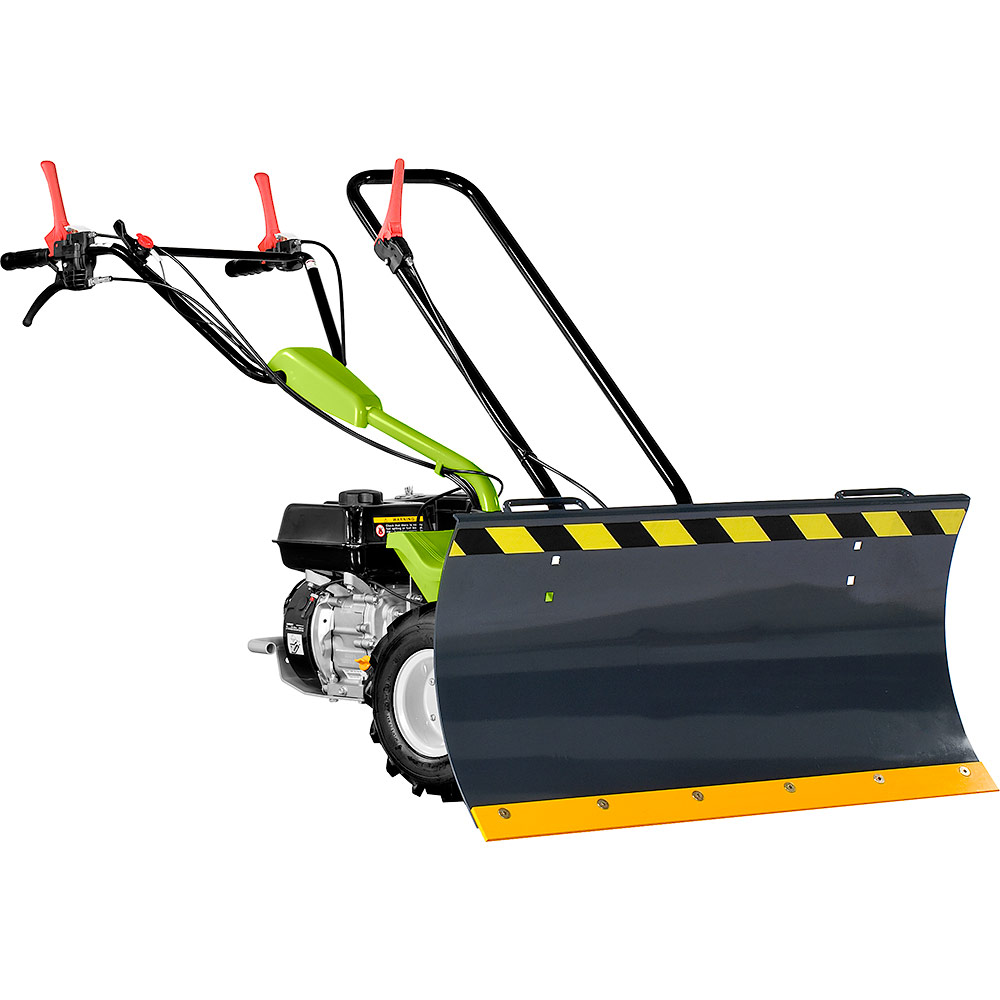

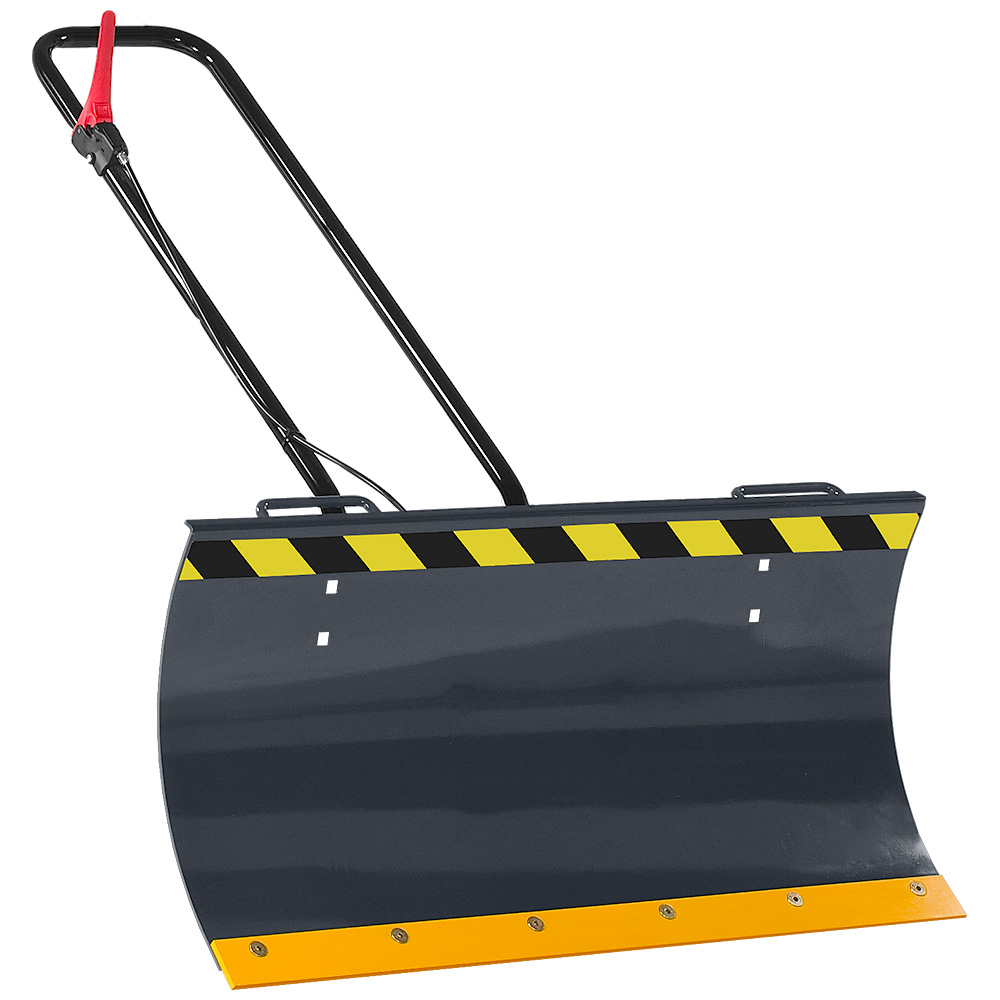

Front blade 80 cm
to be applied on G 52 - GF 1
item no.: 9E6311
weight: 34 kg
Weight for front blade
to be applied on Dumper 507 - G 107d - G 108 - G 110 - G 131 - G131 BC - G 52 - G 55 - G 85d - GF 1 - GF 2 - GF 3 - GF 3DF - GH 7 - GH 8 - GH 9
item no.: 9E6111
weight: 20 kg

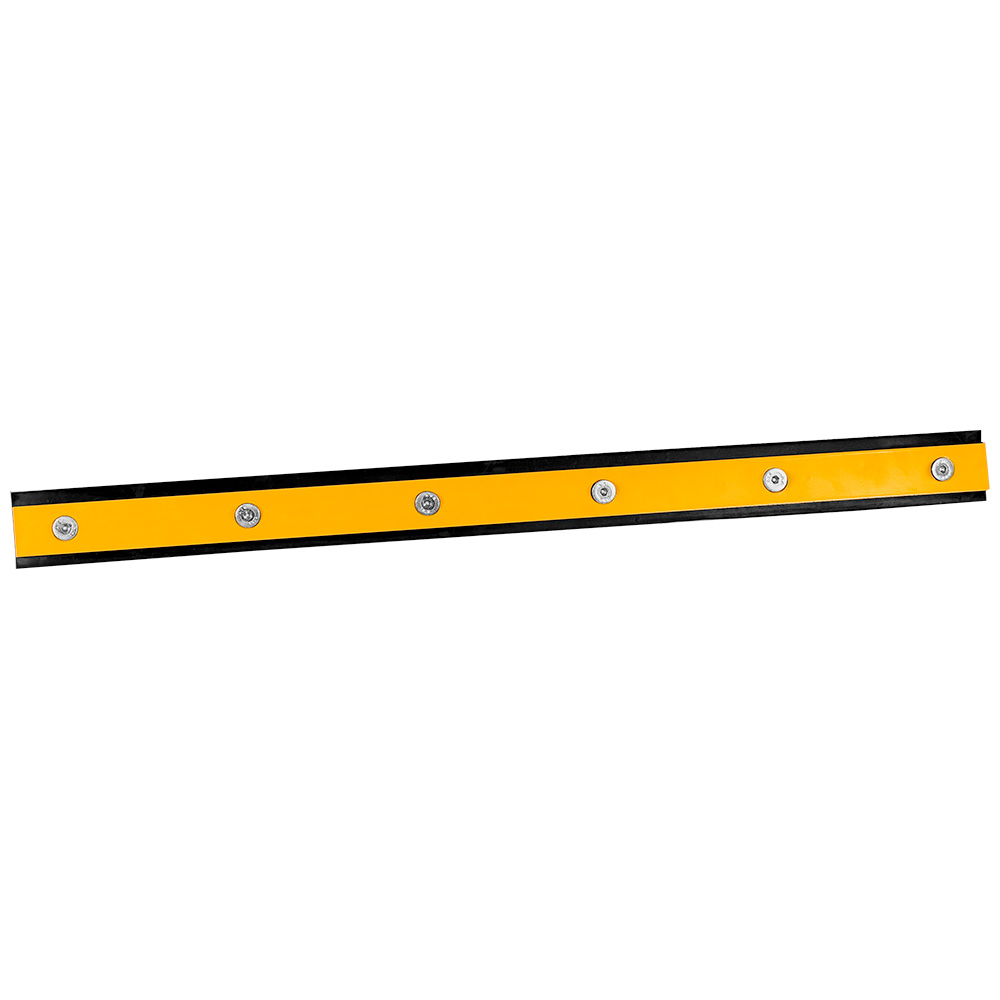

Rubber end for blade 80 cm
to be applied on G 52 - GF 1
item no.: 9E5911A
weight: 1 kg

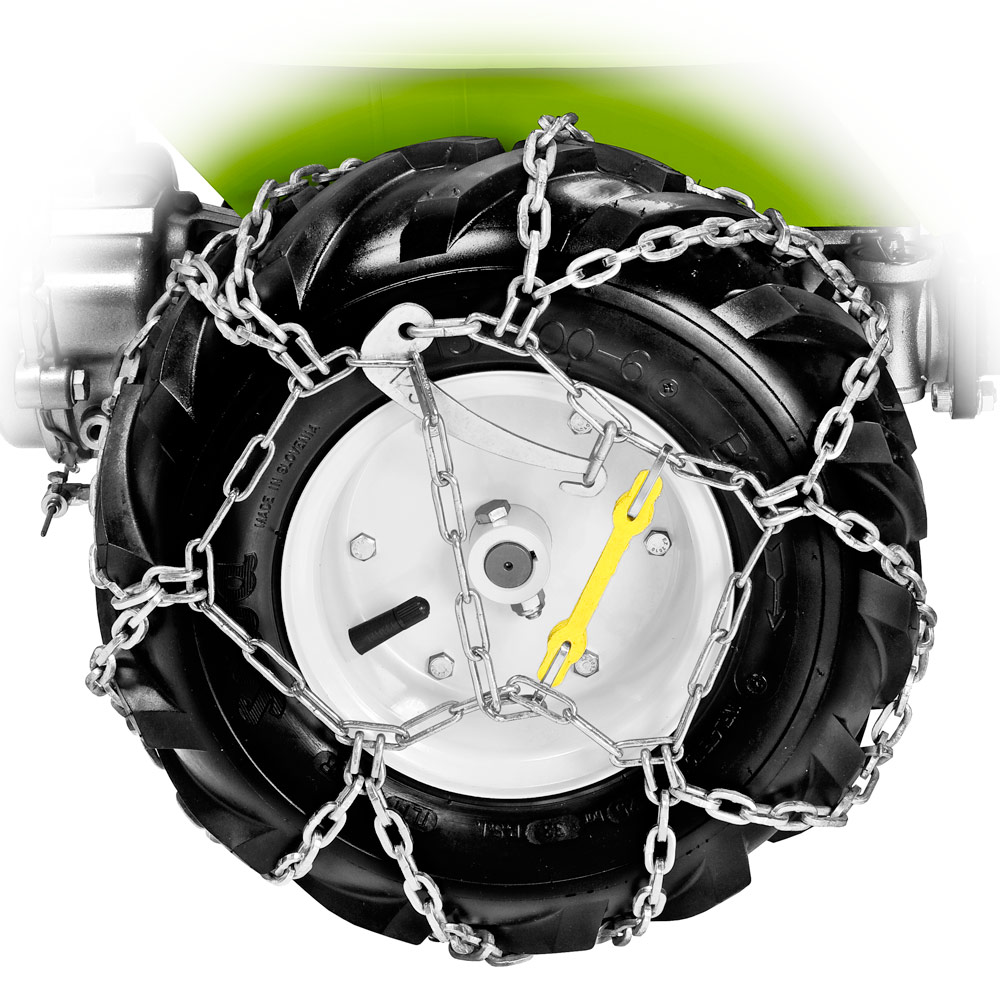

Pair of snow chains for 13x5.00-6
to be applied on G 52 - GF 1
item no.: 9M3322
weight: 2 kg

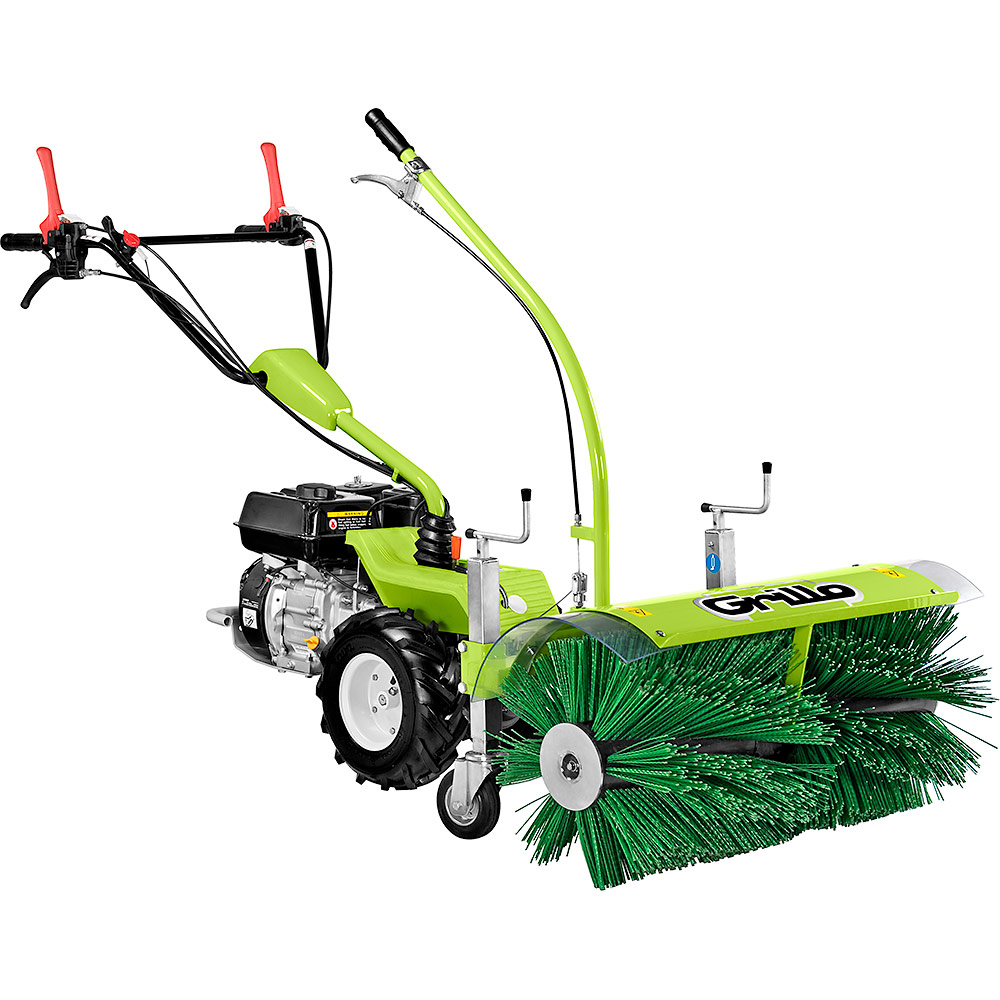

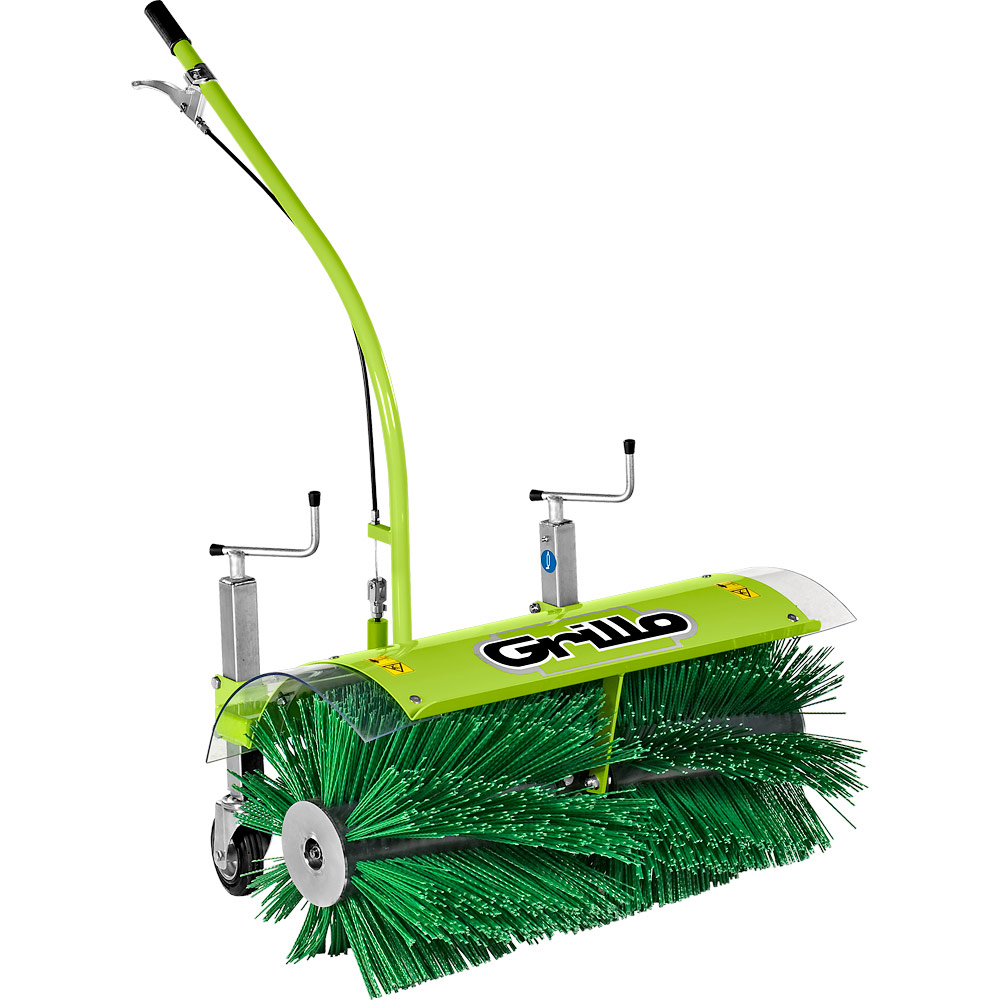

to be applied on G 52 - GF 1
item no.: 9L9922
weight: 50 kg
