G 45
Fitted with a counter – rotating tiller, suitable for hard soils

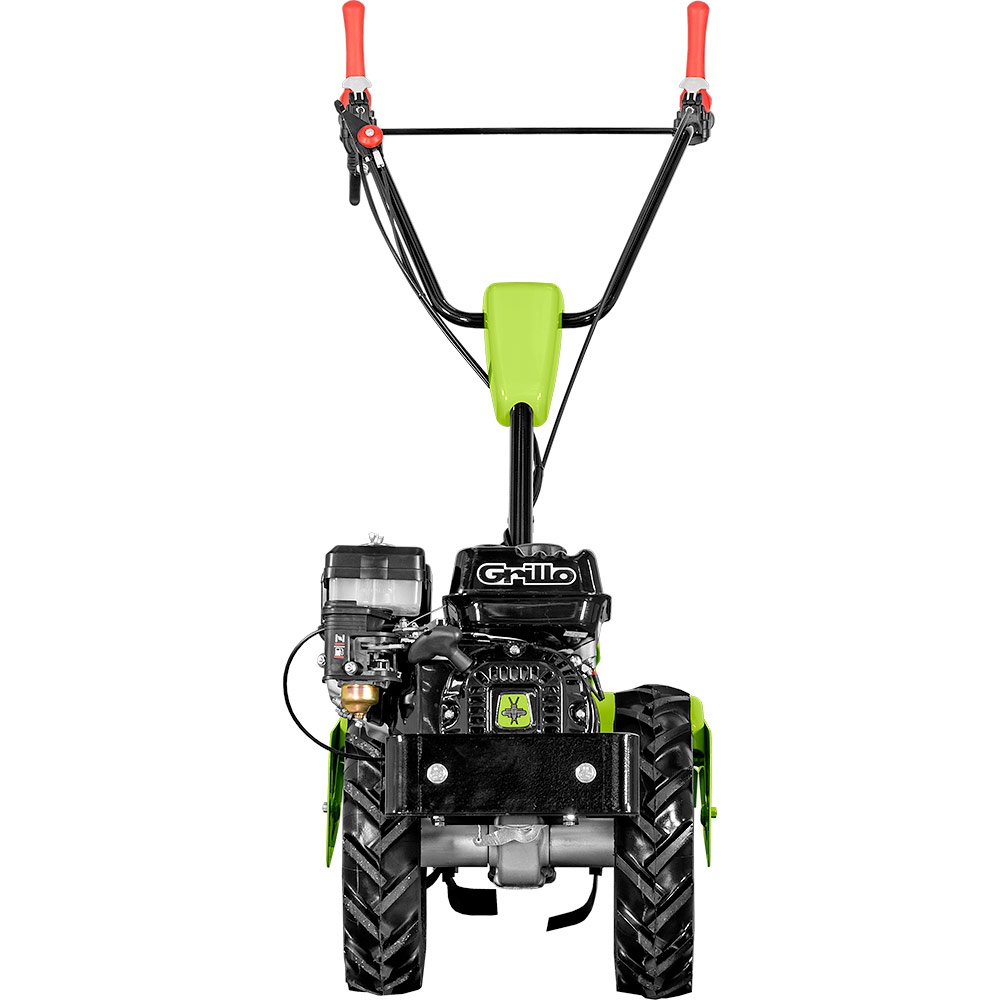

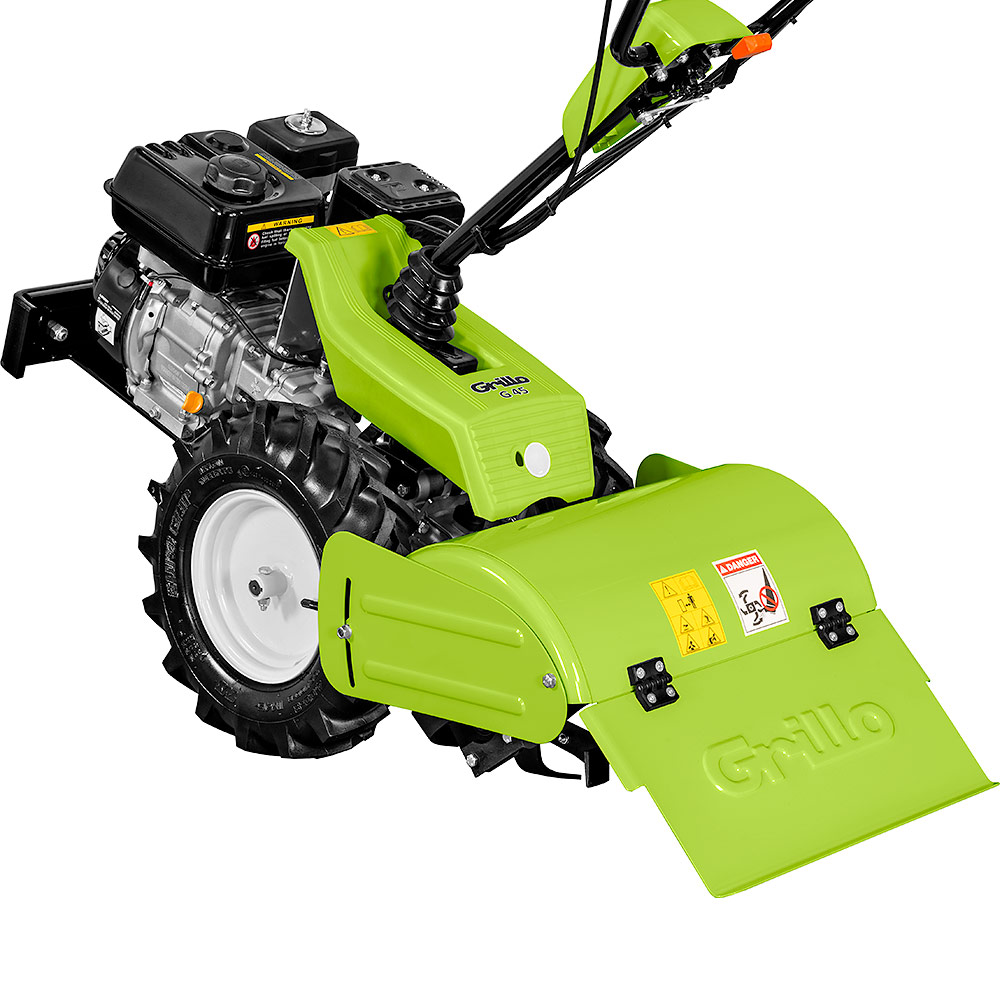

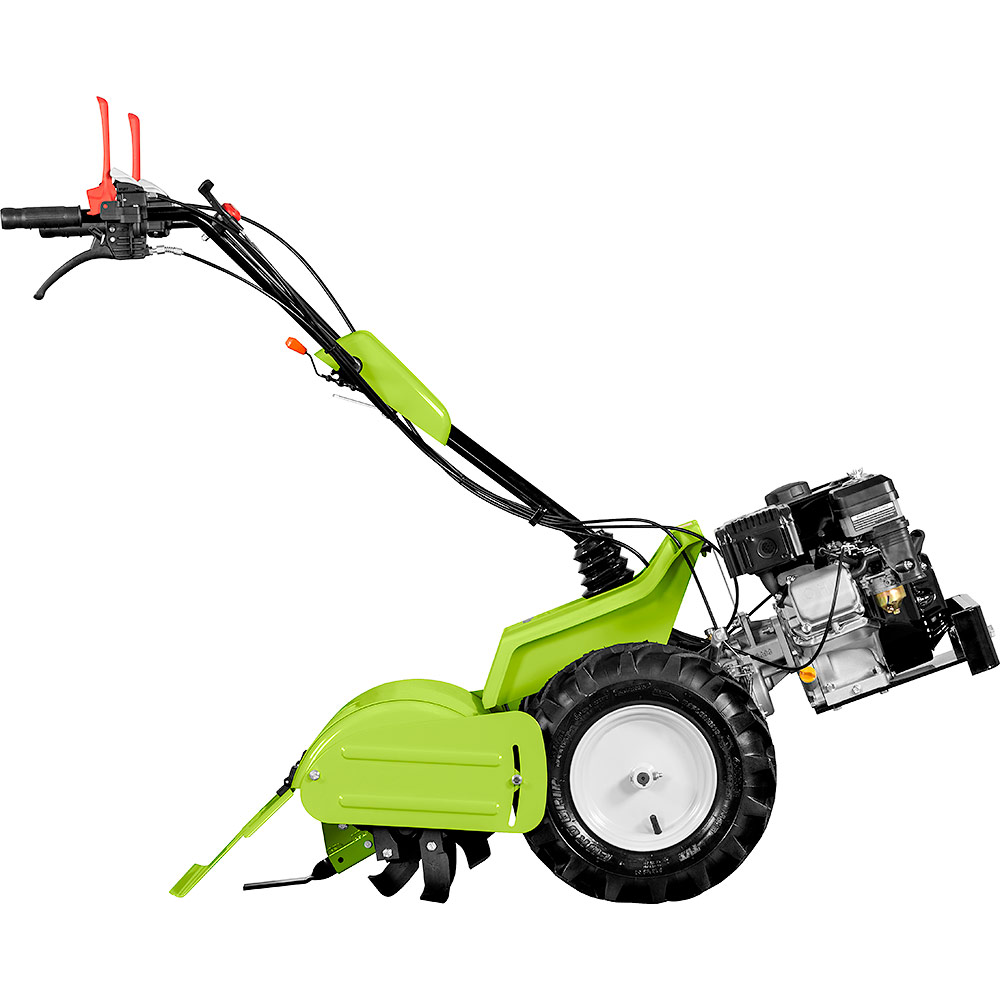

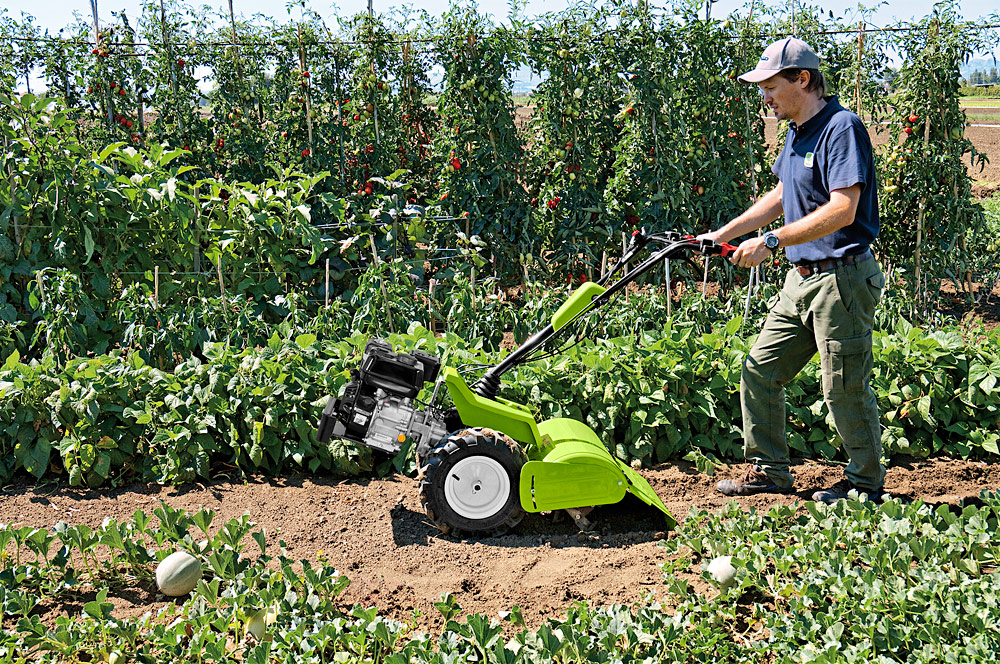

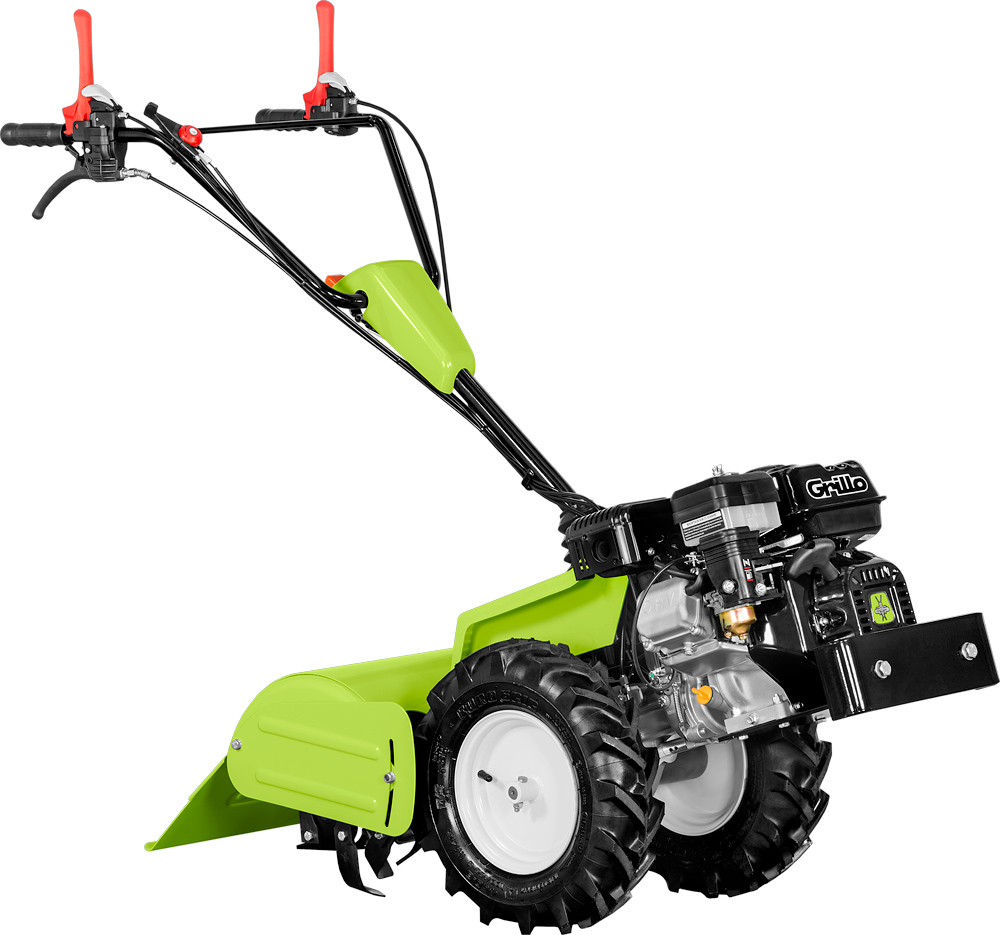

The Grillo G45 is a compact walking tractor, ideal for working in narrow spaces both in horticulture or gardens.
Perfectly balanced, it is fitted with a 2 speed- gearbox with gears in oil-bath and a forward and a reverse gear.
Due to the several devices, this walking tractor can be used by inexperienced people too.
The counter - rotating tines till even the hardest soil in spite of its reduced sizes and light weight.
The tines and wheels move in opposite direction allowing the walking tractor to perfectly adhere to the ground enabling the user to work with minimum effort. There is no need to push down hard on the handlebar, just allow the walking tractor to move forwards under its own power.
|
Engine |
Loncin G200FA Start recoil starter Supply fuel Displacement 196 cc, 1 Cylinder Power 5.5 HP (4.1 kW) Air cooled Oil bath air filter |
|
Fuel tank capacity | 3 L |
|
Transmission | with oil bath gears |
| Gearbox | 1 forward gear and 1 reverse gear | |
|

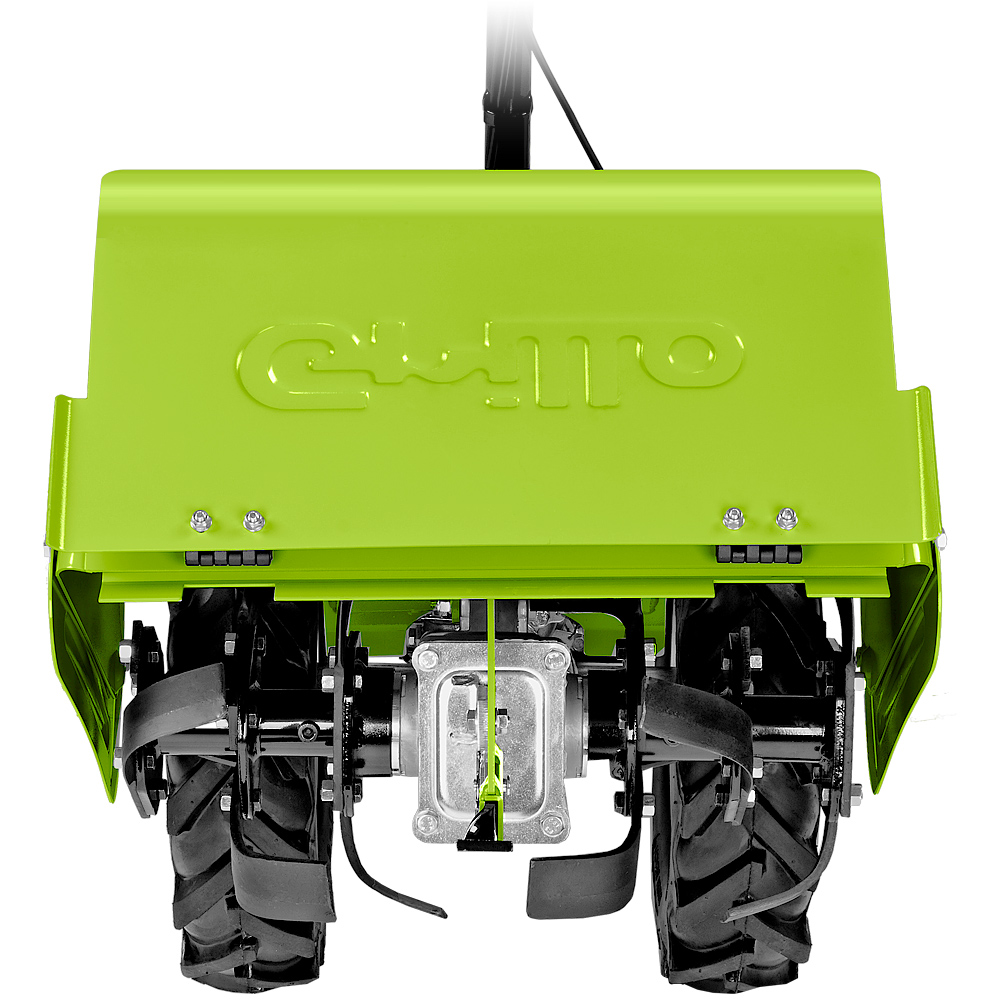

Standard rotary tiller | Tiller with contra-rotating tines and adjustable side board walls. Working width 50 cm |
| Hoes system diametre | 26 cm | |
| Working width | 50 cm | |
| Working depth | 13 cm | |
| P.T.O. | 644 rpm with anticlockwise rotation | |
|
Available tyres | 4.00-8 Tractor |
| Speed | With 4.00-8 wheels forward gear 1,6 km/h, reverse gear 2,5 km/h | |
| Handlebar | with height adjustment | |
| Safety devices | ACTIVE COUPLING AND AUTOMATIC DISENGAGEMENT OF THE TILLER IN REVERSE GEAR | |
|
External sizes of the wheels | 40cm with 4.00-8 tractor wheels |
|
Weight | 82 kg |

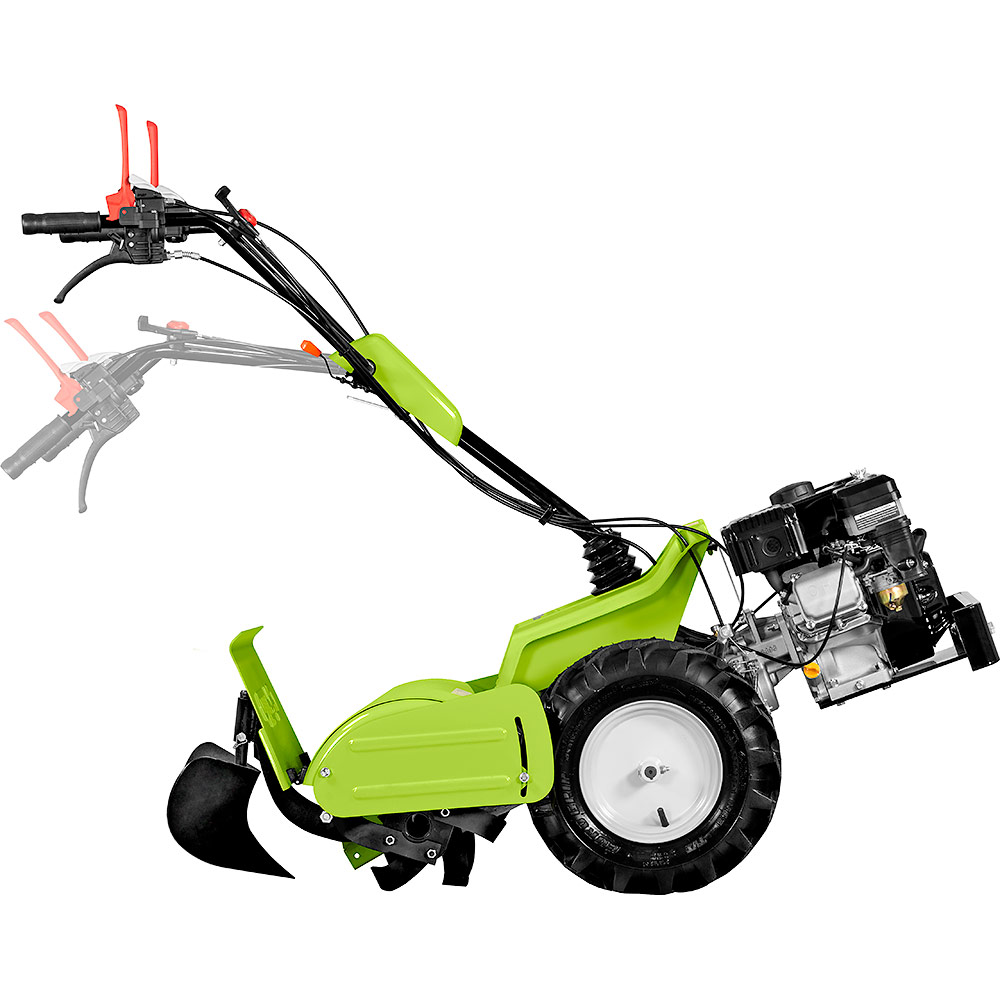

Furrower behind the rotary tiller (cod. 944622)
to be applied on G 45 - G 46 - G 52 - G 84 - G 85d - MAX1 - WR77 PRO - WR78 PRO
item no.: 940011
weight: 3 kg
