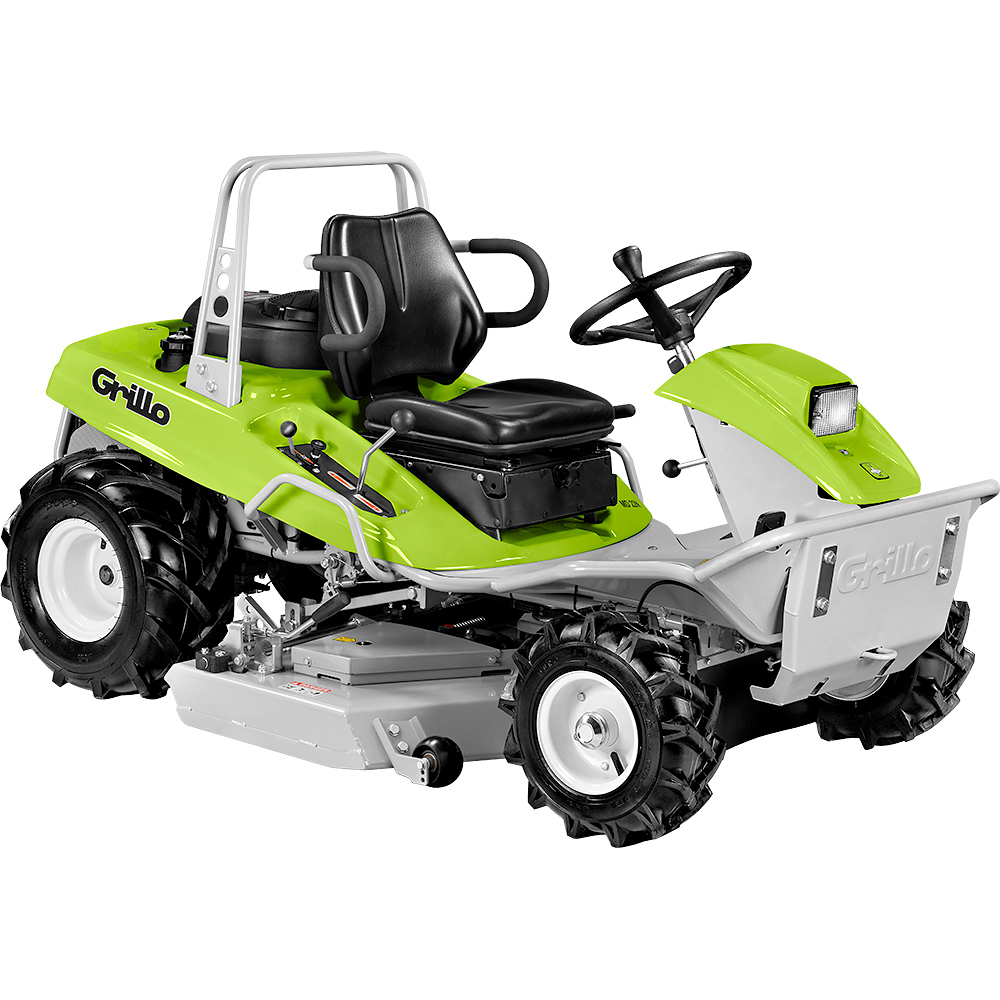

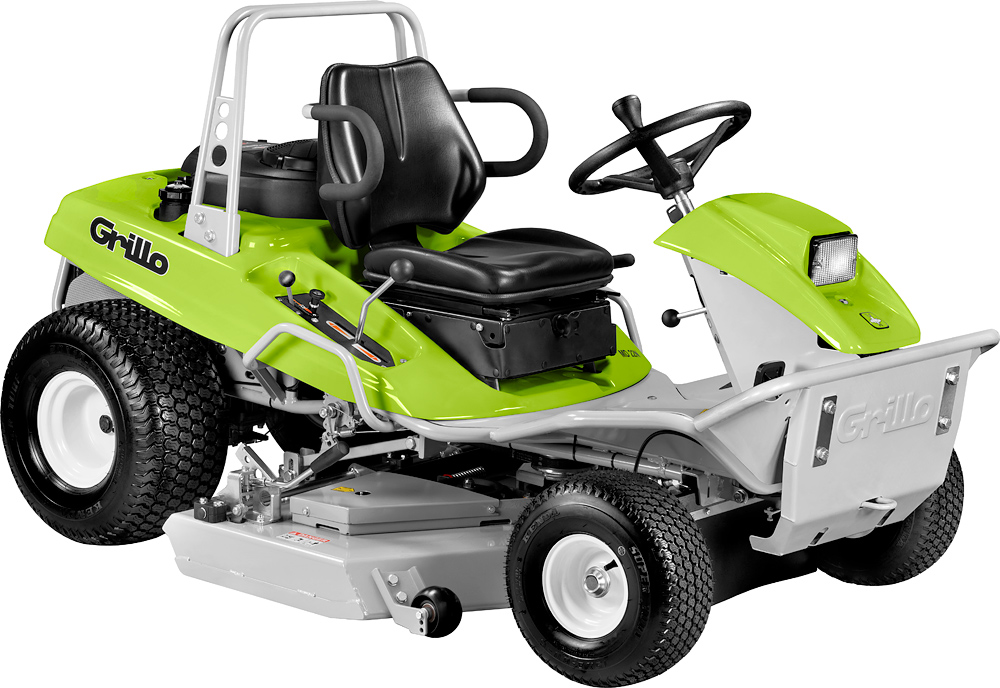

MD 22N

The MD 22N is a hydro-static mower that offers comfort and great cutting capacity.
The 110 cm central deck has a dual cutting function and is equipped with a 'Quick Shift' lever to switch from mulching to rear discharge directly from the driver's seat.
It is a mower designed for cutting on slopes, suitable for use in professional and private lawns where a perfect cut is required, such as on sports fields. Its low ground clearance makes it ideal for work under tree cover.
The MD 22N is equipped with the Briggs & Stratton Professional 7220 OHV 656 cc two-cylinder petrol engine that delivers 18 HP (22 HP gross power).

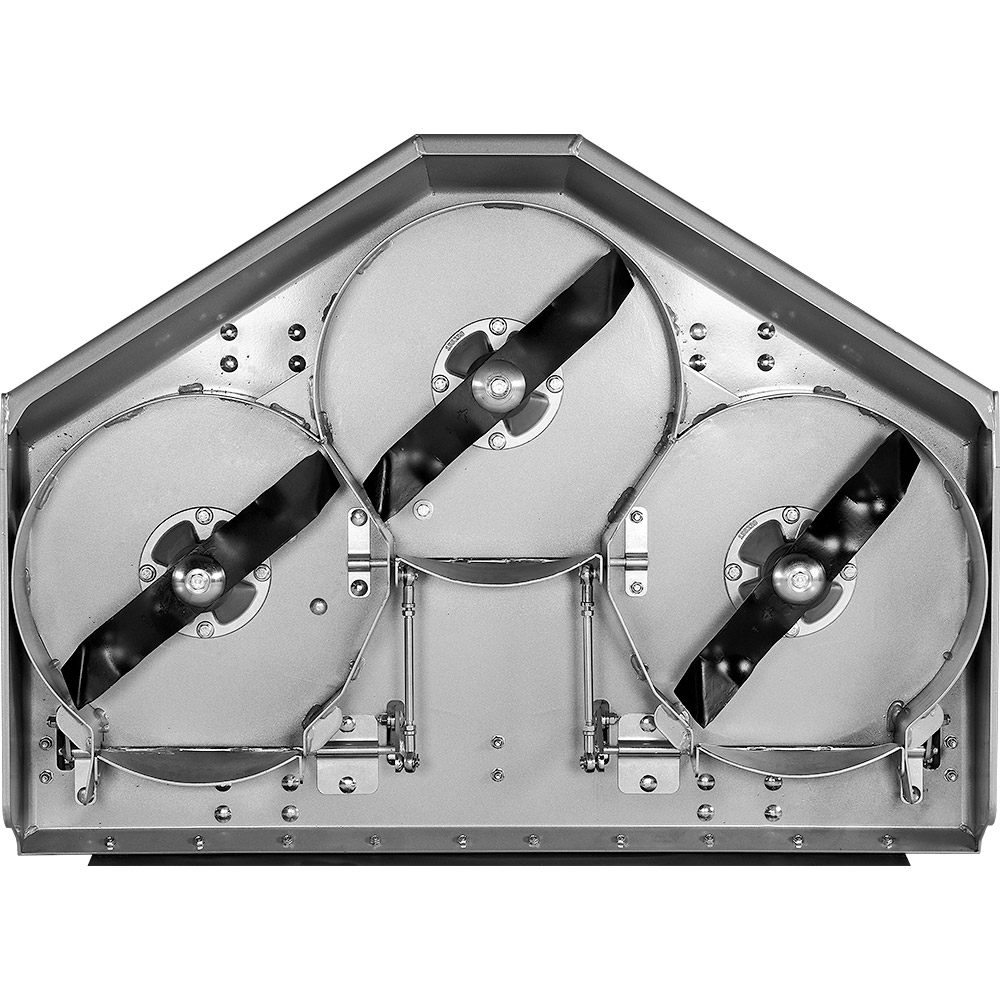

The cutting deck has 3 blades.

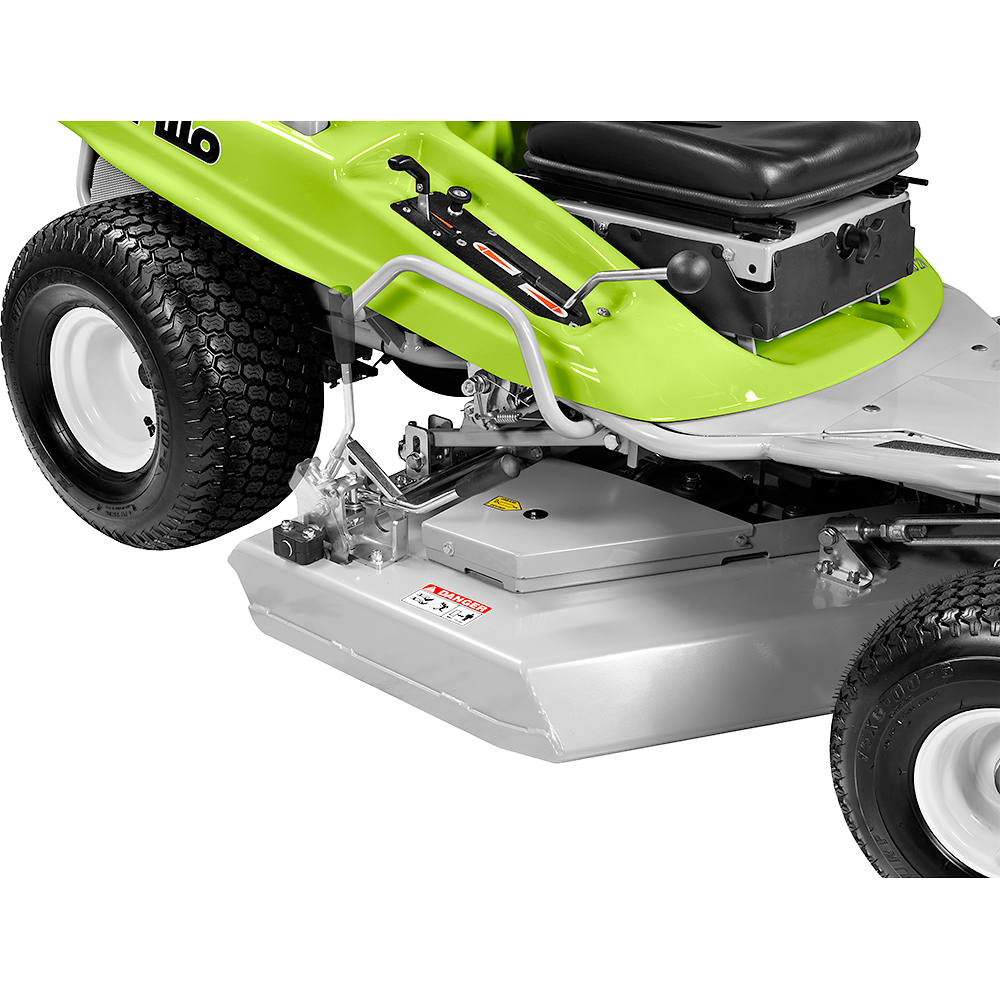

The cutting height ranges from 2.5 to 10 cm, the continuous adjustment ("infinite" positions) guarantees a quality cut, the lever control is assisted by a gas spring for maximum comfort.

The cutting apparatus is made entirely of steel and is not afraid of impact with stones. The large-diameter blade shafts and the cutting transmission guarantee reliability even in the toughest working conditions for many hours and in absolute safety.

The tension of the deck belt is self-adjusting. The entire unit is kept parallel to the ground at all times, improving cutting quality even after years of use!

The blades are engaged by means of an electric button located near the steering wheel that activates the PTO's electromagnetic clutch.

The 'Quick Shift' lever allows you to change cutting mode while comfortably seated in the driver's seat, even during cutting and without interrupting work. There is no need to change blades.

Rear discharge cutting is practical when grass is tall, suitable for those who do not mow regularly.

The Mulching cut, which is ideal for regular mowing, finely chops up the cuttings, thereby promoting the re-absorption of nutrients by the soil.
In addition, Mulching cutting can be performed after the first pass in rear discharge cutting for a better finish.

The transmission consists of a hydro-static axle equipped with a fan to cool the oil, an essential feature to increase the efficiency of the transmission by reducing its operating temperature. The speed is infinitely variable from 0 to 10.5 km/h and allows the precise choice of forward speed.

The tilting front axle keeps the four wheels attached to the ground even in very uneven conditions.

The differential lock is standard, is controlled by a foot pedal and is indispensable in low grip conditions on slopes or if the ground is extremely uneven and the machine remains on three wheels.

The inside turning radius is only 48 cm.

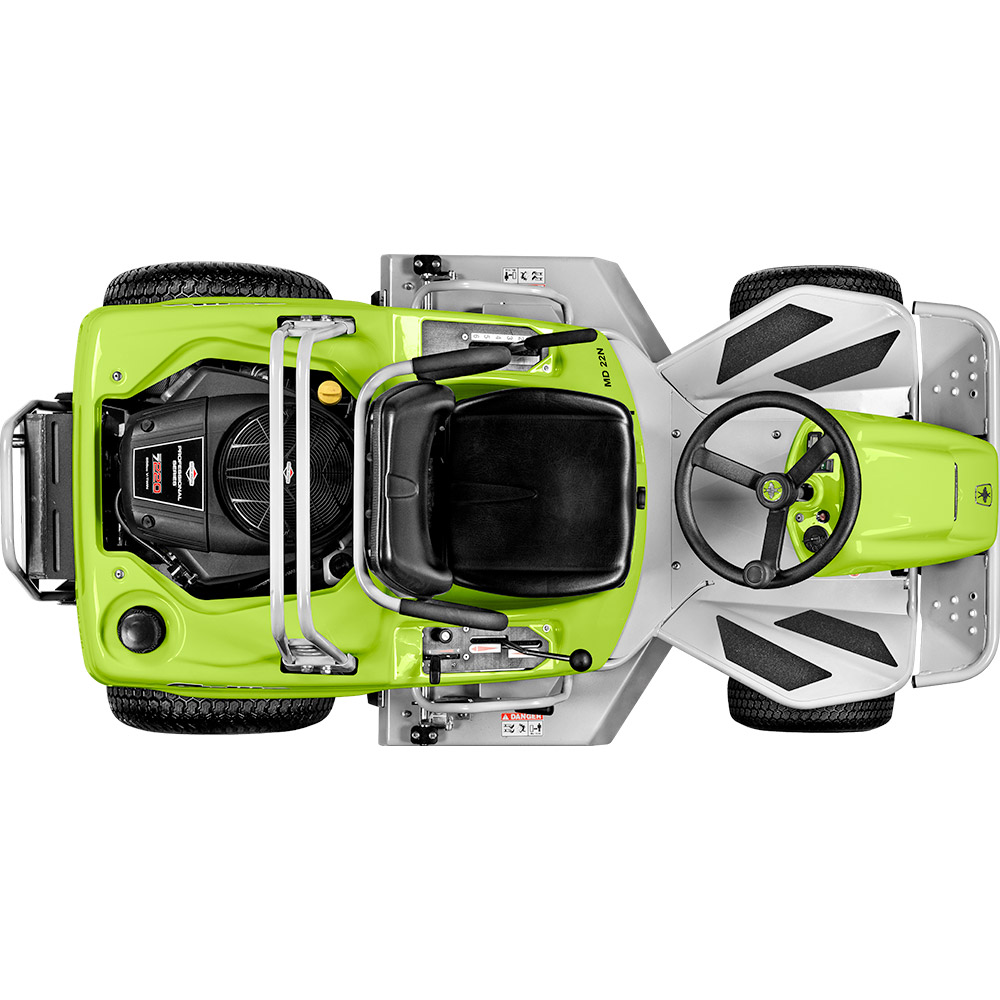

The MD 22N is compact, equipped with a roll bar, a low center of gravity, an optimal weight distribution, and is built for maximum stability and operator safety.
The seat placed close to the ground, the vertical-axis endothermic engine positioned very low, the ventral plate placed exactly between the 4 wheels and the battery placed on the front axle, make the machine exceptionally stable.

The MD 22N is fitted with a mechanically suspended seat as standard, and the suspension can be adjusted to suit the operator's weight: driving is comfortable even after many hours of work!

The feet rest on the foot board at the best angle, giving the operator maximum comfort and safety.

The driving controls are ergonomic, the drive lever allows the operator to select the speed precisely. With the help of the brake pedal, the advance lever automatically returns to zero and the 4 wheels are braked.
The parking brake acts on the rear wheels.
