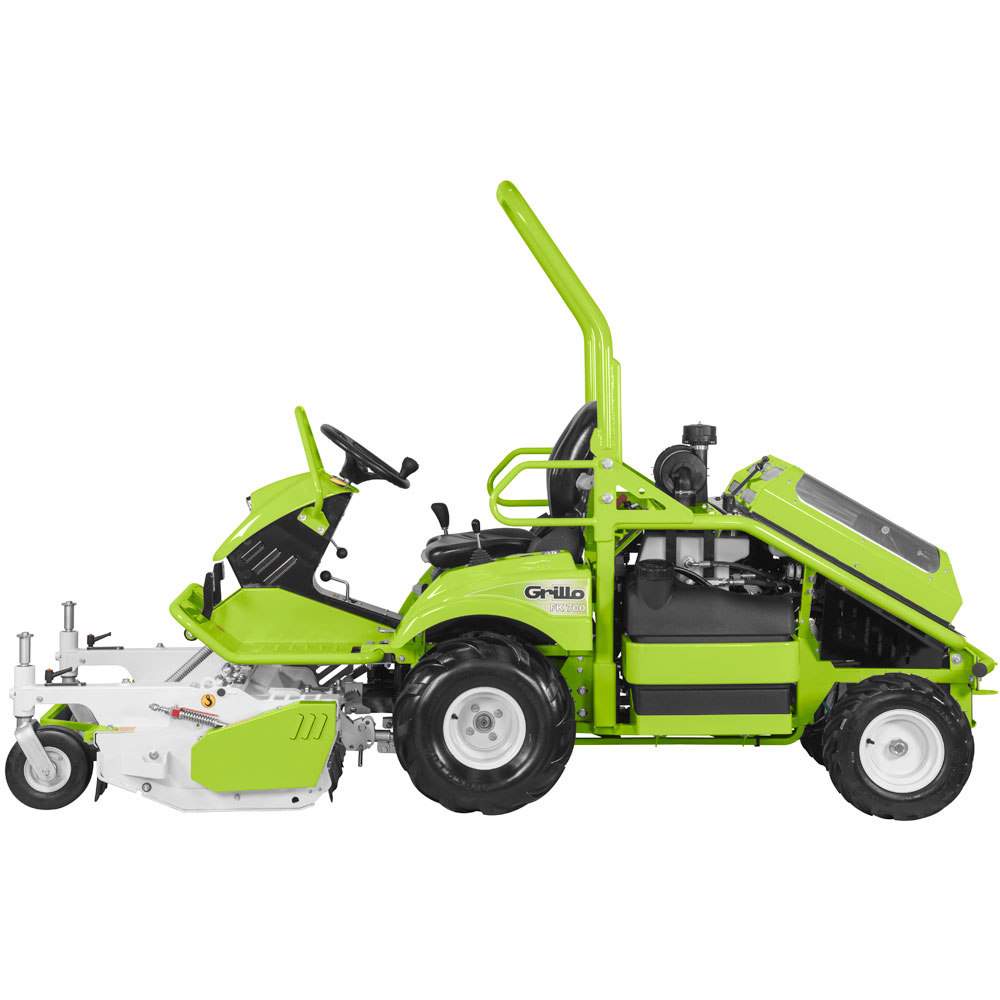

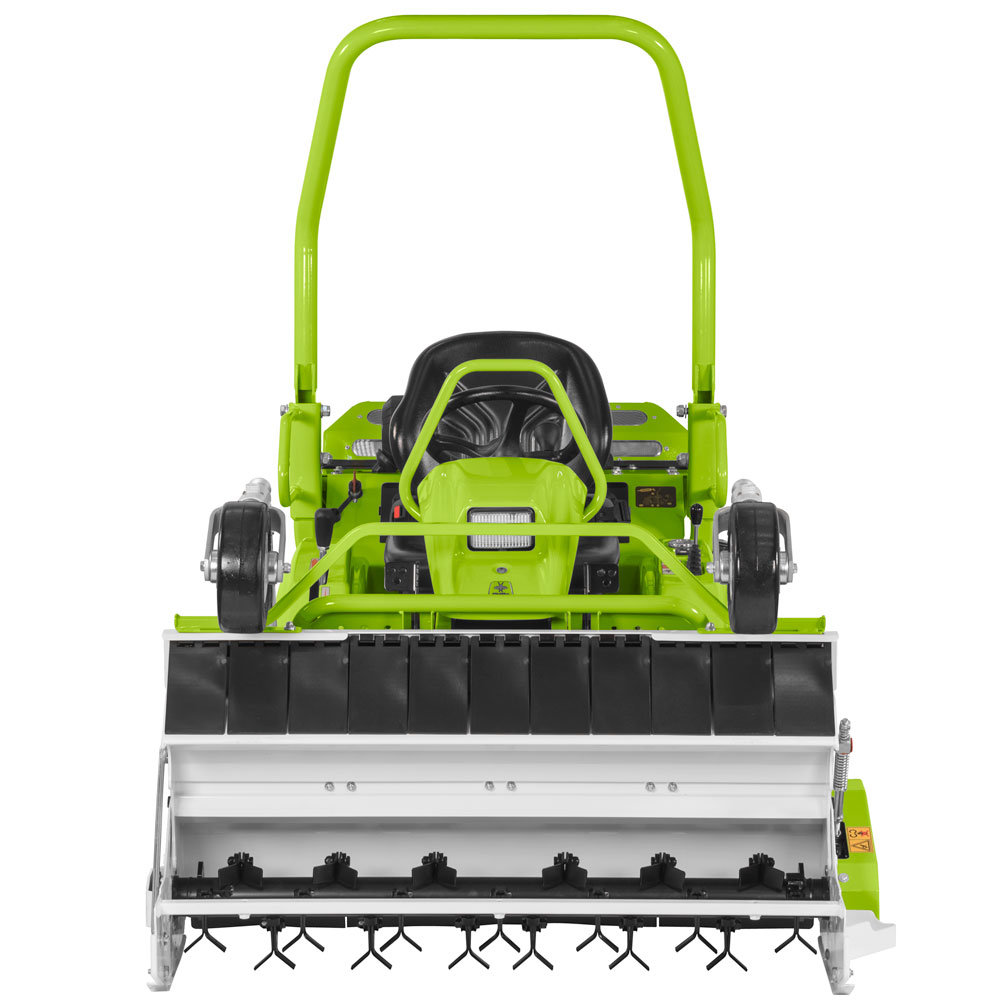

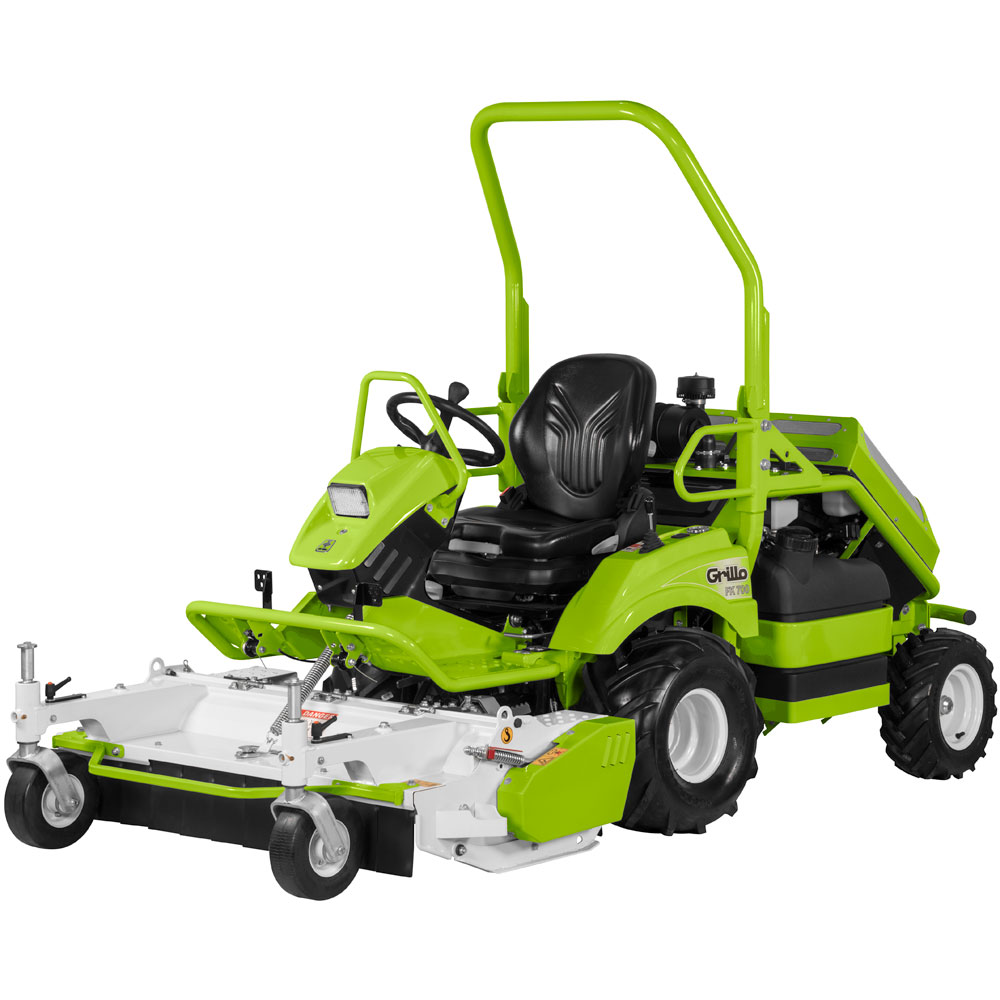

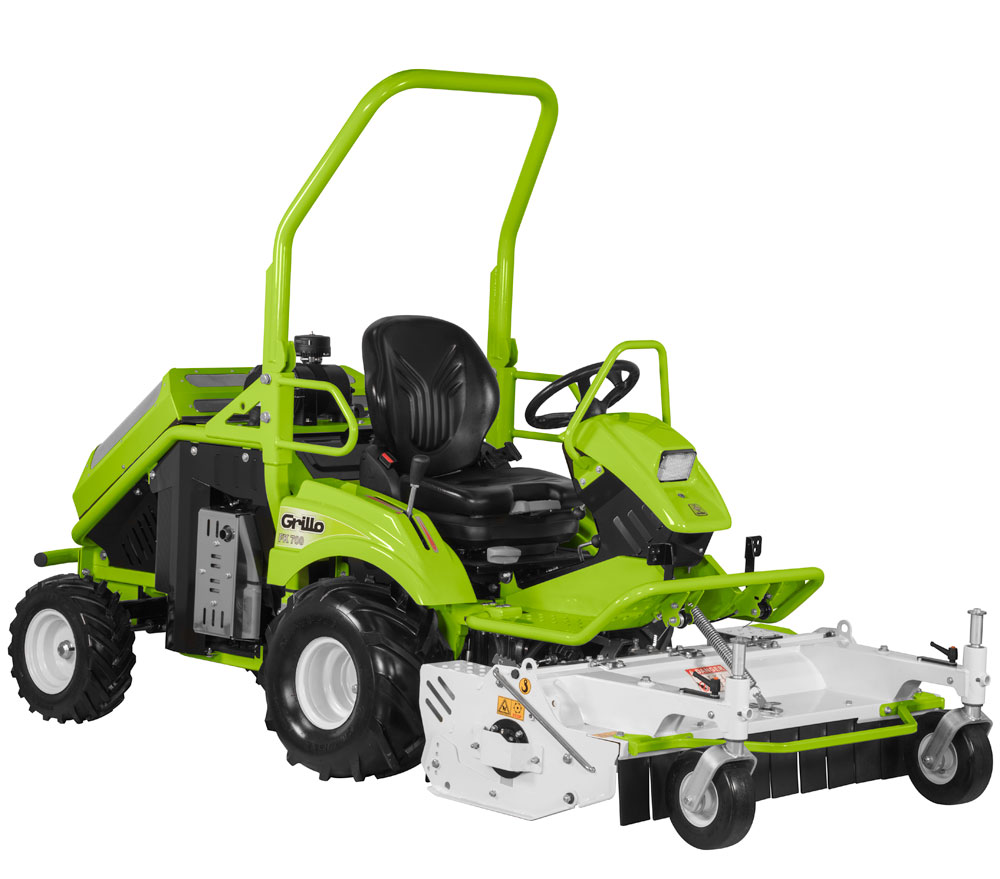

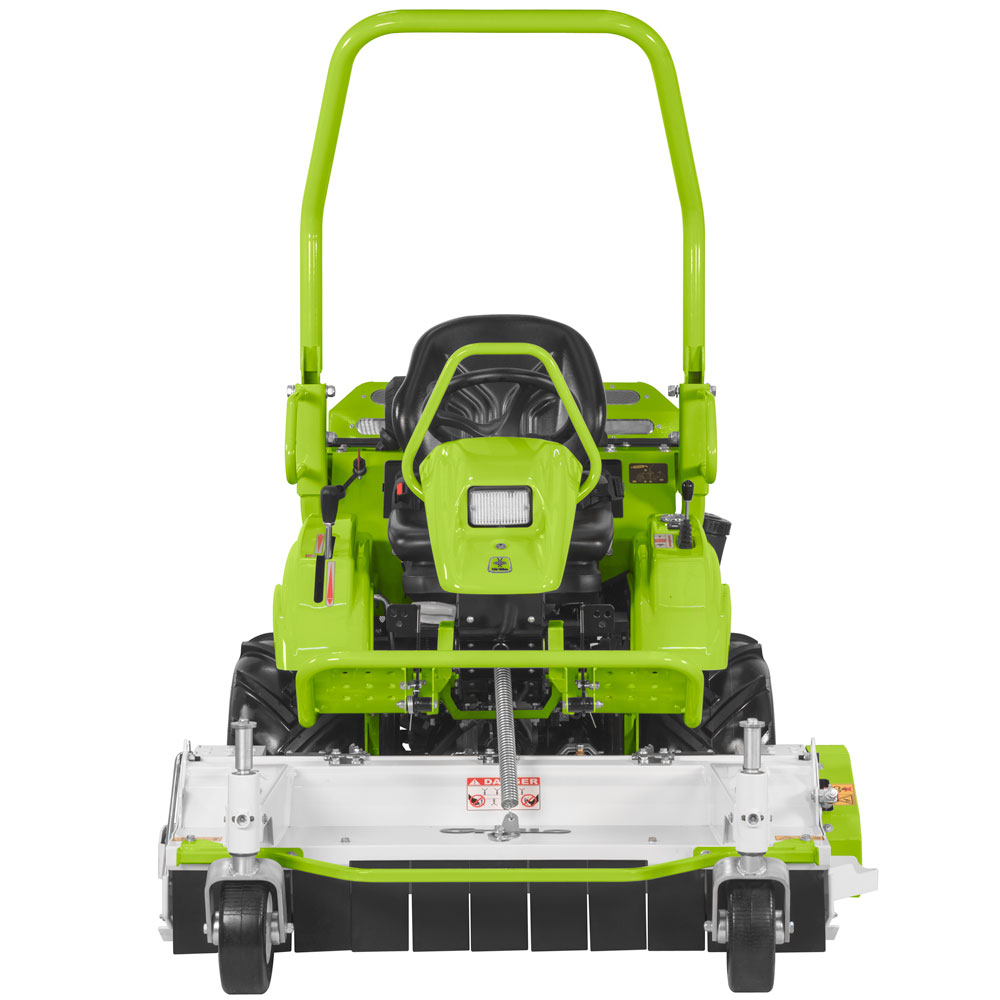

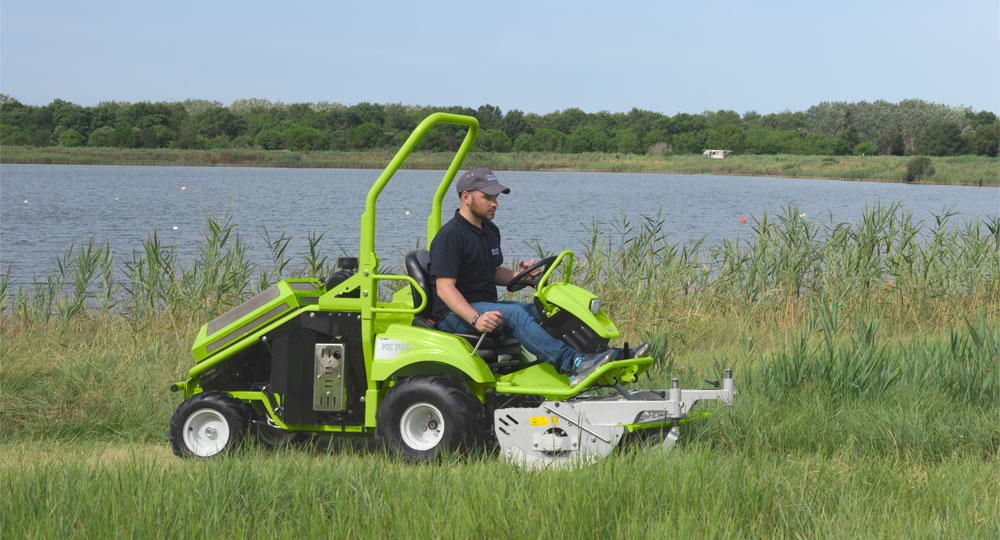

FK 700
Professional front brush cutter.

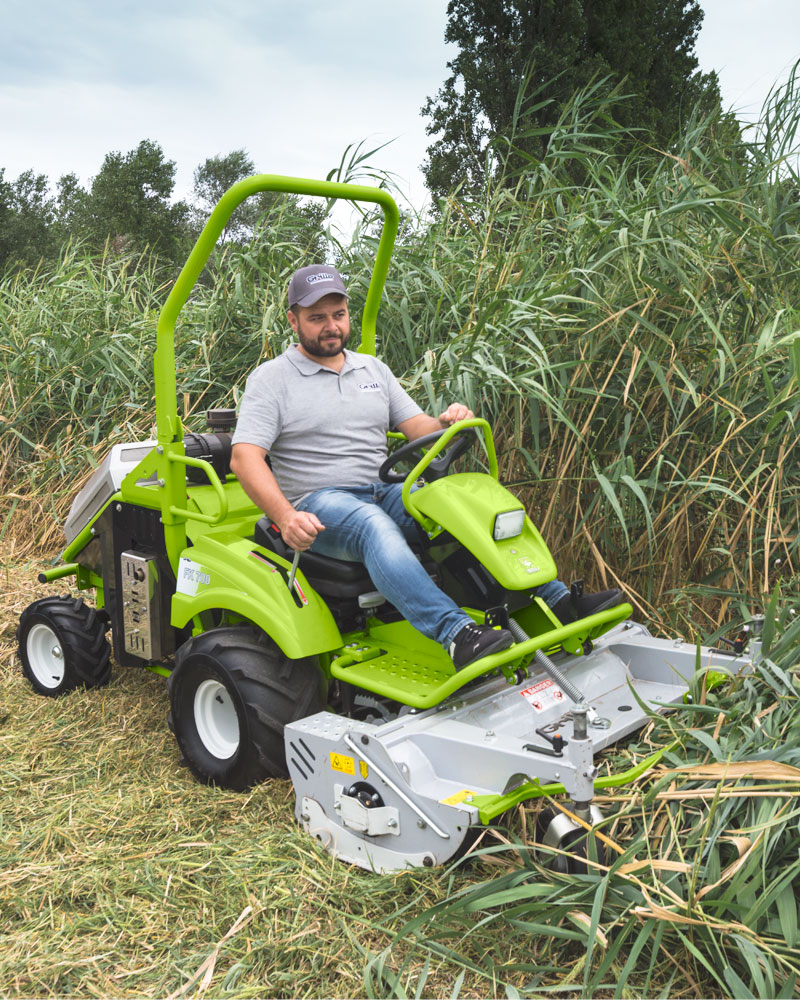

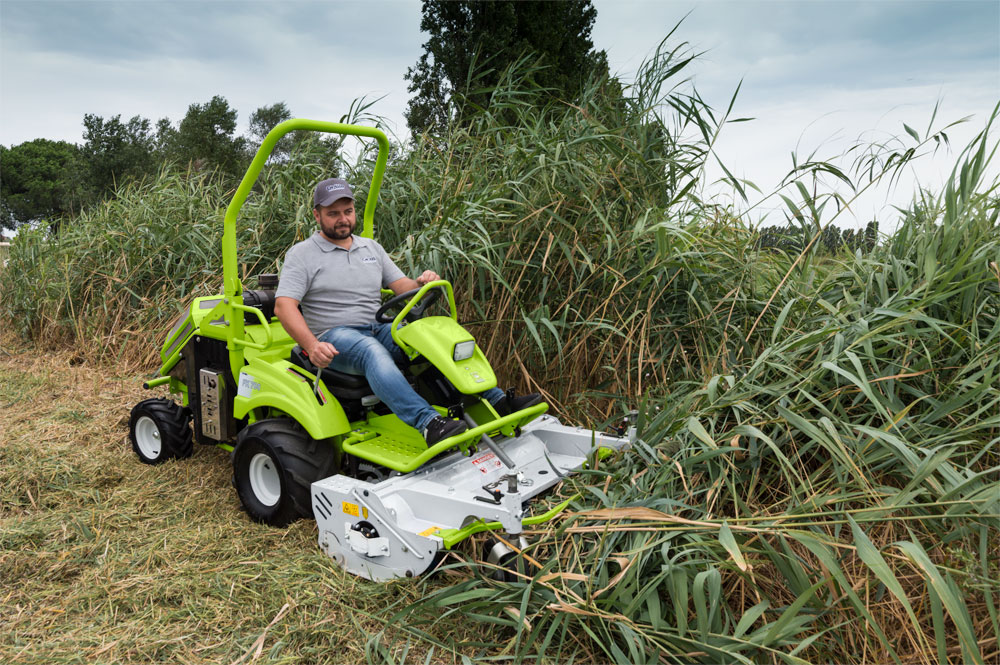

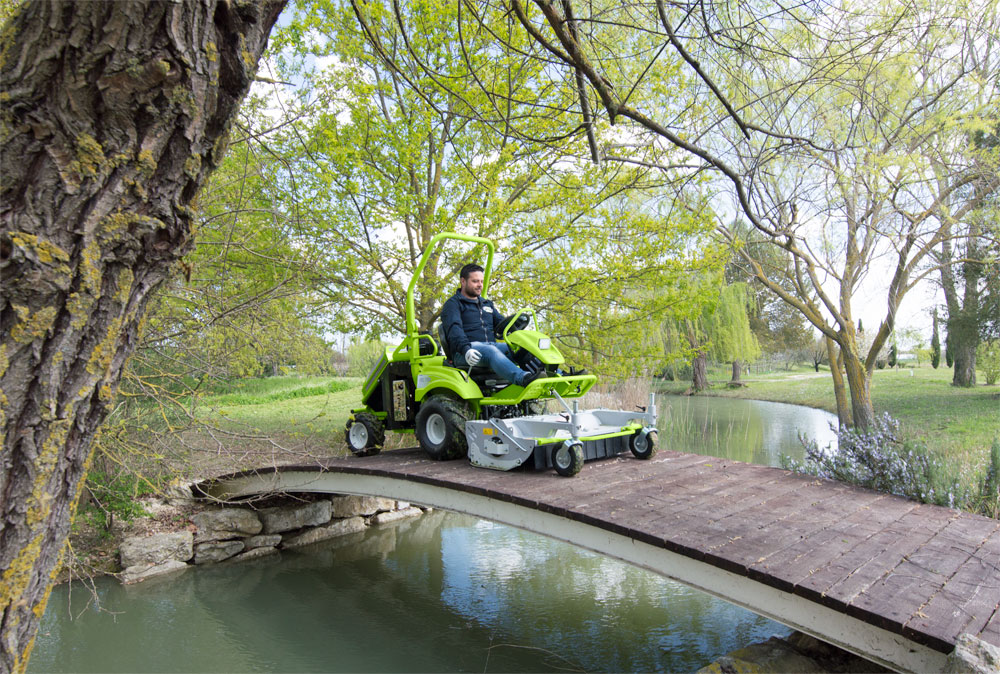

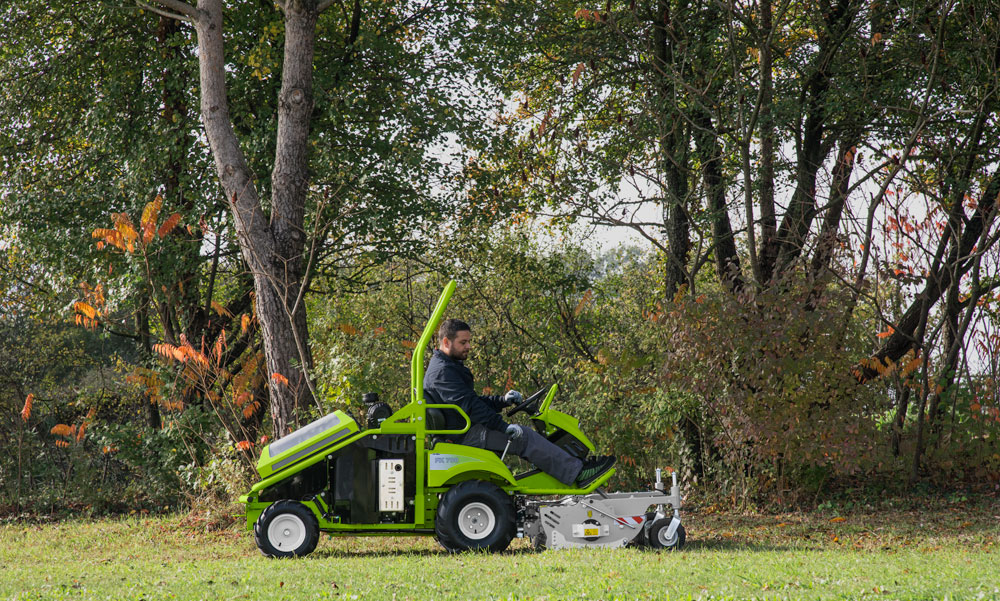

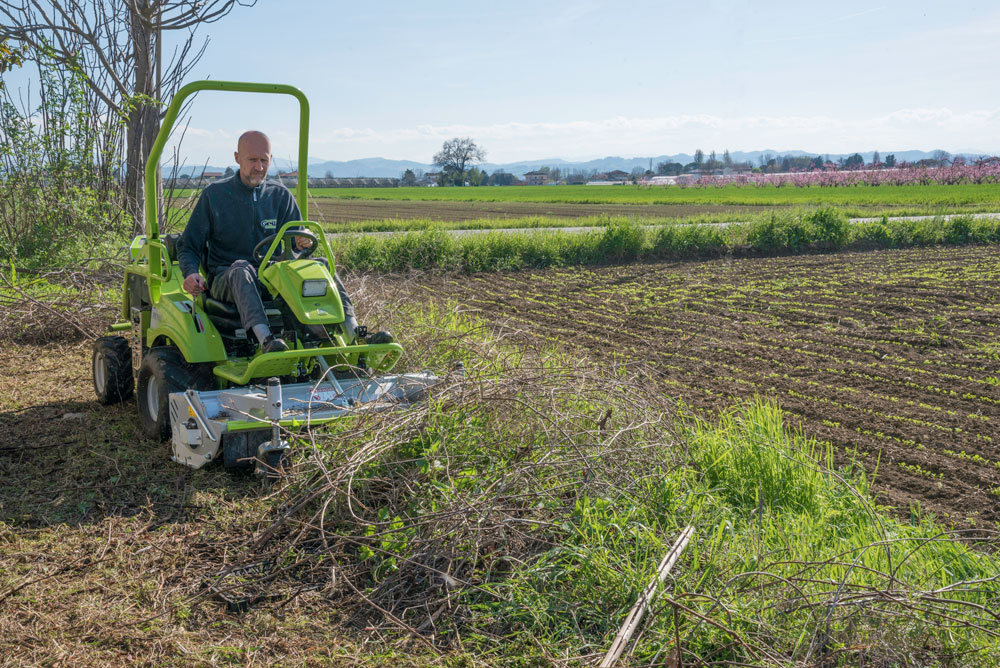

The FK 700 is a professional front brush cutter, designed for high performance, maximum comfort, great cutting efficiency, and low fuel consumption.

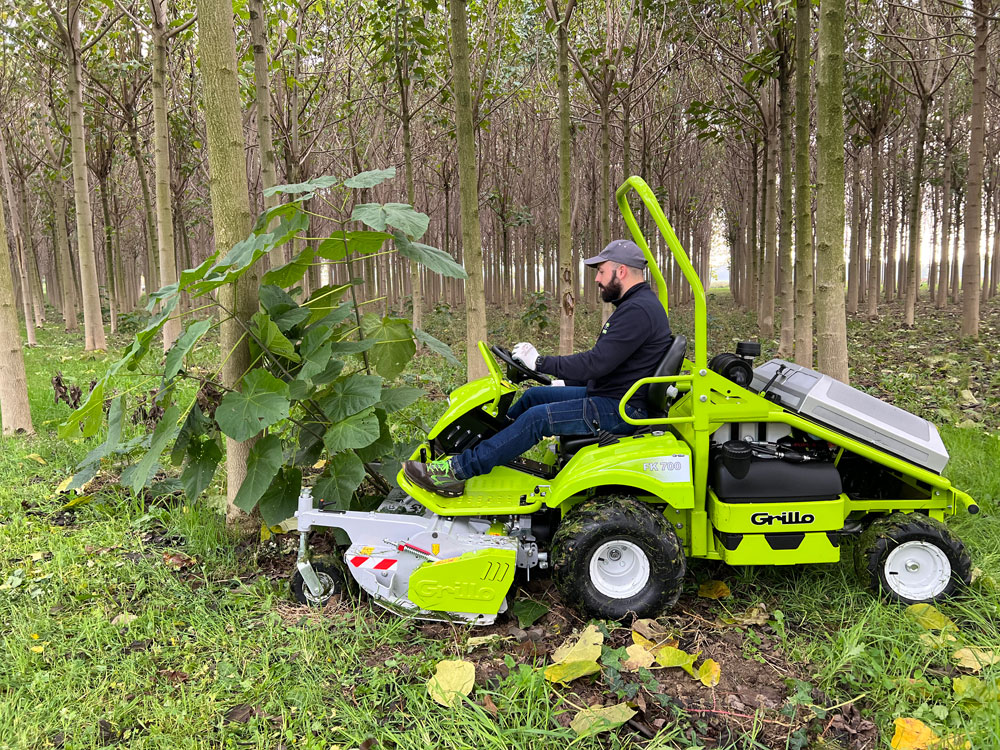

The front flail mower allows full visibility of the working area, prevents the cutting area from being pressed and facilitates cutting under low branches and bushes!
The floating cutting attachment ensures a perfect result even on undulating terrain. The pivoting rear axle and tractor-profiled front wheels provide a precise finish over bumps and hollows.
The cutting height is mechanically adjustable from a minimum of 0 cm to a maximum of 10 cm. Adjustment is quick and easy without using spacers.
A smooth and progressive single lever controls forward and reverse speed from 0 to 15 km/h in fast gear and from 0 to 8 km/h in slow gear. The lever offers maximum control and ease of use when driving while cutting as well as during transfers.
The disc parking brake is conveniently activated with a hand lever from the driver’s seat.

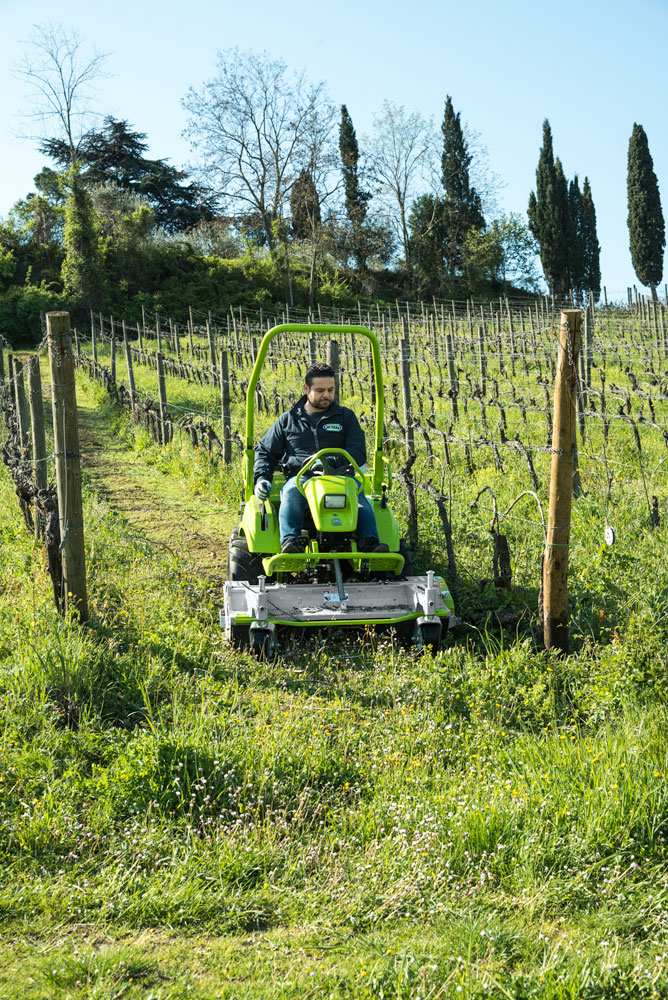

The compact dimensions, 37 cm turning radius and front cutting attachment make the FK 700 ideal for areas with obstacles or narrow spaces.
|
Engine |
Kubota D722 Start electric, with 12 V battery Supply diesel Displacement 722 cc, 3 Cylinders Power 18 HP (13.2 kW) Liquid cooled with electric impeller and equipped with automatic radiator cleaning device Cyclonic integrated air filter |
|
Fuel tank capacity | 31 L. |
| Hydraulic oil tank | 6,7 L. | |
|
Traction | hydraulic motor + 2 speeds mechanical gearbox slow and fast |
| Clutch | electromagnetic with blade brake. | |
|
Cutter deck | front-mounted flail mower with 3-row knife rolle and front opening |
| Cutting width | 115 cm | |
| Cutting height | from 0 to 10 cm, quick mechanical adjustment | |
|
Differential locking | mechanical, pedal-operated |
|

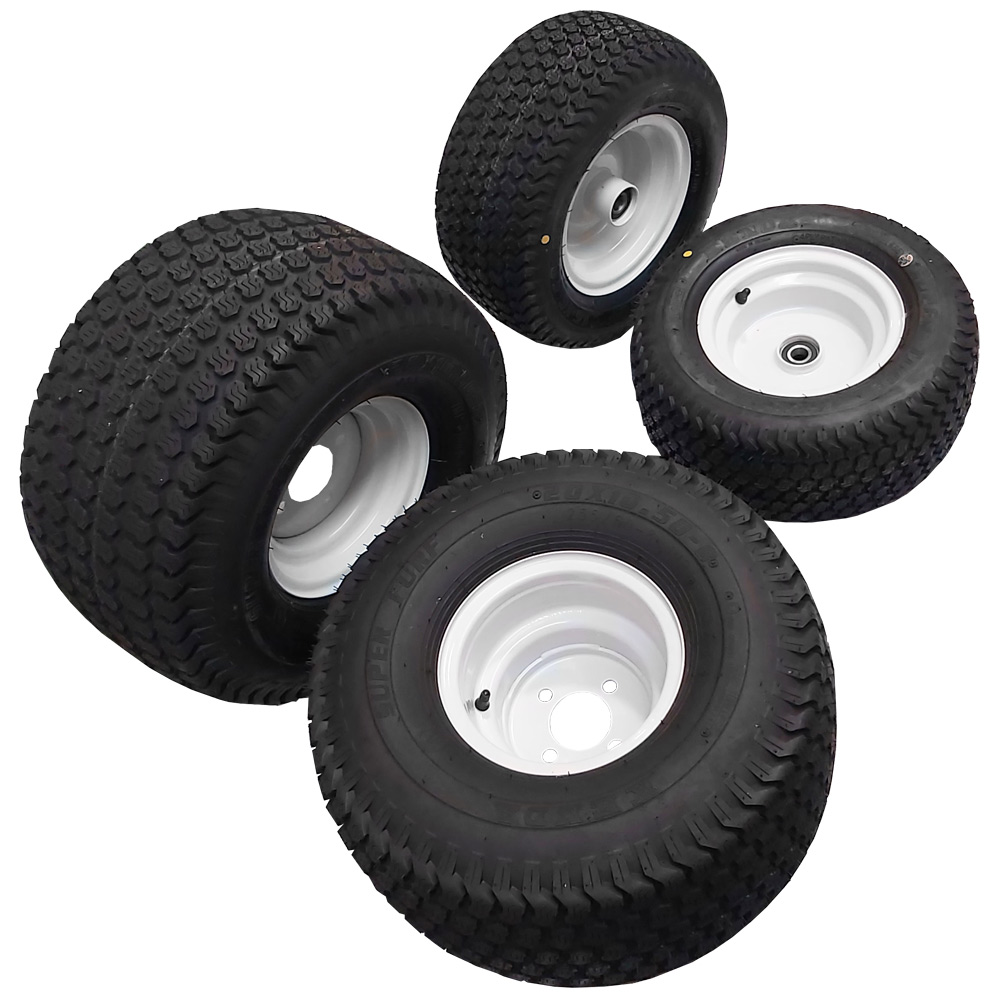

Front tyres | 20x10.00-8 Tractor |
| Rear tyres | 16x6.50-8 Tractor | |
| Steering system | steering wheel; forward/reverse lever and service brake | |
| Speed | 0 - 15 km/h fast; 0 - 8 km/h slow | |
| Inner turning radius | 37 cm | |
| Seat | Grammer, cushioned, adjustable with safety belts | |
| Brakes | lever-operated with disc brake | |
|
Mowing capacity per hour (indicative) | 10000 m2/h |
|
Length | 283 cm |
| Width | 131 cm | |
| Height | 139 cm ; 182 cm (with roll bar) | |
| Clear span from the ground | 15 cm | |
|
Weight | 615 kg |

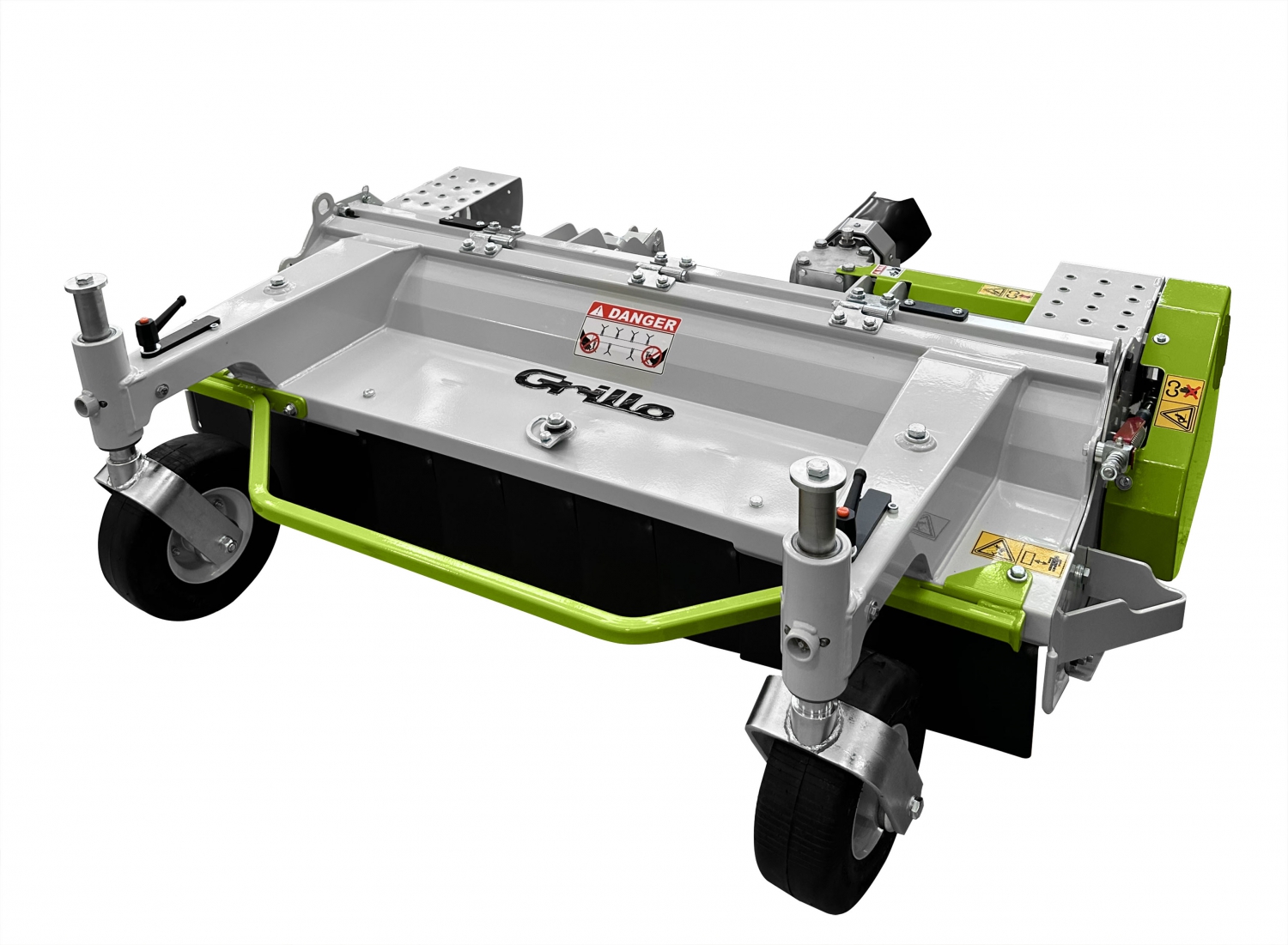

All purpose flail 118 cm
to be applied on FK 700
item no.: 9G8411
weight: 120 kg
With 3 rows of knives, openable at the front.

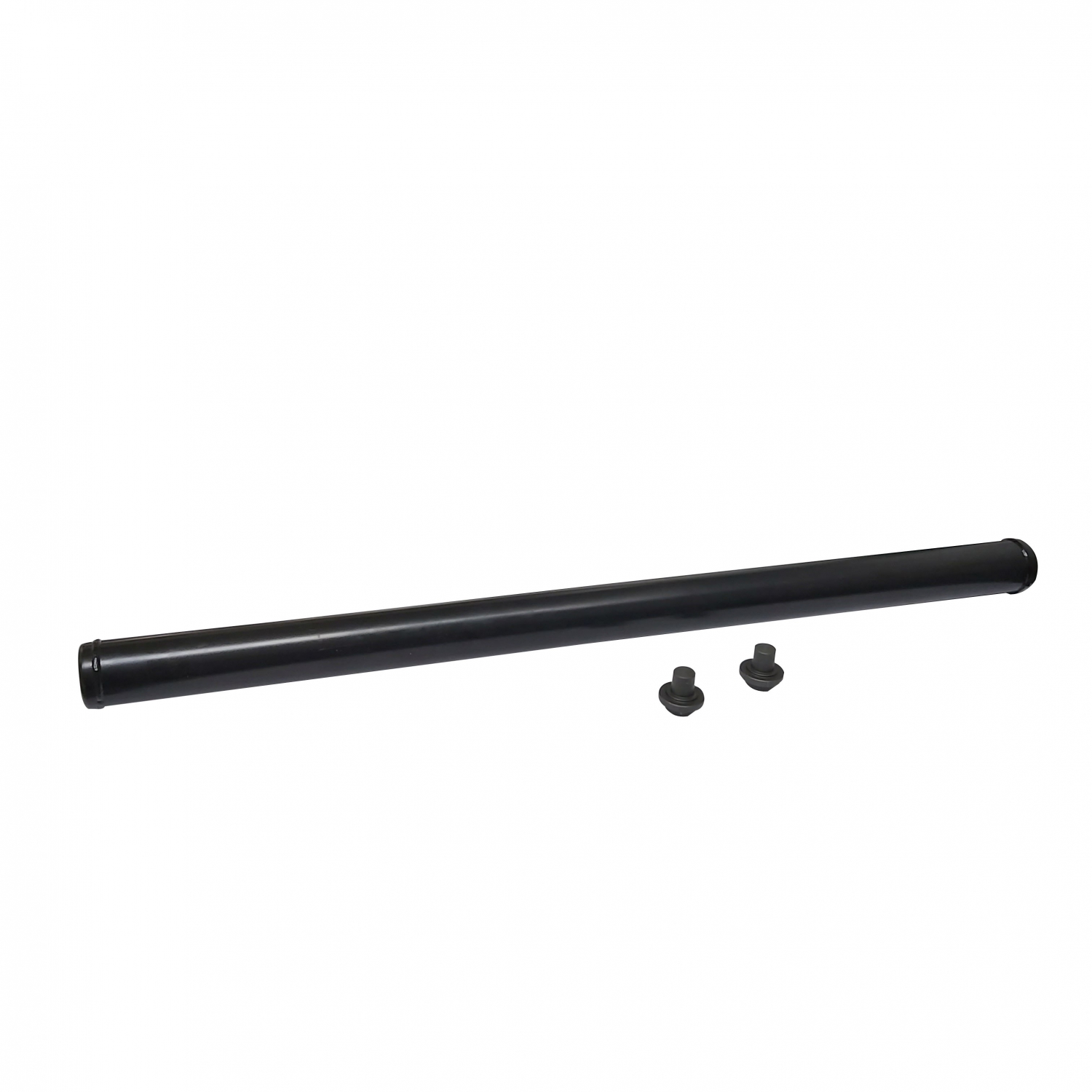

Adjustable rear roller for 118 cm all purpose flail
to be applied on FK 700
item no.: 9G8511
weight: 9 kg
to be applied on FK 700
item no.: 9G8611
weight: 3,8 kg

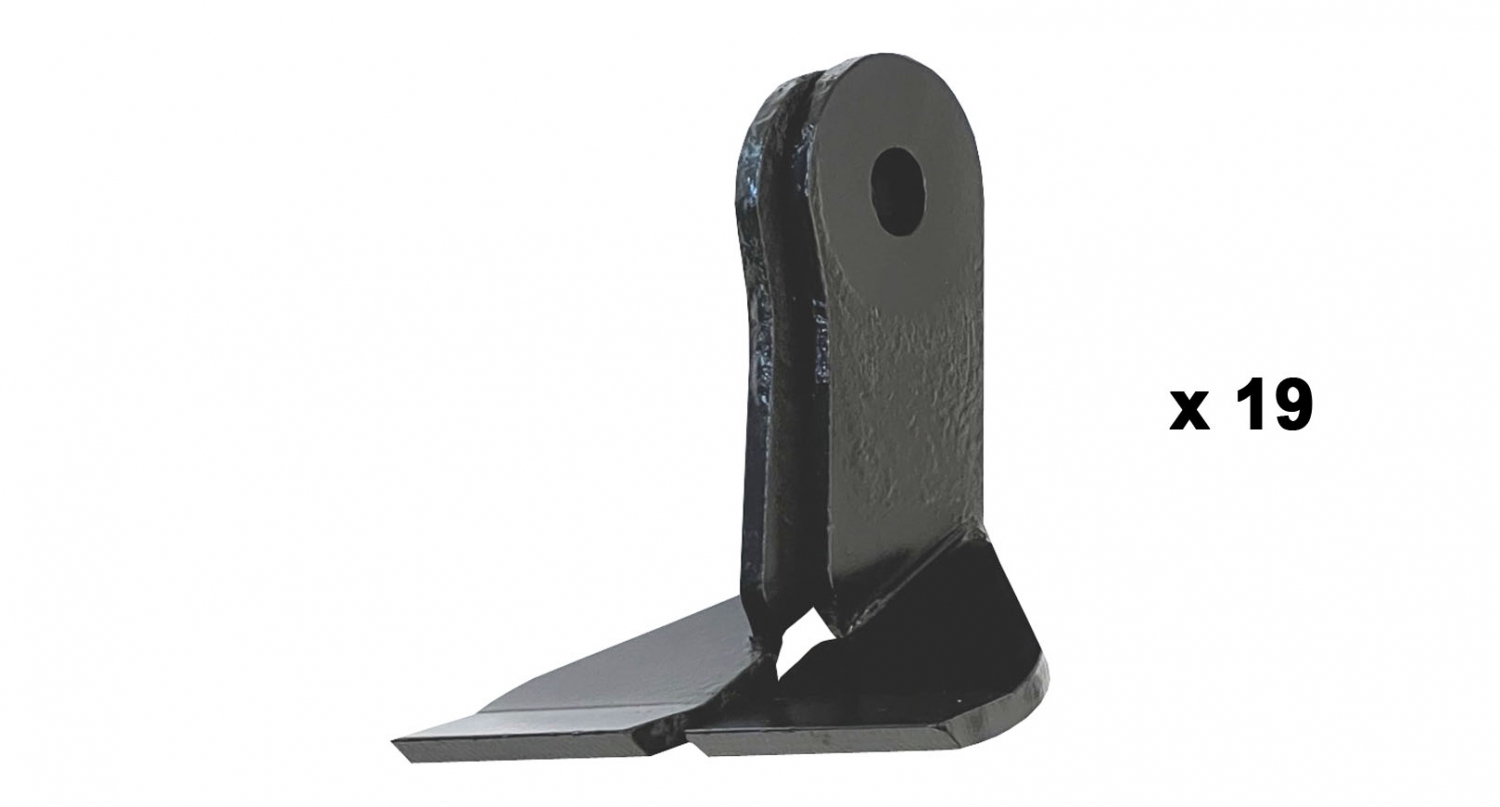

Blades scarifier kit for all purpose flail 118 cm
to be applied on FK 700
item no.: 9G8711
weight: 2,8 kg
It needs adjustable roller p/n 9G8511, can be installed along with kit 9G8611, can't be installed with standard "Y" knives.
