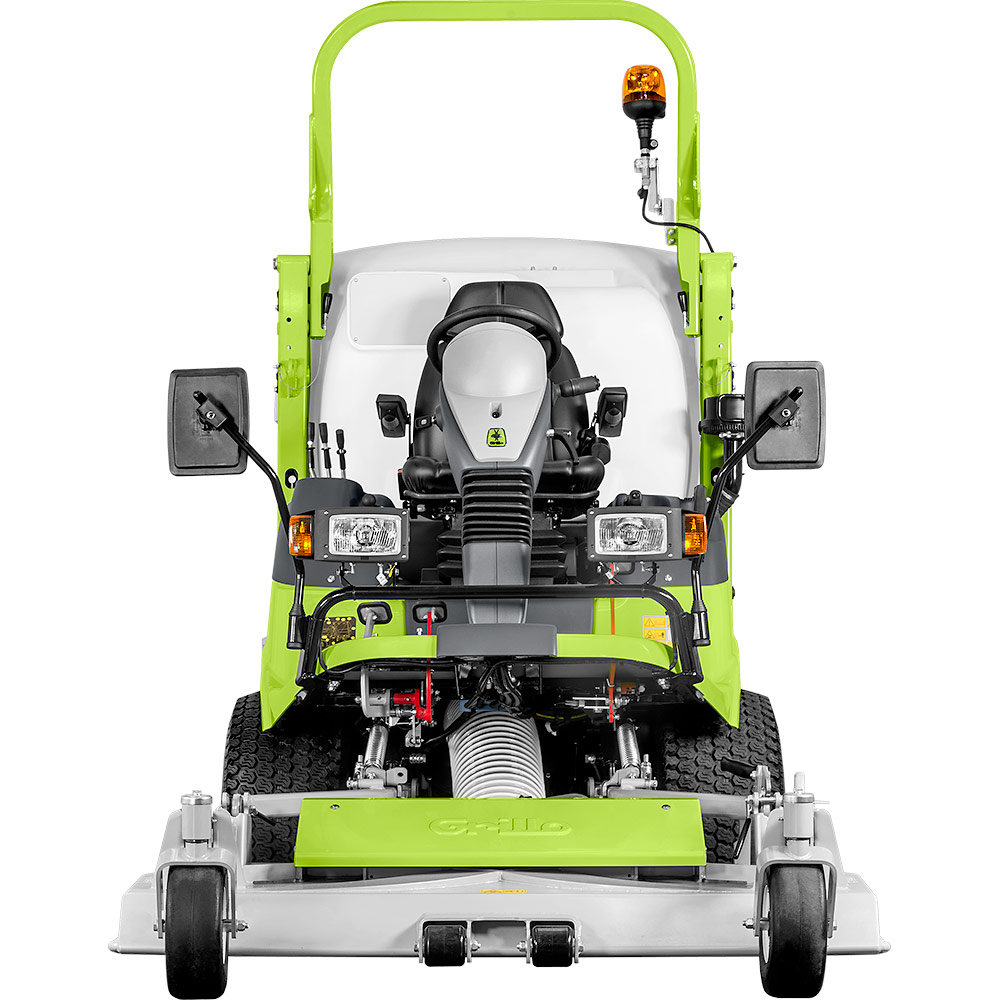

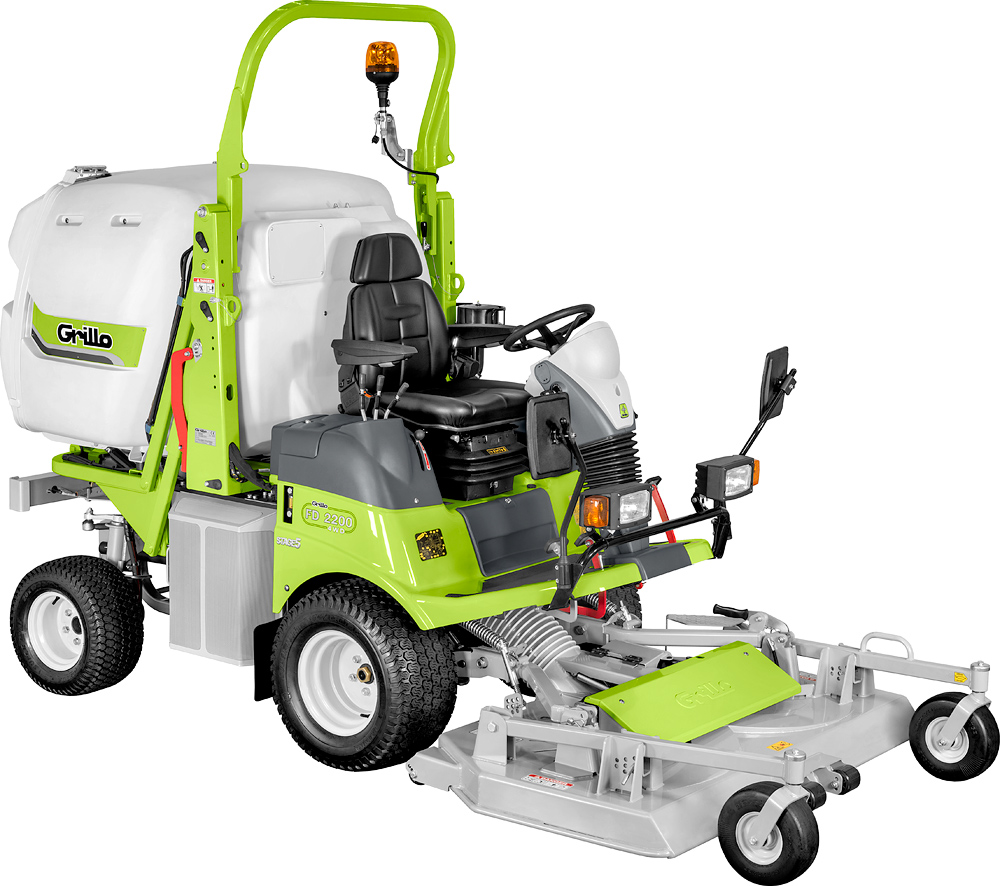

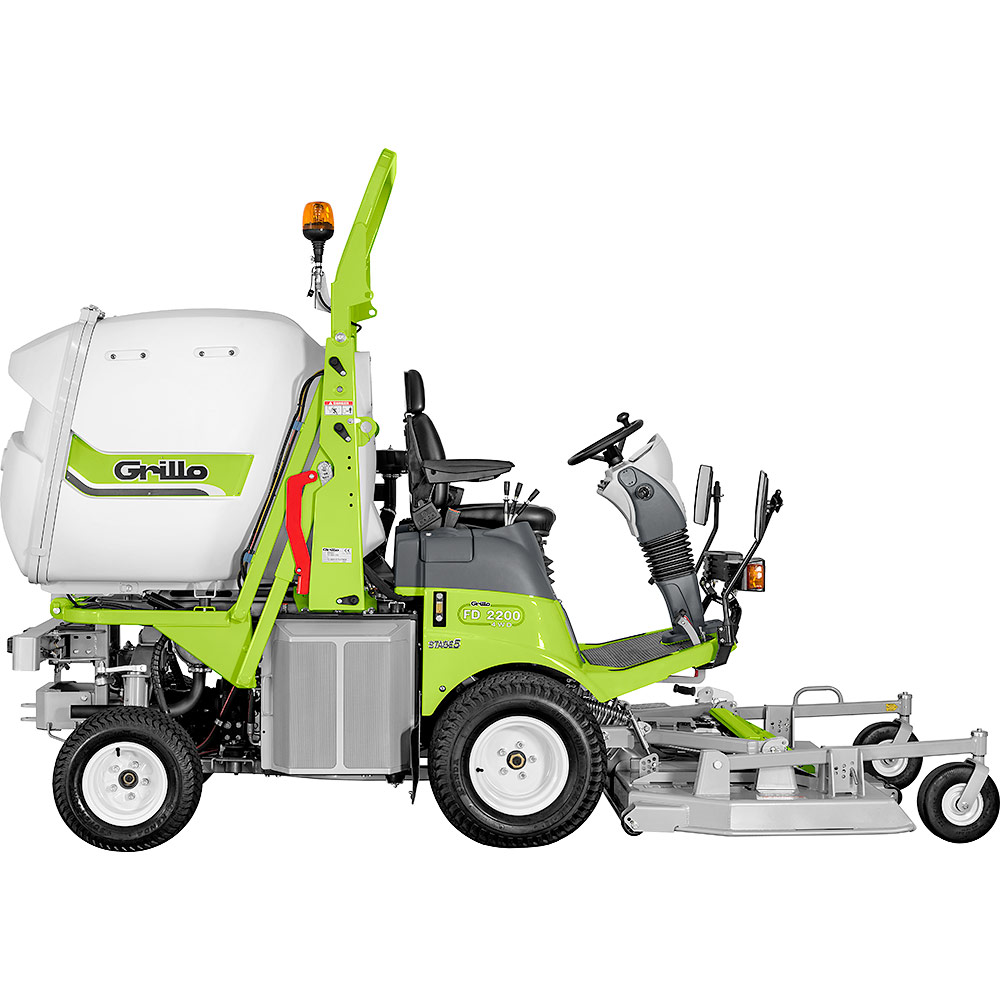

FD 2200 Stage5 4WD

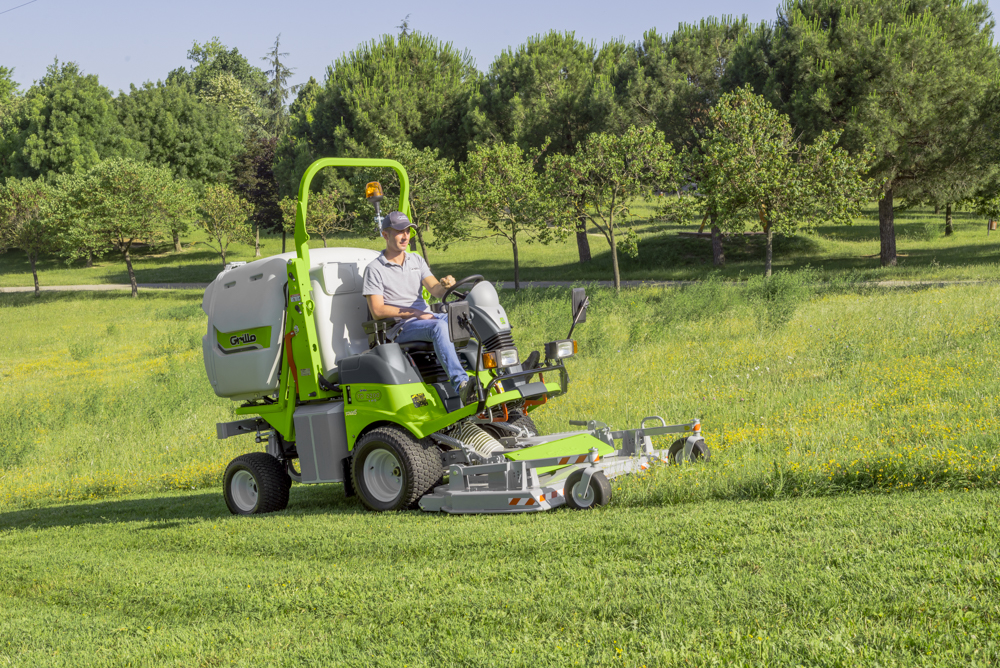

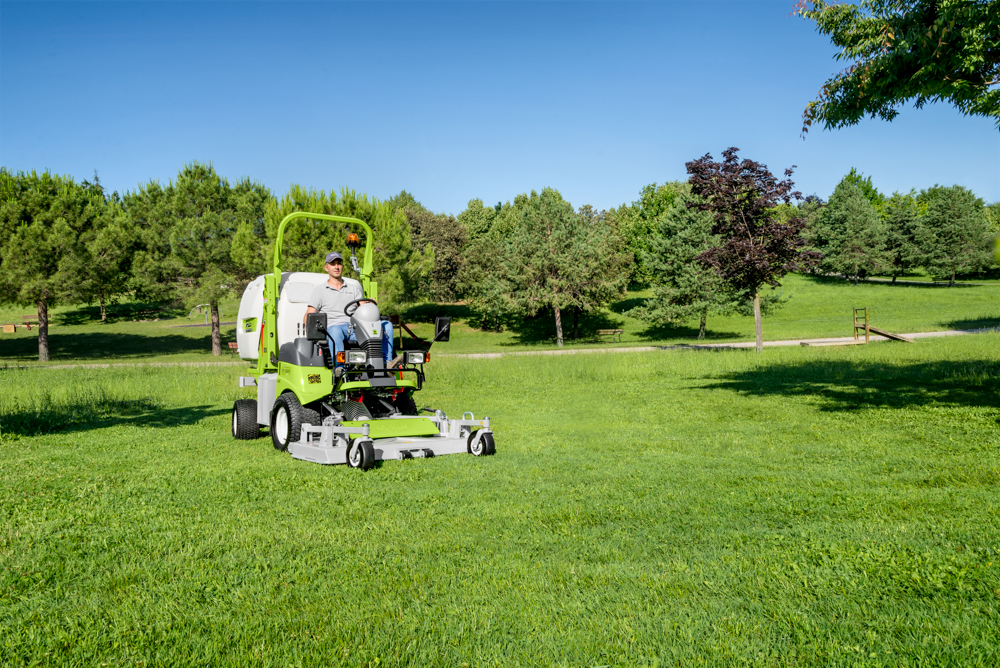

The Grillo FD2200 4WD permanent mower, with front deck, raised discharge grass catcher and a turning radius of only 62 cm, is maneuverable and stable on slopes!
The engine is the latest-generation, powerful and reliable, has low pollutant emissions and meets international STAGE 5 standards.

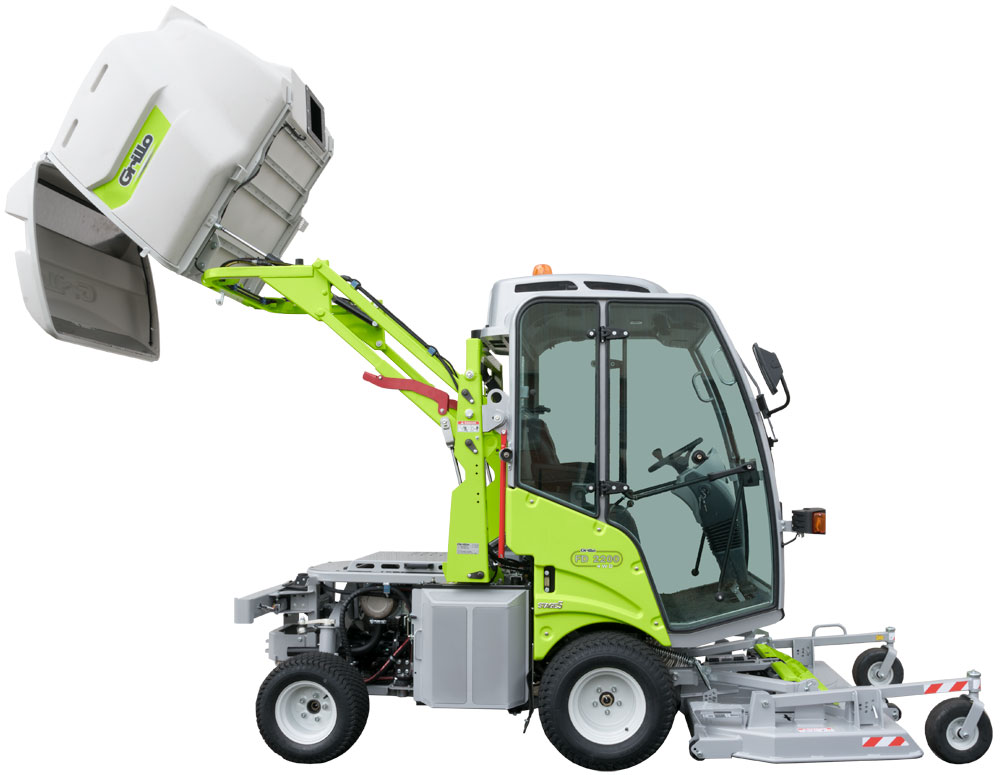

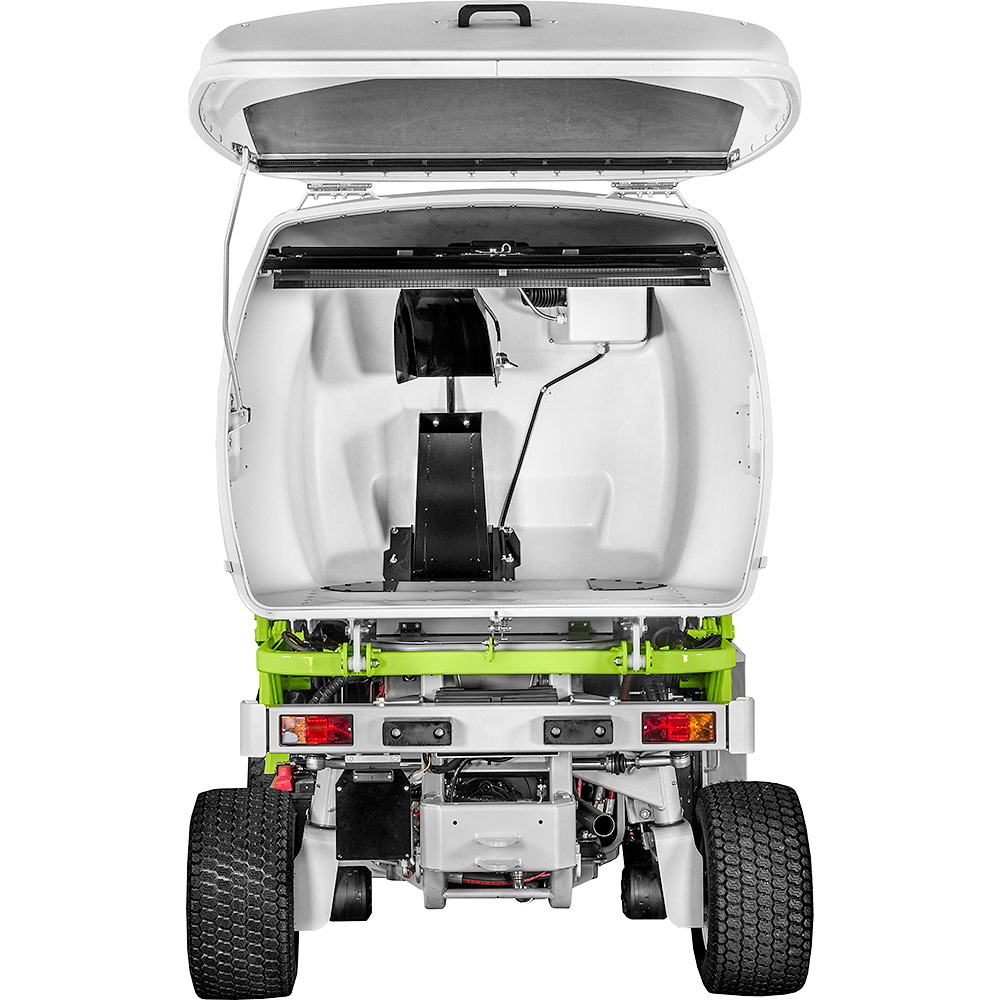

The most demanding greenskeeper looking for a quality cut will appreciate the qualities of the deck with collection combined with a powerful hydraulic loading turbine, the grass catcher has a capacity of 1200 L and the disengagement of the blades is automatic when the grass catcher is full.
|
Engine |

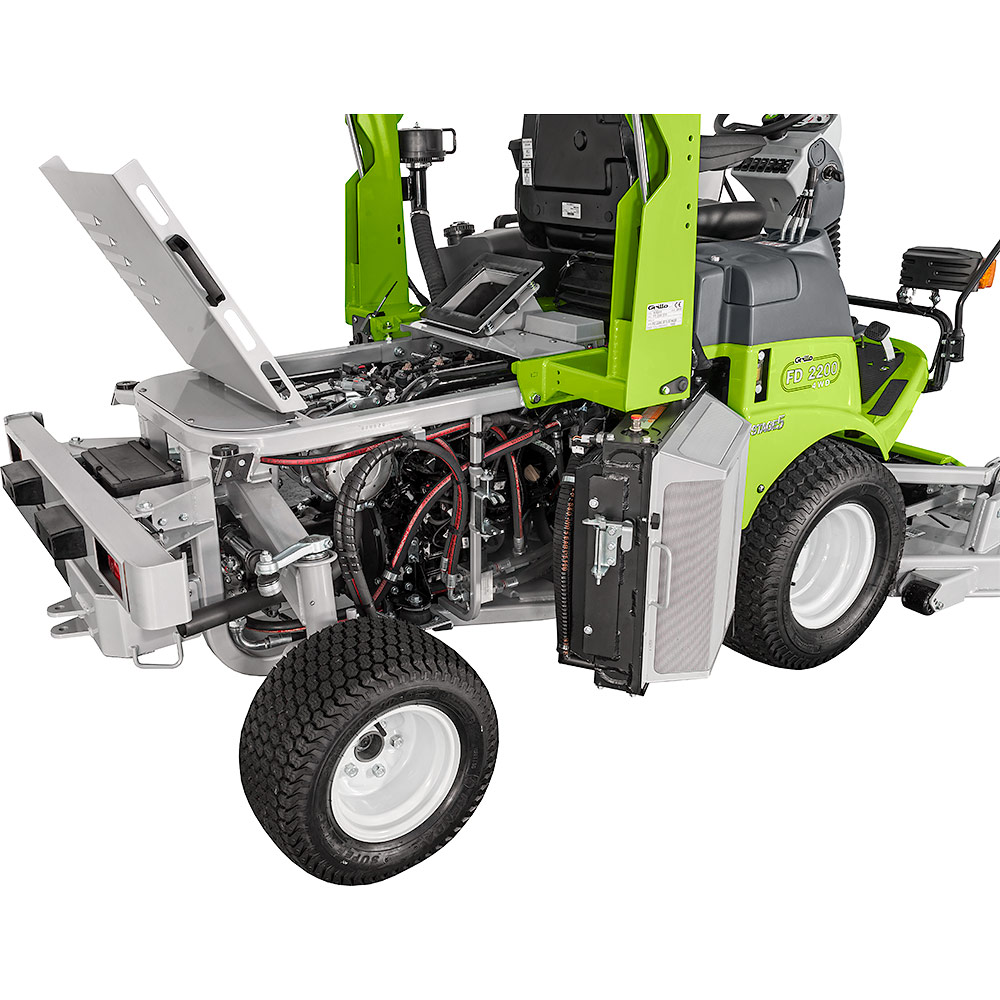

Yanmar 3TNV88C Stage5 Start electric, with 12 V battery Supply diesel Displacement 1642 cc, 3 Cylinders Power 37 HP (27.5 kW) Liquid cooled with electric impeller and equipped with automatic radiator cleaning device Dry air filter with interchangeable filter cartridges, safety filter and prefilter |
|
Fuel tank capacity | 50 L |
| Hydraulic oil tank | 25 L | |
|
Traction | hydraulic, 4 wheel drive (permanent even with narrow turning radius) |
| Gearbox | hydrostatic transmission with hydraulic motors on the 4 wheels | |
| Clutch | Hydraulic with electric control activated through PTO with blade brake | |
|
Cutting height | Adjustable at 25 - 35 - 50 - 60 - 75 - 85 - 95 - 110 mm |
|
Grass collector capacity | 1200 L |
| Grass catcher charging system | Charging turbine, 400 mm diameter, equipped with a hydraulic engine as well as a safety valve in order to avoid accidental damages. Independent activation from the cutting deck. Grass catcher equipped with motorised baffle inside the for even filling. | |

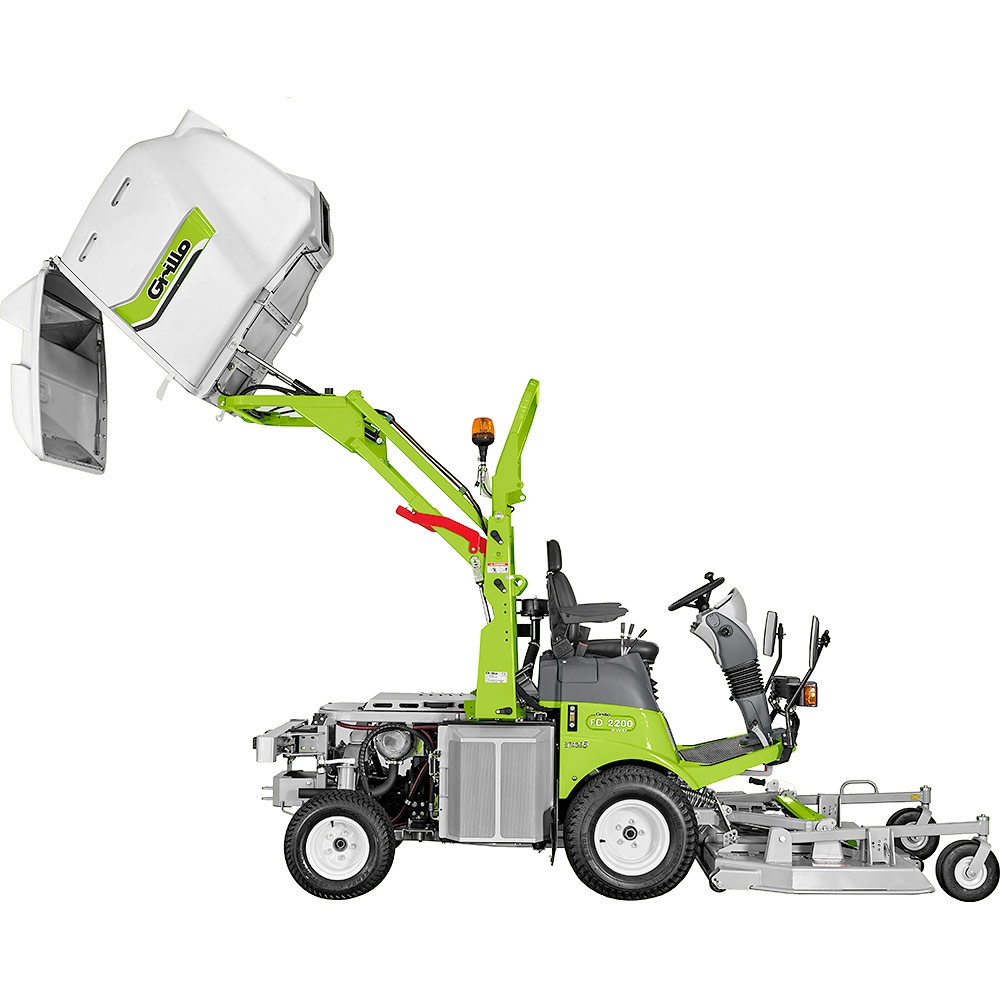

| Grass collector discharging system | Hydraulic grass catcher emptying with automatic opening | |
| Maximal discharging height | 230 cm | |
| Rear projection | 30 cm | |
|
Differential locking | Self-engaging and manual by pushing the button |
|
Front tyres | Turf 24x12.00-12 |
| Rear tyres | Turf 20x10.00-10 | |
| Steering system | Hydro-steer | |
| Speed | Continuously variable from 0 to 20 km/h | |
| Inner turning radius | 62 cm | |

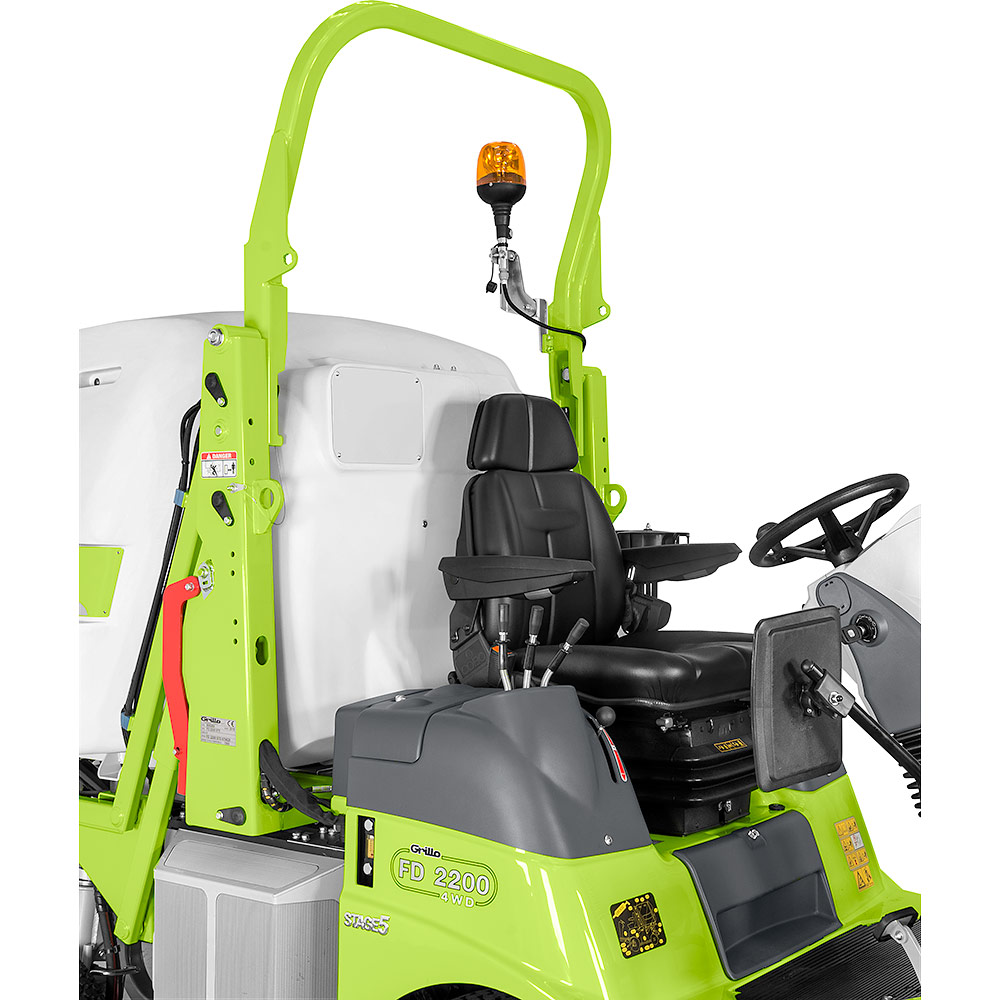

| Seat | Comfortable seat equipped with springs with arm-rests and adjustable | |
|
Mowing capacity per hour (indicative) | 15500 m^2/h |
| Standard features | Automatic disengagement of blades and turbine when the grass catcher is full. Hydraulic cutting deck lifting and emptying. Lights and indicator kit | |
|
Length | 261 cm without cutting deck - 347 cm with cutting deck [cod. 9L9611] |
| Width | 138 cm without cutting deck - 162 cm with cutting deck [cod. 9L9611] | |
| Height | 183 cm with the roll bar let down – 243 cm with roll bar or cabin | |
| Distance between axles | 126 cm | |
| Clear span from the ground | 16 cm | |
|
Weight | 1270 kg without cutting deck - 1490 kg with cutting deck [cod. 9M6711] |

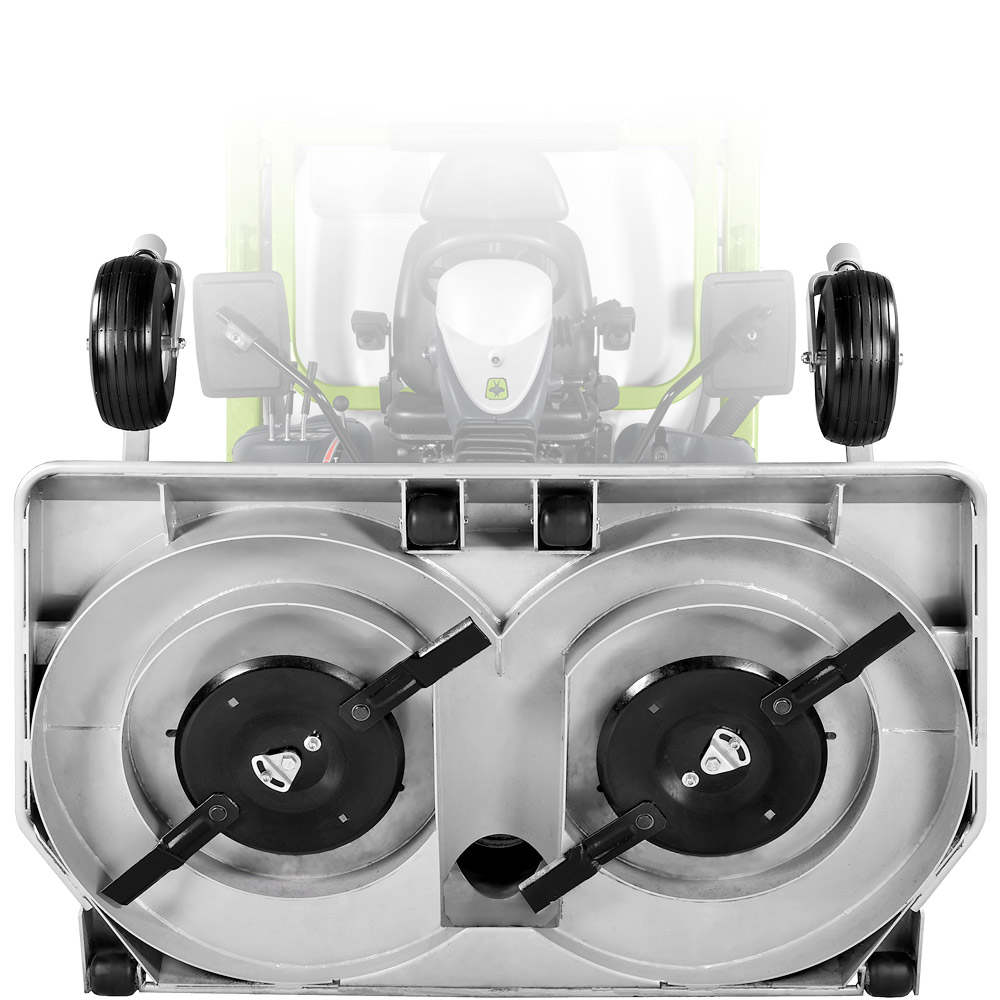

Cutting deck 155 cm with collection and mulching kit
to be applied on FD 2200 Stage5 4WD
item no.: 9M6711
weight: 220 kg

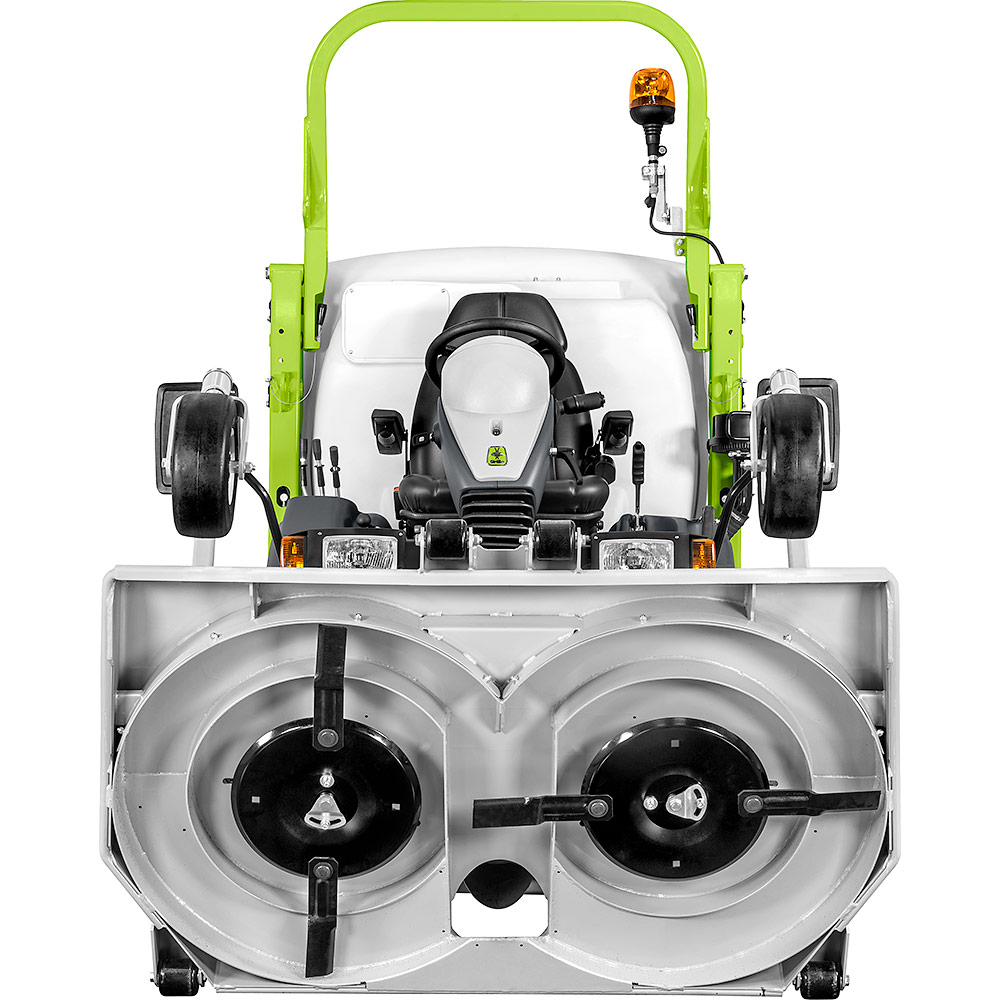

The 155 cm cutter deck is equipped with two contra-rotating disks with two swing back shock-resistant tips.
It is appropriate for the cut of medium sized and large domestic and public areas, such as parks and gardens.
The cutting height adjustment is made by acting on the pins in 4 points.
The mulching kit is part of the standard equipment and ensures grinding the grass without collecting it.
The deck's transmission is particularly silent thanks to Grillo's right angle gearboxes.
The cutter deck's front wheels are all anti-puncture treated.
The reinforced cutter deck is protected in areas exposed to wear and has a perimeter shock-resistant protection; the blade hubs are fitted with dust-proof protections.

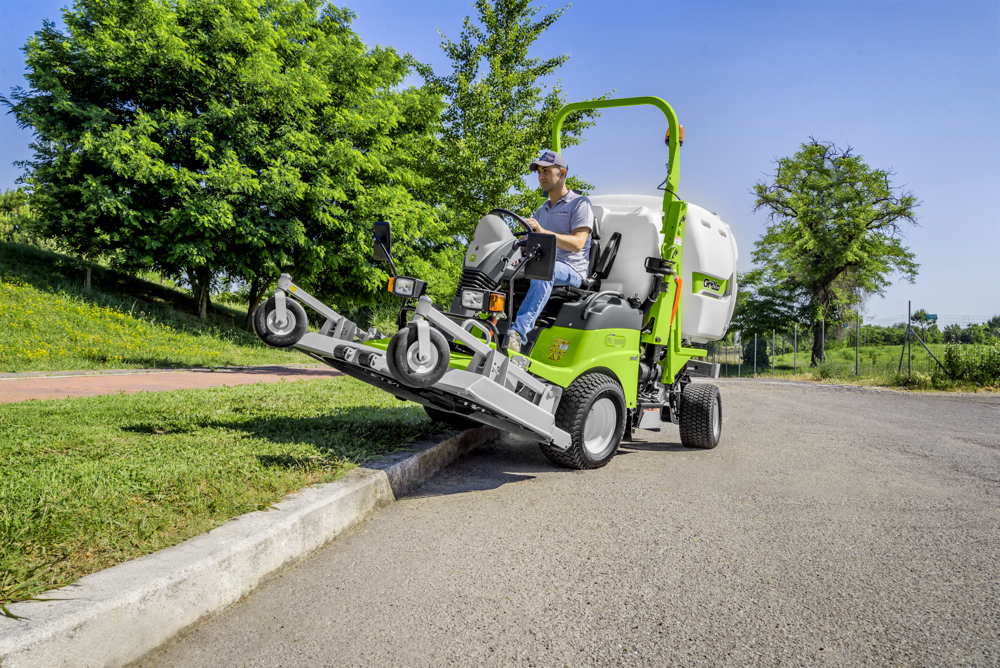

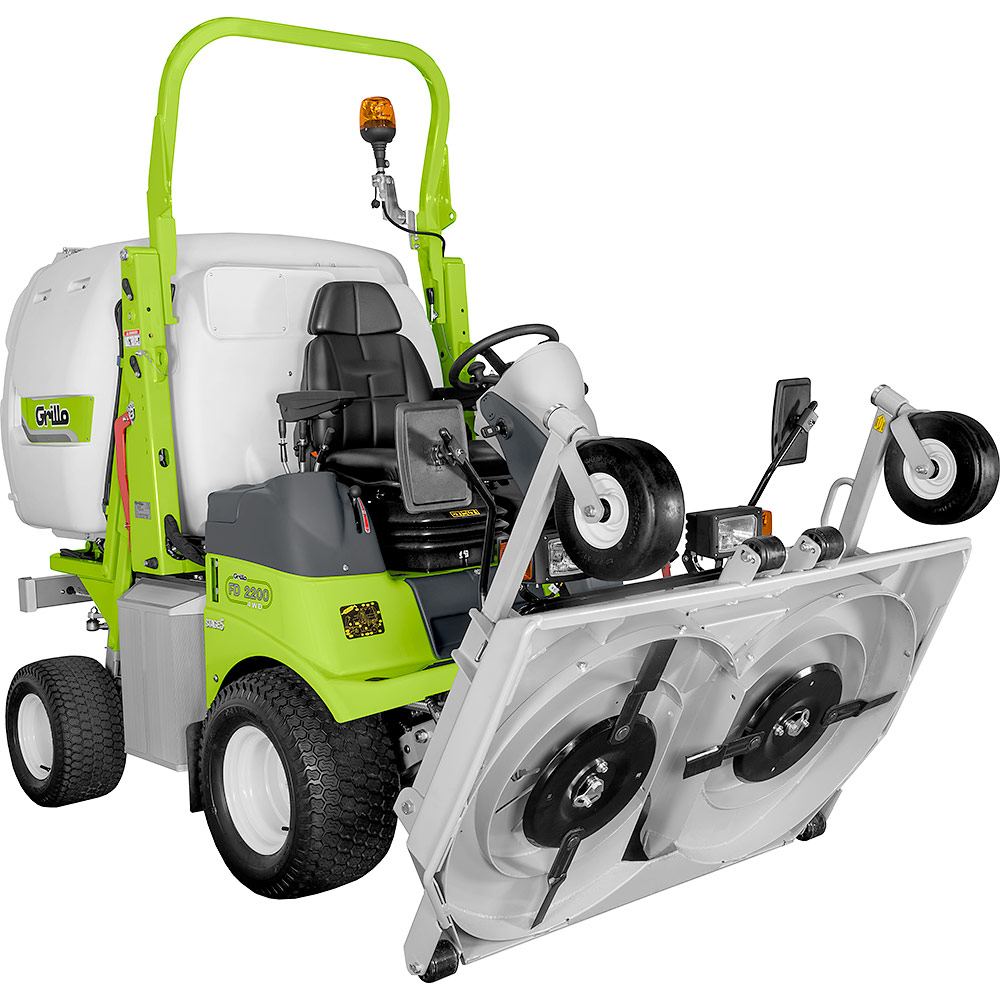

The whole cutter deck can be lifted up and be easily tilted back for inspection, transport and maintenance without the need to disassemble neither the load chute nor the cardan joint.

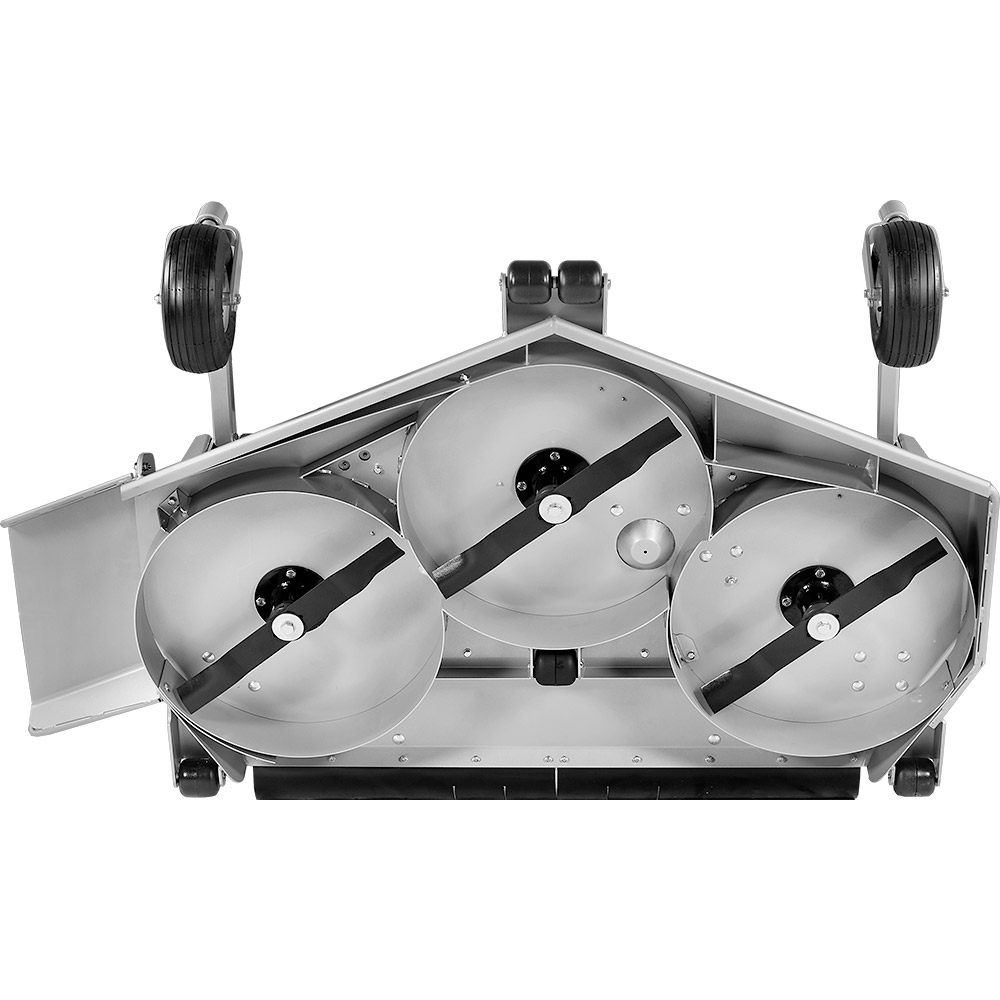

Cutting deck LMP 160 cm
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9M4511
weight: 170 kg
Three functions:
- side discharge
- mulching
- rear discharge

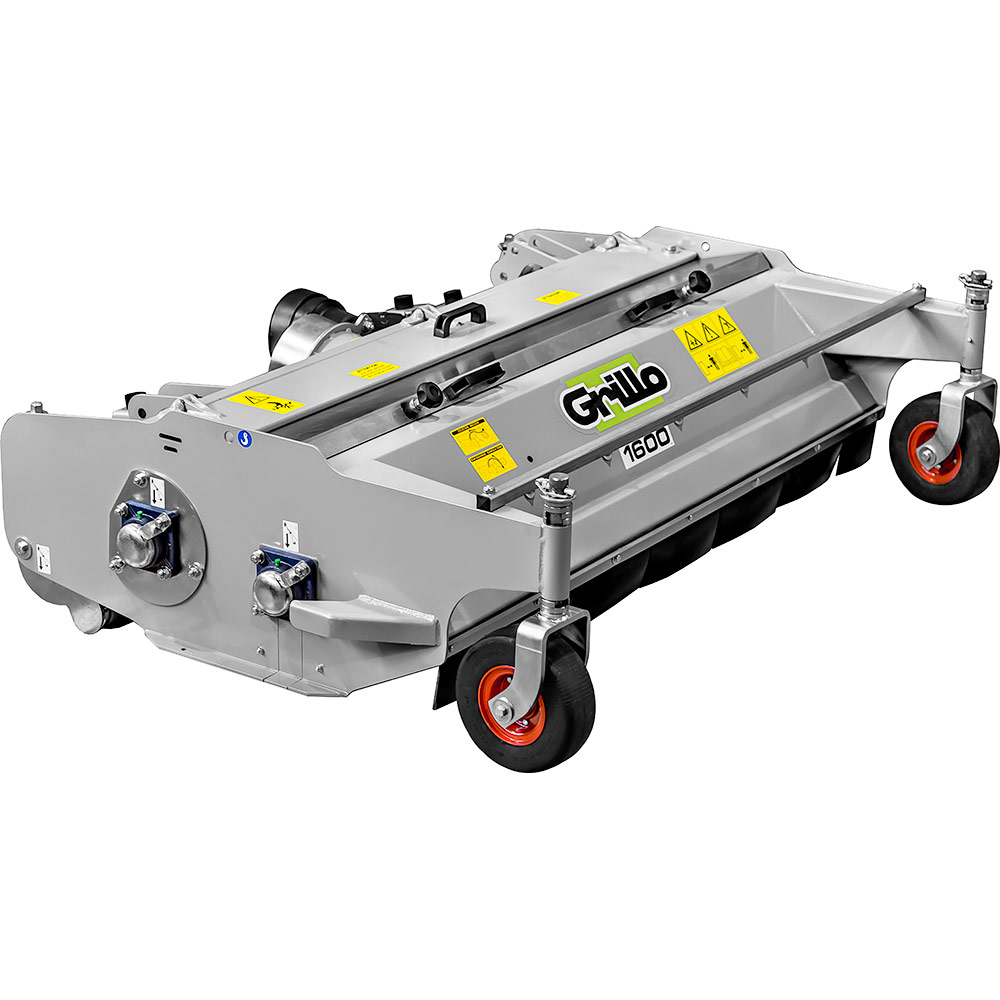

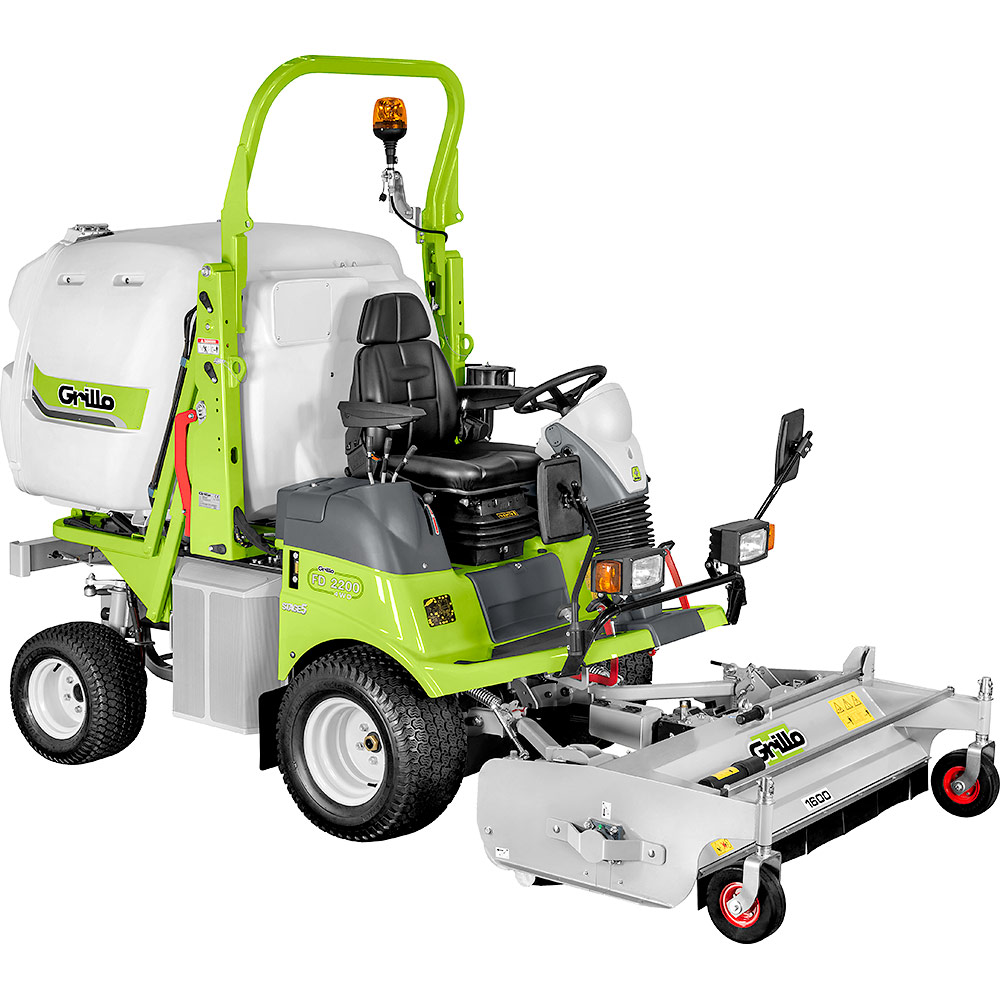

All purpose flail 160 cm
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G5711
weight: 240 kg

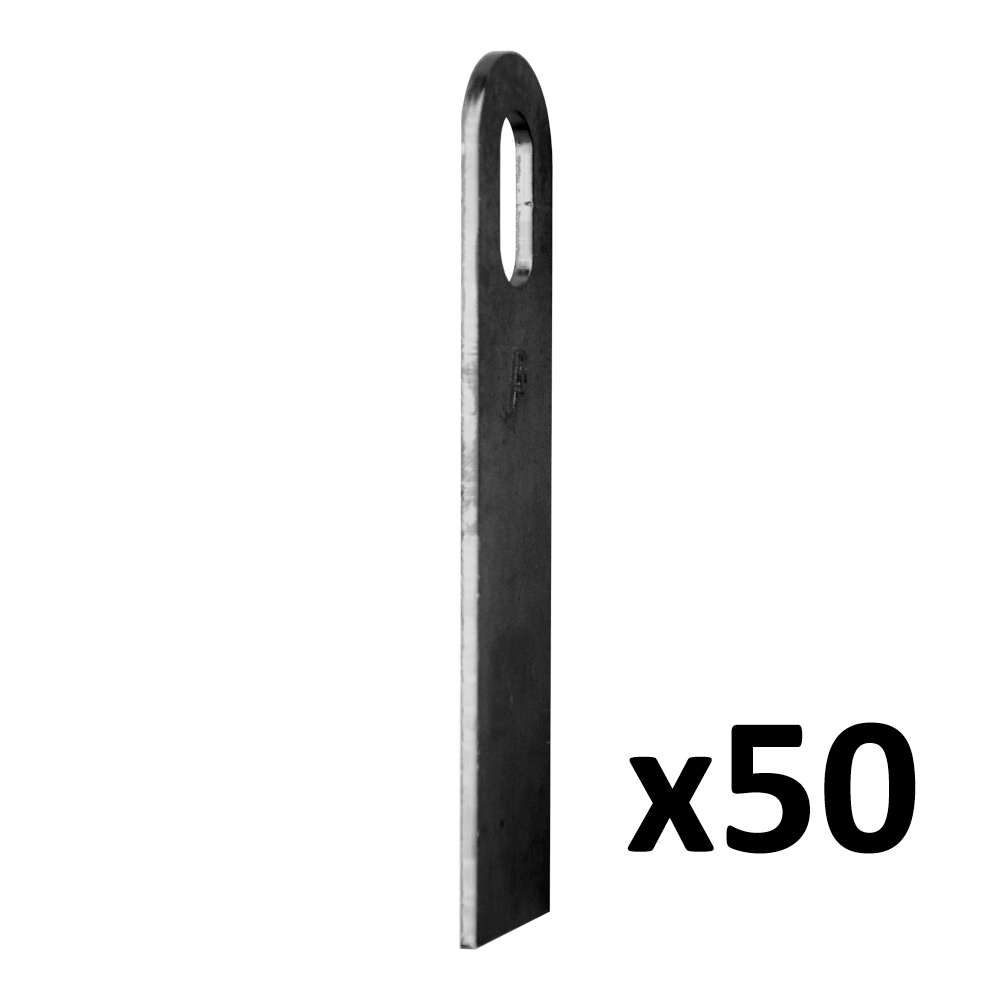

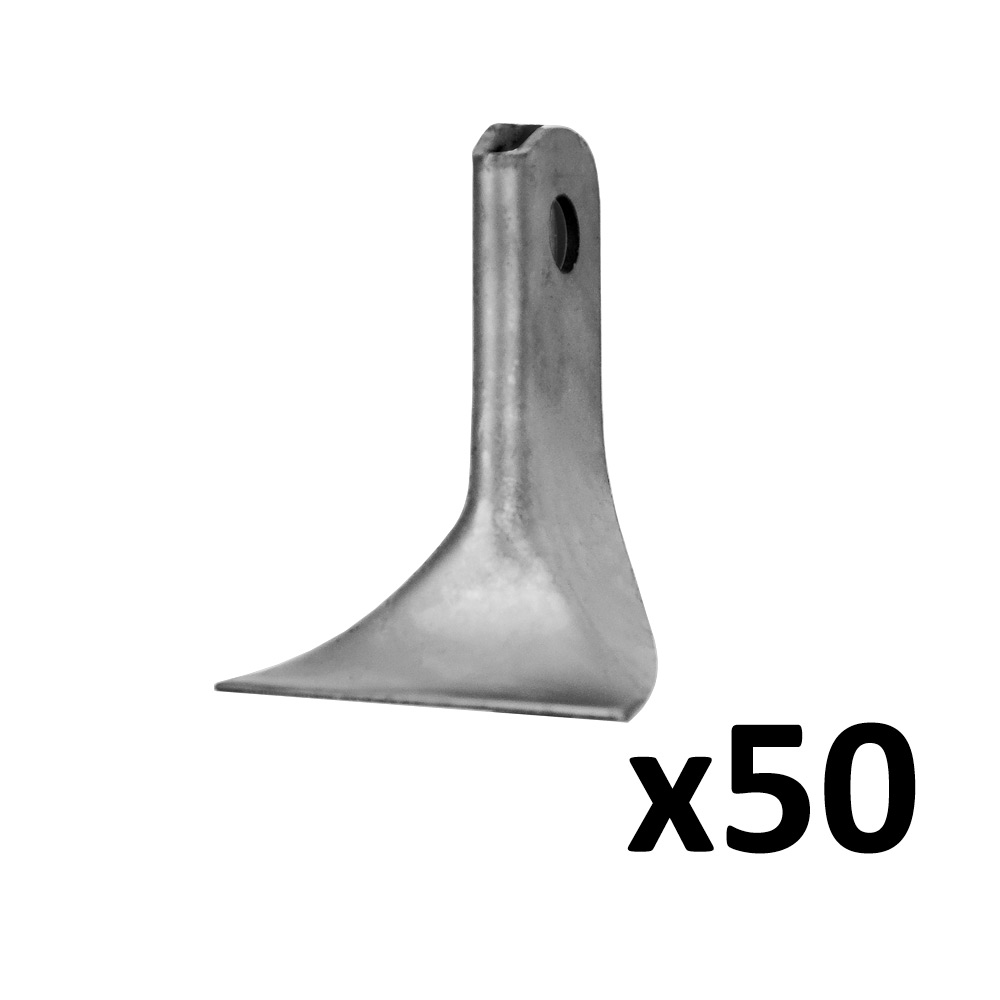

Blades scarifier Kit
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G5822
weight: 4.5 kg

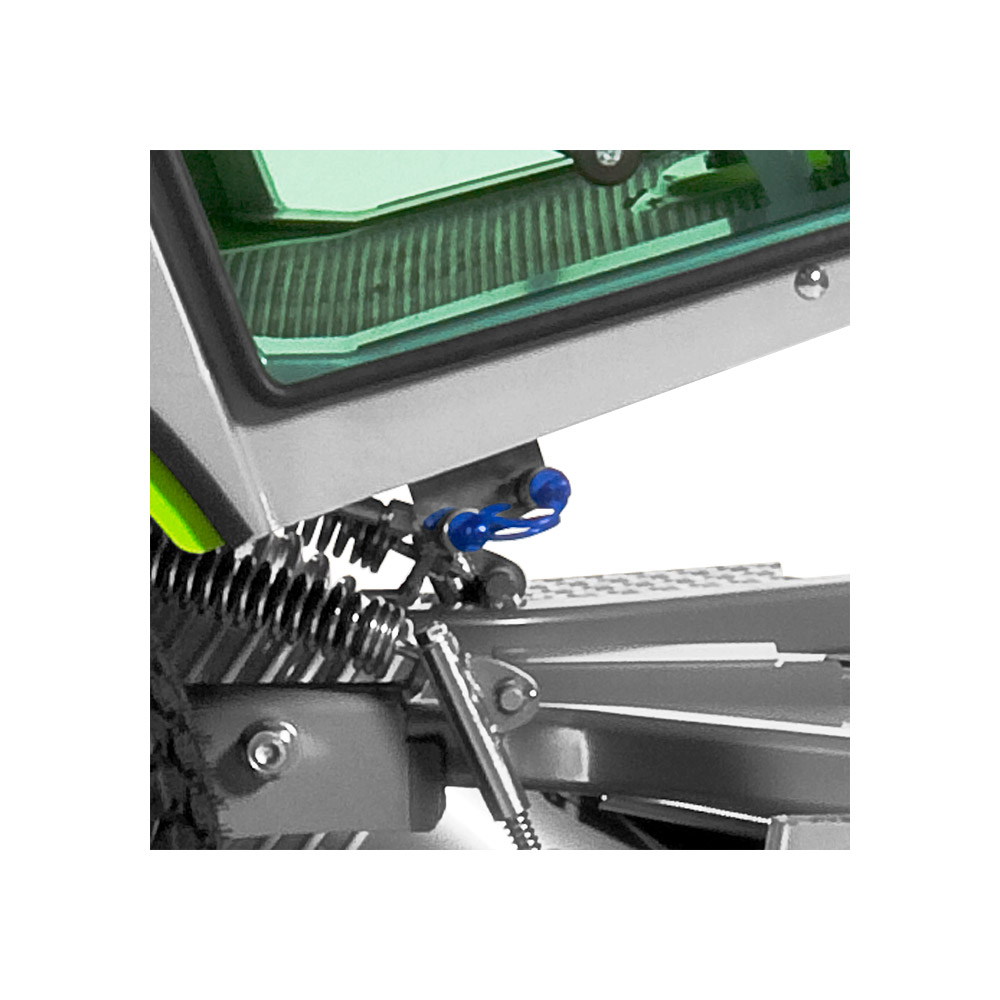

Hydraulic kit for accessories FD2200
to be applied on FD 2200 Stage5 4WD
item no.: 9B6712
weight: 7 kg
The hydraulic kit allows the connection of different implements to quick couplings.

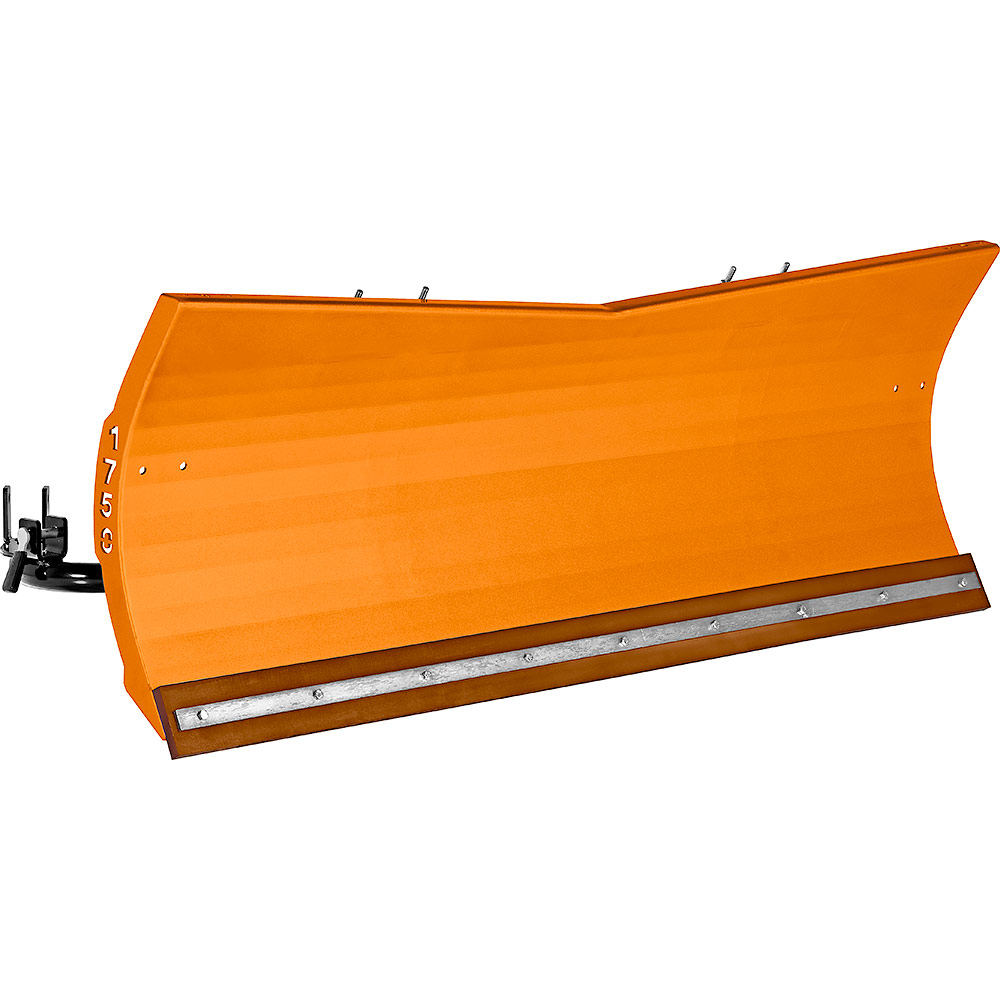

Front blade 175 cm with rubber end (for FD 2200 cod. 9B6712 needed)
to be applied on FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G0822
weight: 200 kg

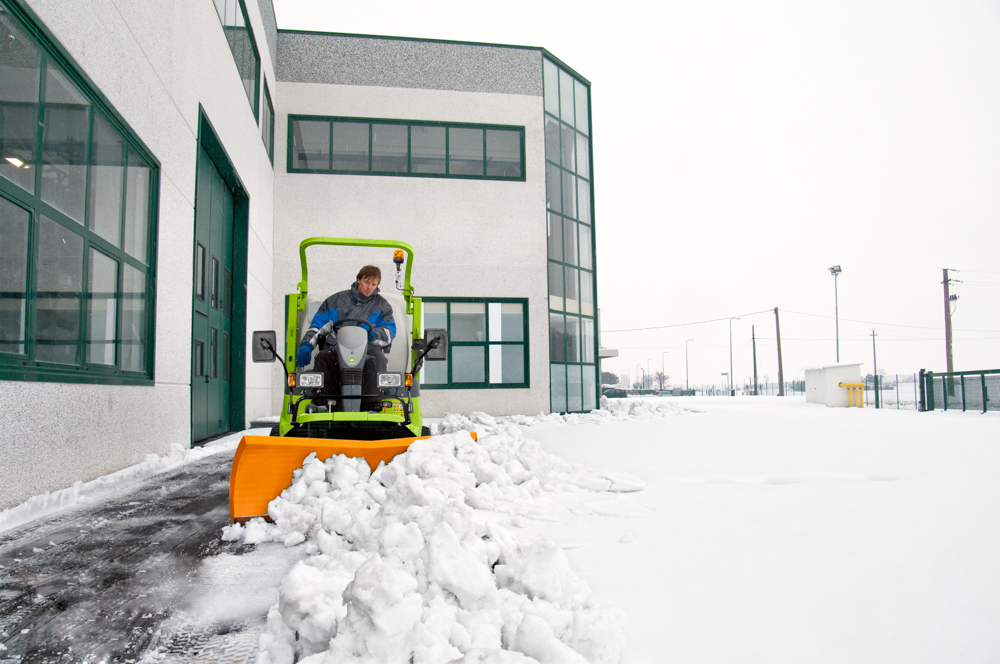

The orientable front blade allows to rapidly free pathways from snow and ice; it's also useful for removing stone piles or sand heaps.
All blade's movements are hydraulically controlled; the blade can be lifted up and inclined laterally + / - 30°.
The rubber end helps avoiding damages on stone pavings and streets.
Hydraulic kit is needed with this implement.

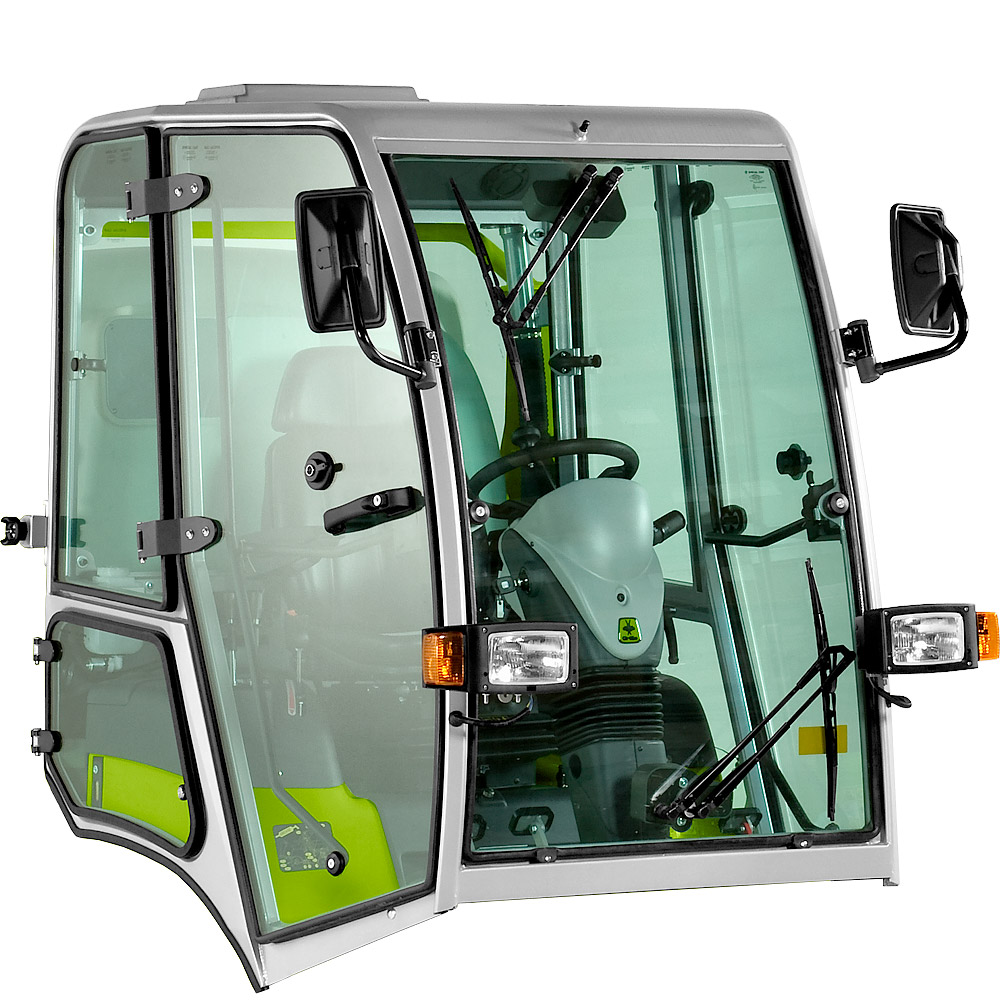

Comfort cabin with heating FD2200
to be applied on FD 2200 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 950012
weight: 180 kg
The comfort cabin is equipped with anti-condensation heating system and it ensures a great visibility on the area to be cut.
The equipment includes windscreen wipers, windows as well internal and external safety closing

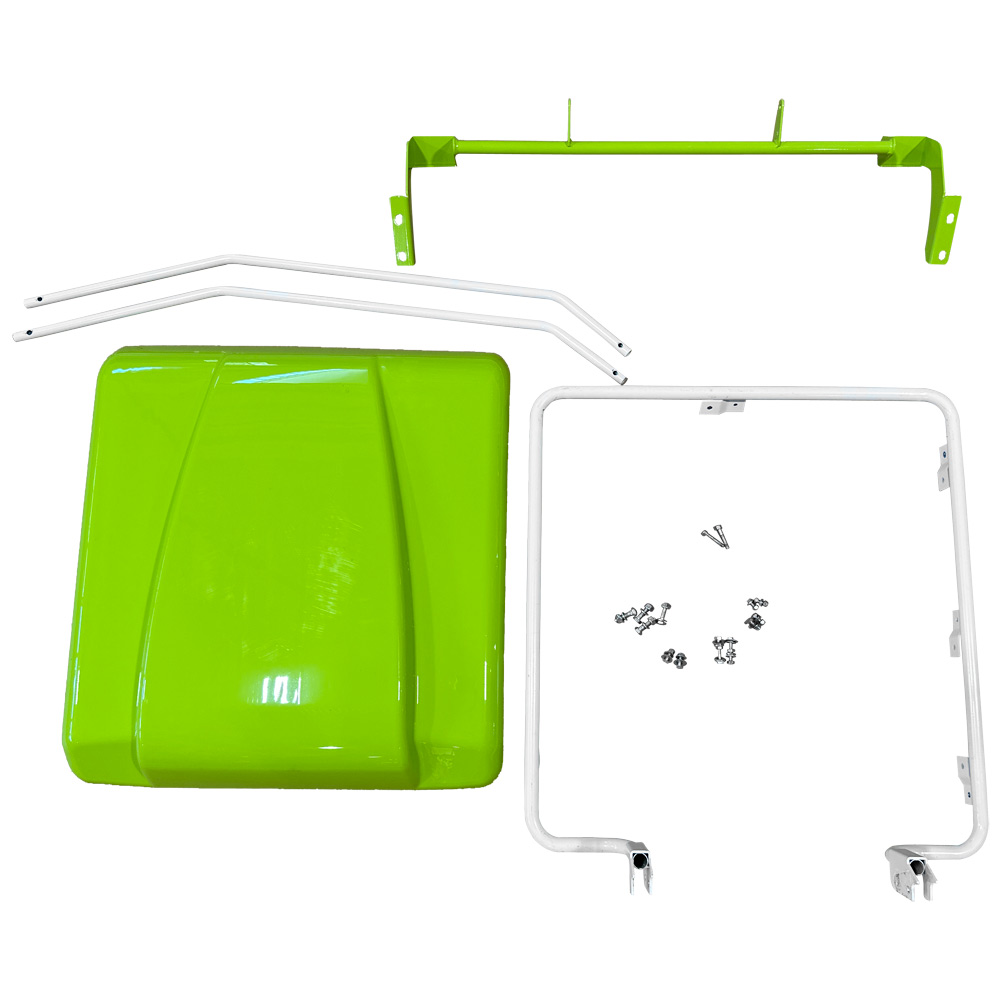

to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G7122
weight: 9 kg
All purpose flail 160 cm with collection new
to be applied on FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD
item no.: 9G8811
weight: 270 kg
